DURKOPP ADLER 867-M Premium - Locking the Machine in Place; Assembling the Handwheel Flange

Integrated motor
98 Service Instructions 867-M PREMIUM - 03.0 - 05/2017
To place the cover:
1. Position the cover (2) at the side.
2. Tighten the screws (1).
19.3.5 Locking the machine in place

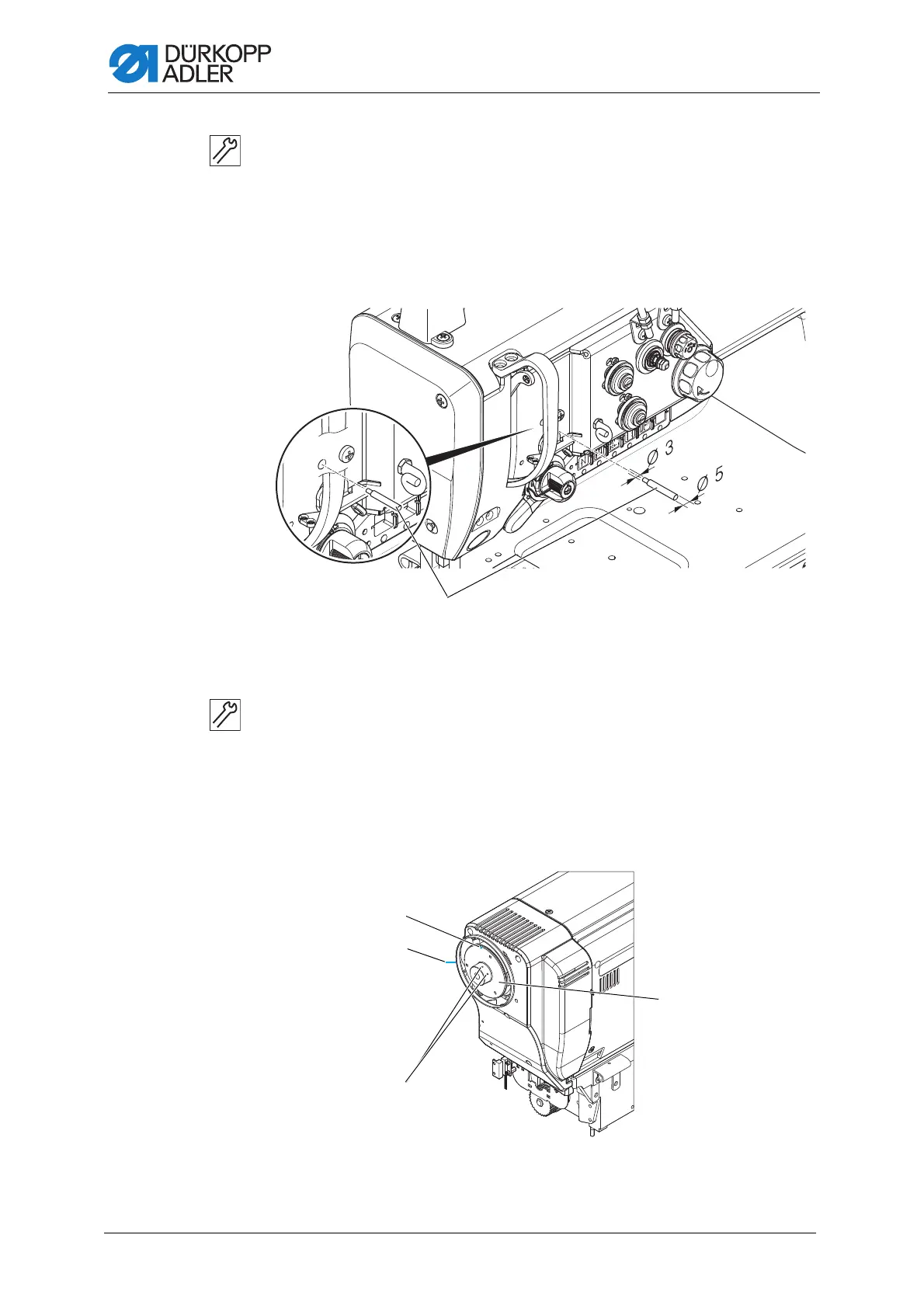

Fig. 86: Locking the machine in place
To lock the machine in place:
1. Lock the machine in place using the locking peg (1) (Ø 3 mm).
 The needle is in the top dead center position.
19.3.6 Assembling the handwheel flange
Fig. 87: Assembling the handwheel flange
(1) - Locking peg
①
o
(1) - Handwheel flange marking
(2) - Cover marking
(3) - Threaded pins
(4) - Handwheel flange
①
③
④
②
