Integrated motor

94 Service Instructions 867-M PREMIUM - 03.0 - 05/2017

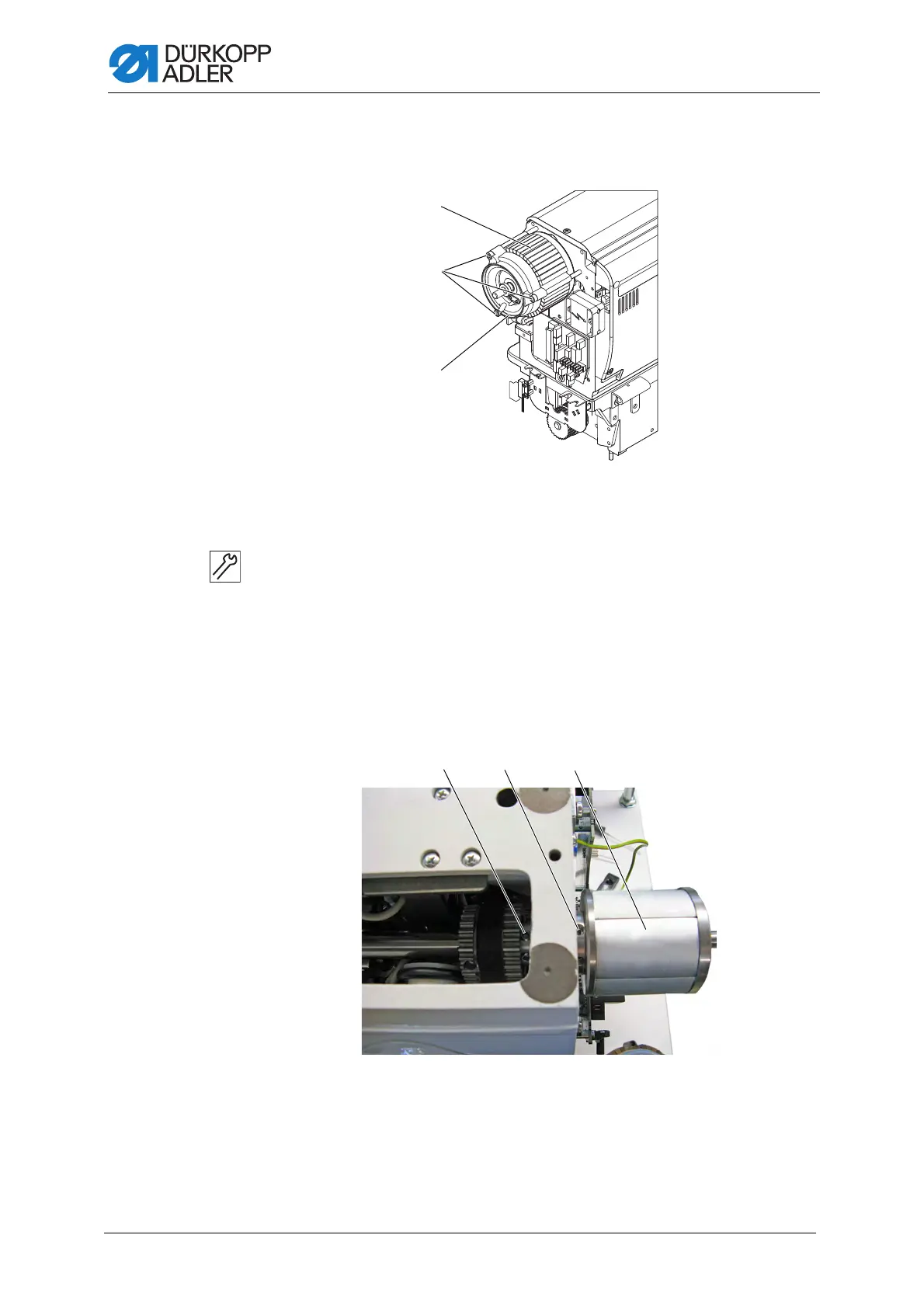

19.2.4 Disassembling the stator

Fig. 80: Disassembling the stator

To disassemble the stator:

1. Loosen the screws (2).

2. Remove the cover plate (3).

3. Remove the stator with ring (1).

19.2.5 Disassembling the rotor

Fig. 81: Disassembling the rotor

(1) - Stator with ring

(2) - Screws

(3) - Cover plate

①

②

③

(1) - Threaded pins

(2) - Threaded pins

(3) - Rotor with deep groove ball bearing

①② ③
