Setting the safety snap-on coupling
Service Instructions 867-M PREMIUM - 03.0 - 05/2017 89
18 Setting the safety snap-on coupling
The safety snap-on coupling disengages in the event of the thread jamming
and thus prevents the hook from being misadjusted or damaged.
18.1 Attaching the safety snap-on coupling

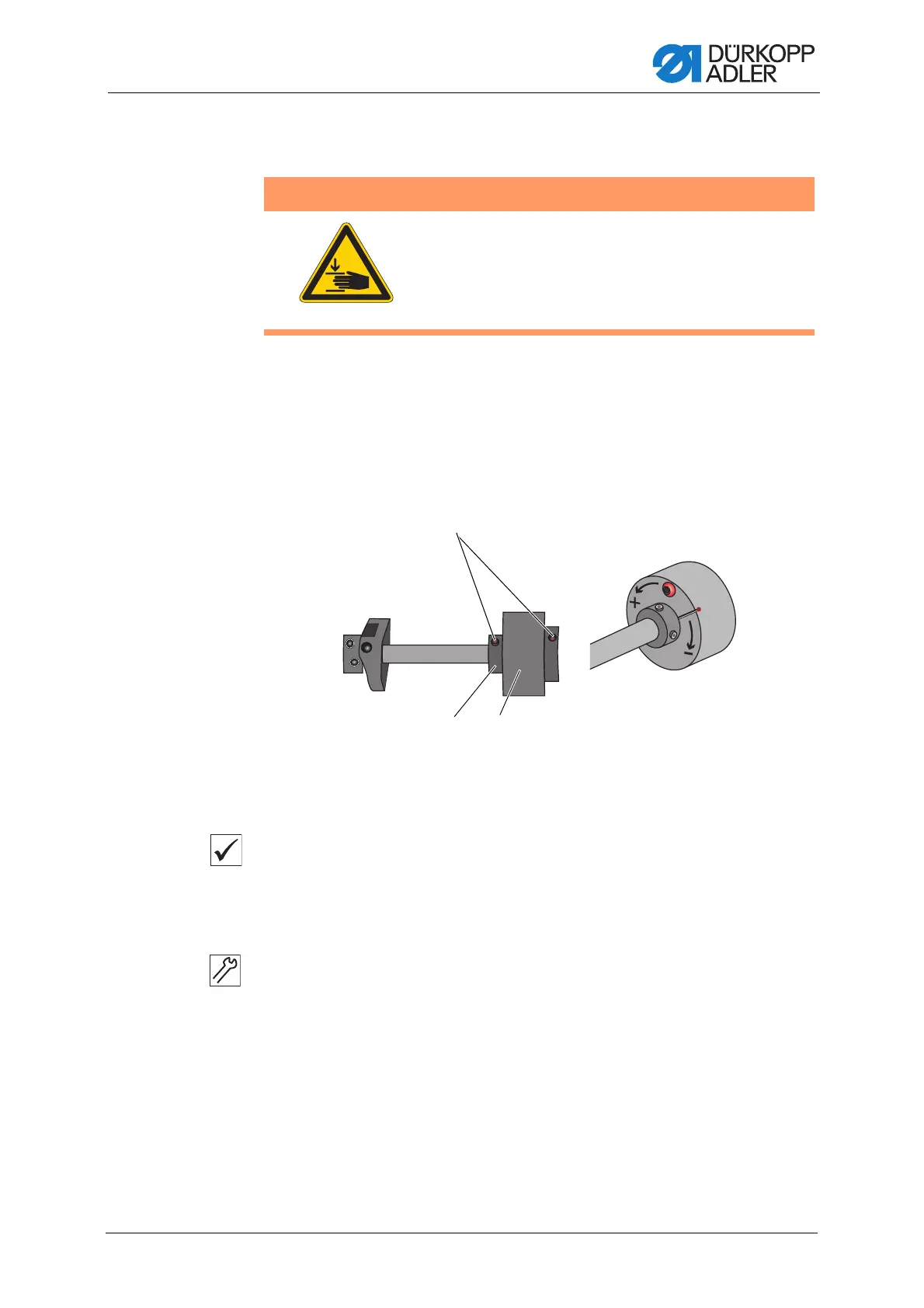

Fig. 74: Attaching the safety snap-on coupling
Proper setting
The 4 threaded pins (1) on the two adjusting rings next to the safety snap-
on coupling (3) must be parallel to one another. After the safety snap-on
coupling has disengaged, they are no longer parallel.
To latch the safety snap-on coupling:
1. Tilt the machine head ( p. 16).
2. Turn the left adjusting ring (2) such that the threaded pins (1) are par-
allel to one another.
 The safety snap-on coupling latches into place.
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before you set the safety
snap-on coupling.
(1) - Threaded pins
(2) - Left-hand adjusting ring
(3) - Safety snap-on coupling
①
②③
