Working basis

20 Service Instructions 867-M PREMIUM - 03.0 - 05/2017

3.4.5 Opening and closing the throat plate slide

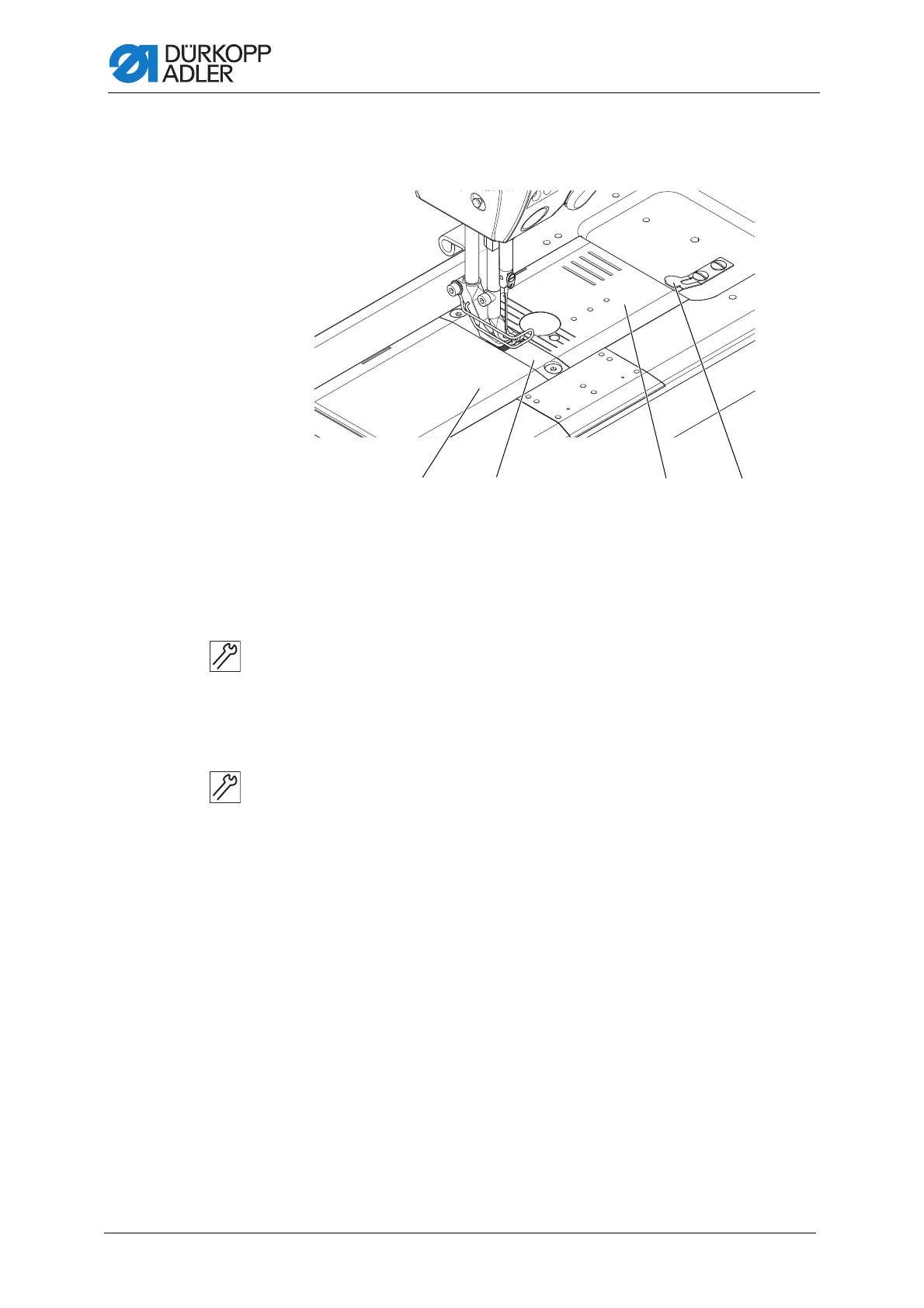

Fig. 9: Opening and closing the throat plate slide

Opening the throat plate slide

To open the throat plate slide:

1. Press the clamping spring (3) downwards.

2. Push the throat plate slide (1) apart.

Closing the throat plate slide

To close the throat plate slide:

1. Screw the throat plate slide (1) to the throat plate (2).

(1) - Throat plate slide

(2) - Throat plate

(3) - Clamping spring

①③①②

Default Chapter3
