Positioning the toothed belt wheels
Service Instructions 867-M PREMIUM - 03.0 - 05/2017 29
6 Positioning the toothed belt wheels
Proper setting
The two toothed belt wheels must be positioned above each other so that
the toothed belt can run correctly. The winder wheel is directly next to the
upper toothed belt wheel and determines its alignment.
Important
The position of the upper toothed belt wheel is defined by the distance to
the winder wheel.
Therefore, you must first align the upper toothed belt wheel on the winder
wheel and then align the lower toothed belt wheel so that the toothed belt
runs correctly over both wheels.
6.1 Positioning the upper toothed belt wheel

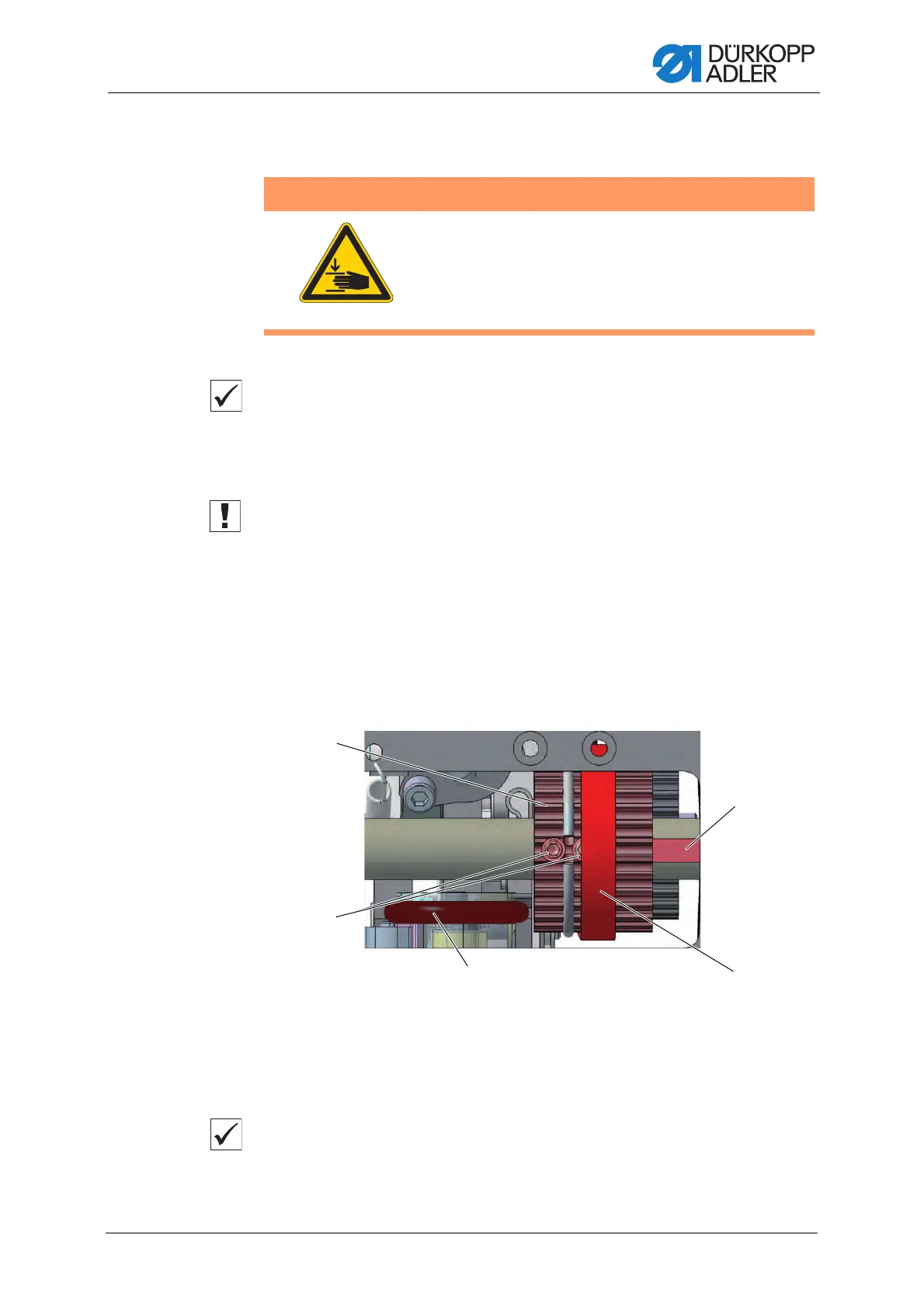

Fig. 18: Positioning the upper toothed belt wheel
Proper setting
The 2 threaded pins (2) for the upper toothed belt wheel (1) are seated
flush on the arm shaft (5).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before positioning the
toothed belt wheels.
(1) - Upper toothed belt wheel
(2) - Threaded pins
(3) - Winder wheel (position in machines
with normal lengths)
(4) - Toothed belt
(5) - Flat of arm shaft
