DURKOPP ADLER 867-M Premium - Assembling the Handwheel

Integrated motor
Service Instructions 867-M PREMIUM - 03.0 - 05/2017 99
To assemble the handwheel flange:
1. Attach the handwheel flange (4) so that the two markings (1), (2) are
in line.
2. Screw both threaded pins (3) firmly in place.
In doing so, make sure that there is a distance of approx. 0.5 - 1 mm
between the handwheel flange (4) and the cover plate.
19.3.7 Assembling the handwheel

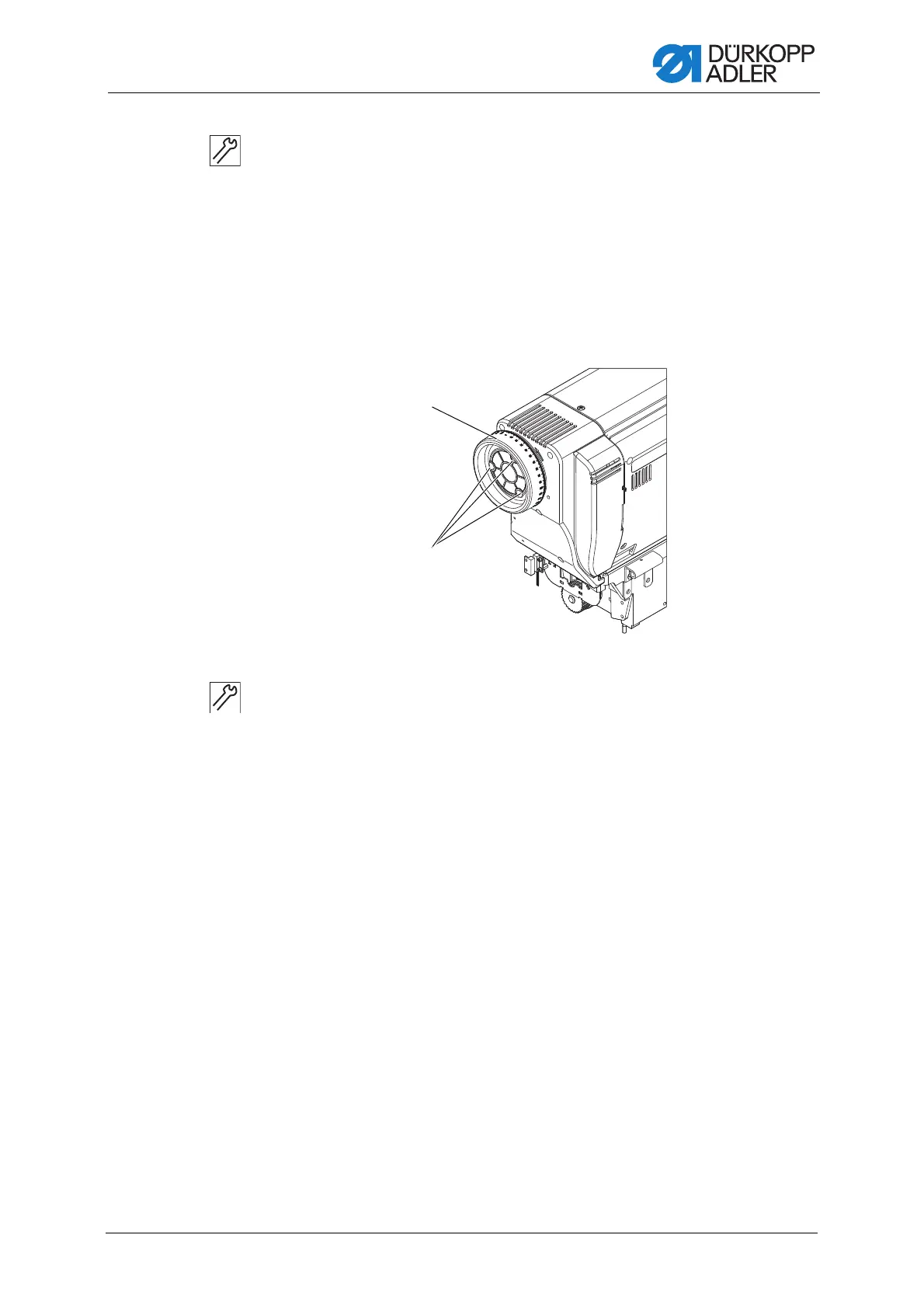

Fig. 88: Assembling the handwheel
To assemble the handwheel:
1. Attach the handwheel (1) and tighten all 3 screws (2).
2. Set the reference position via the control; see  DAC comfort Operating
Manual.
(1) - Handwheel (2) - Screws
①
②
