Integrated motor

96 Service Instructions 867-M PREMIUM - 03.0 - 05/2017

19.3.2 Assembling the stator

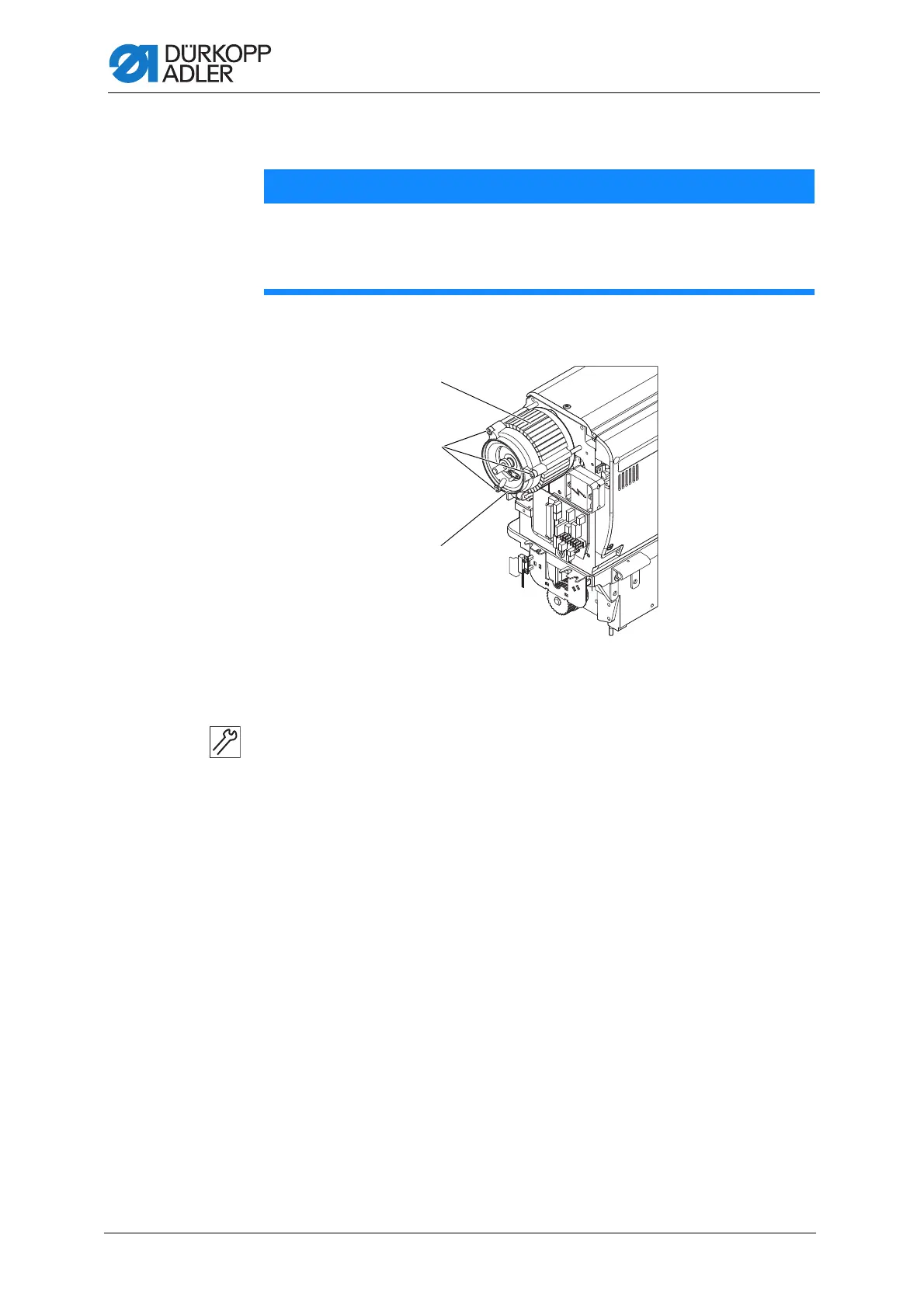

Fig. 83: Assembling the stator

To fit the stator:

1. Push the stator with ring (1) onto the shaft, paying attention to the ring

gap for the cable.

2. Fit the cover plate (3).

3. Evenly screw the screws (2) firmly in place so that a uniform gap exists

between the cover plate (3) and shaft.

NOTICE

Property damage may occur!

The stator can be attracted by applying magnetic force.

Work carefully and in a controlled manner.

(1) - Stator with ring

(2) - Screws

(3) - Cover plate

①

②

③
