Short thread cutter
78 Service Instructions 867-M PREMIUM - 03.0 - 05/2017
16.2 Setting the locking latch

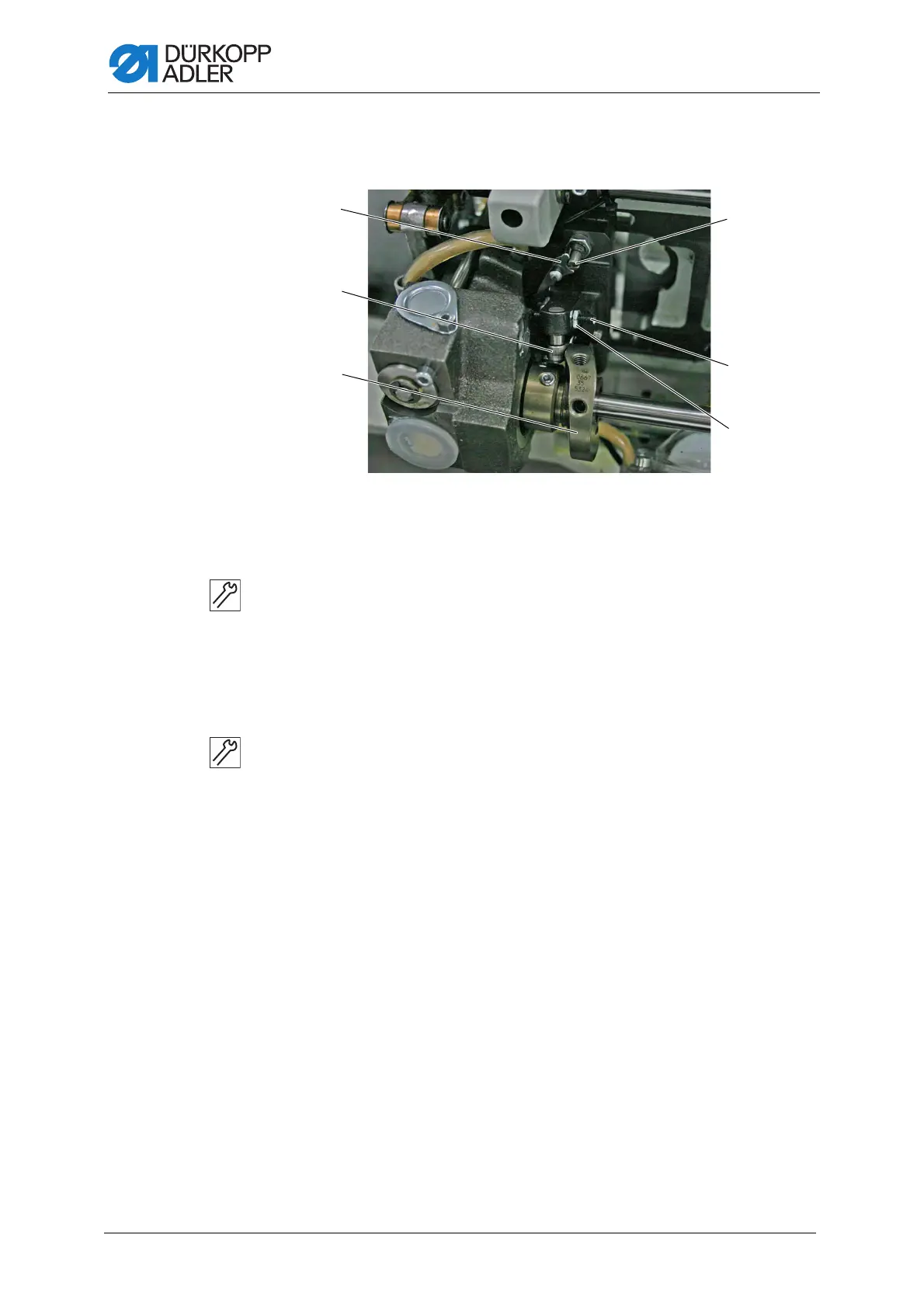

Fig. 65: Setting the locking latch
To set the locking latch:
1. Loosen the nut (4).
2. Turn the screw (5) and adjust the distance.
3. Tighten the nut (4).
Checking the setting of the locking latch
To check the setting of the locking latch:
1. Turn the handwheel until the roller (2) is at the highest point of the
control cam (3).
2. Press the roller (2) against the control cam (3).
The locking latch (1) can be swung out without clamping.
The distance between the locking latch (1) and locking pin (6) is not
greater than 0.1 mm.
(1) - Locking latch
(2) - Roller
(3) - Control cam
(4) - Nut
(5) - Screw
(6) - Locking pin
