Integrated motor

92 Service Instructions 867-M PREMIUM - 03.0 - 05/2017

19.2 Disassembling the drive

19.2.1 Disassembling the handwheel and handwheel flange

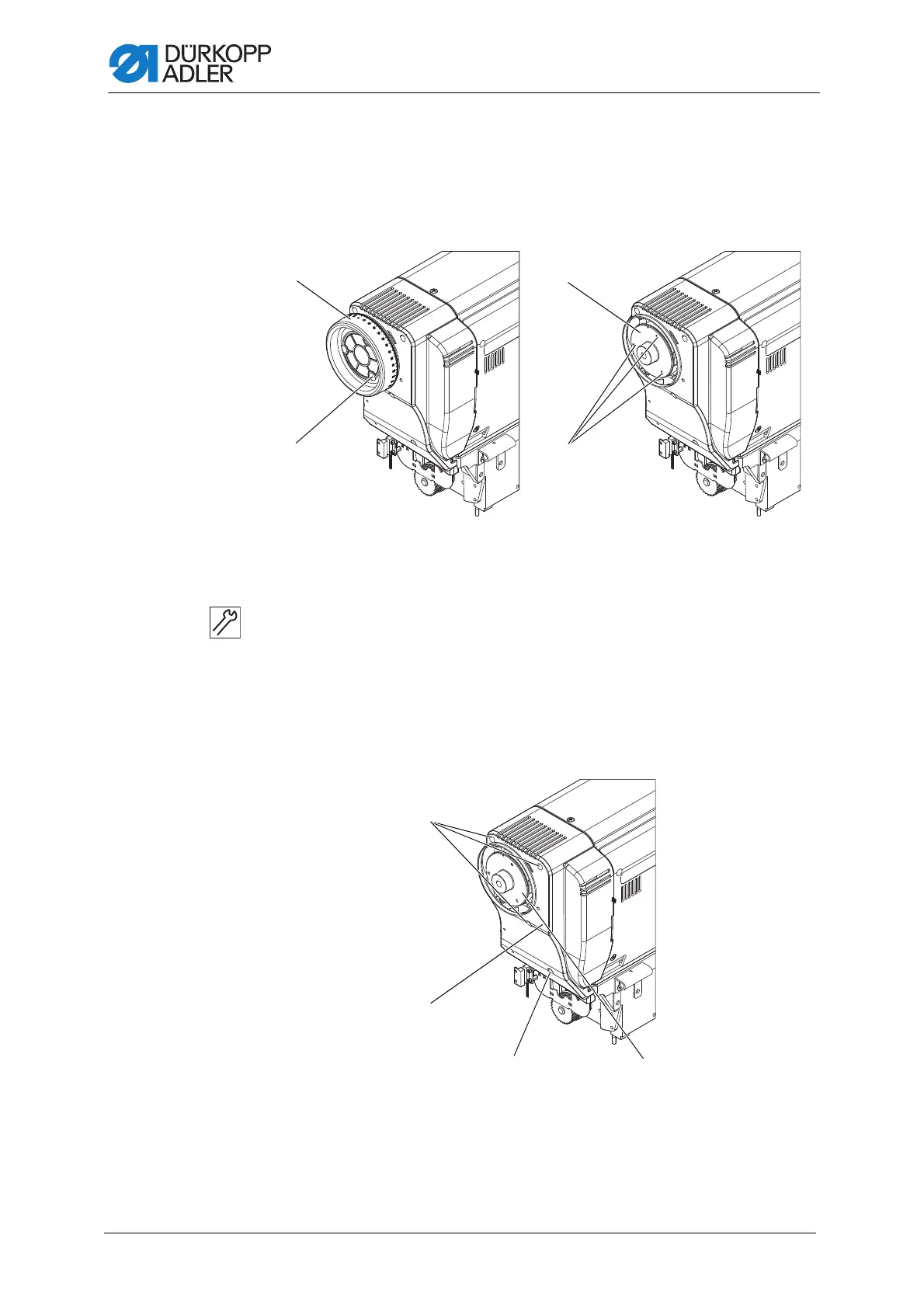

Fig. 77: Disassembling the handwheel and handwheel flange

To disassemble the handwheel and handwheel flange:

1. Loosen all 3 screws (2) on the handwheel (1).

2. Loosen all threaded pins (3) and remove the handwheel flange (4).

19.2.2 Removing the cover

Fig. 78: Removing the cover

(1) - Handwheel

(2) - Screws

(3) - Threaded pins

(4) - Handwheel flange

①

②

④

③

(1) - Screws

(2) - Cover

(3) - Handwheel flange

①

③

①

②
