Working basis
Service Instructions 867-M PREMIUM - 03.0 - 05/2017 25
Locking the machine in place
To lock the machine in place:
1. Remove the plug from the locking opening (4).
2. Turn the handwheel until the appropriate arresting groove (1) or (2) is
in front of the locking opening (4):
• Small arresting groove at handwheel position 0°
• Large arresting groove at handwheel position 200° – 205°
3. Insert the locking peg (3) with the appropriate end into arresting
groove (1) or (2).
Removing the lock
To remove the lock:
1. Pull the locking peg (3) out of arresting groove (1) or (2).
2. Insert the plug into the locking opening (4).
3.7 Setting the handwheel into position

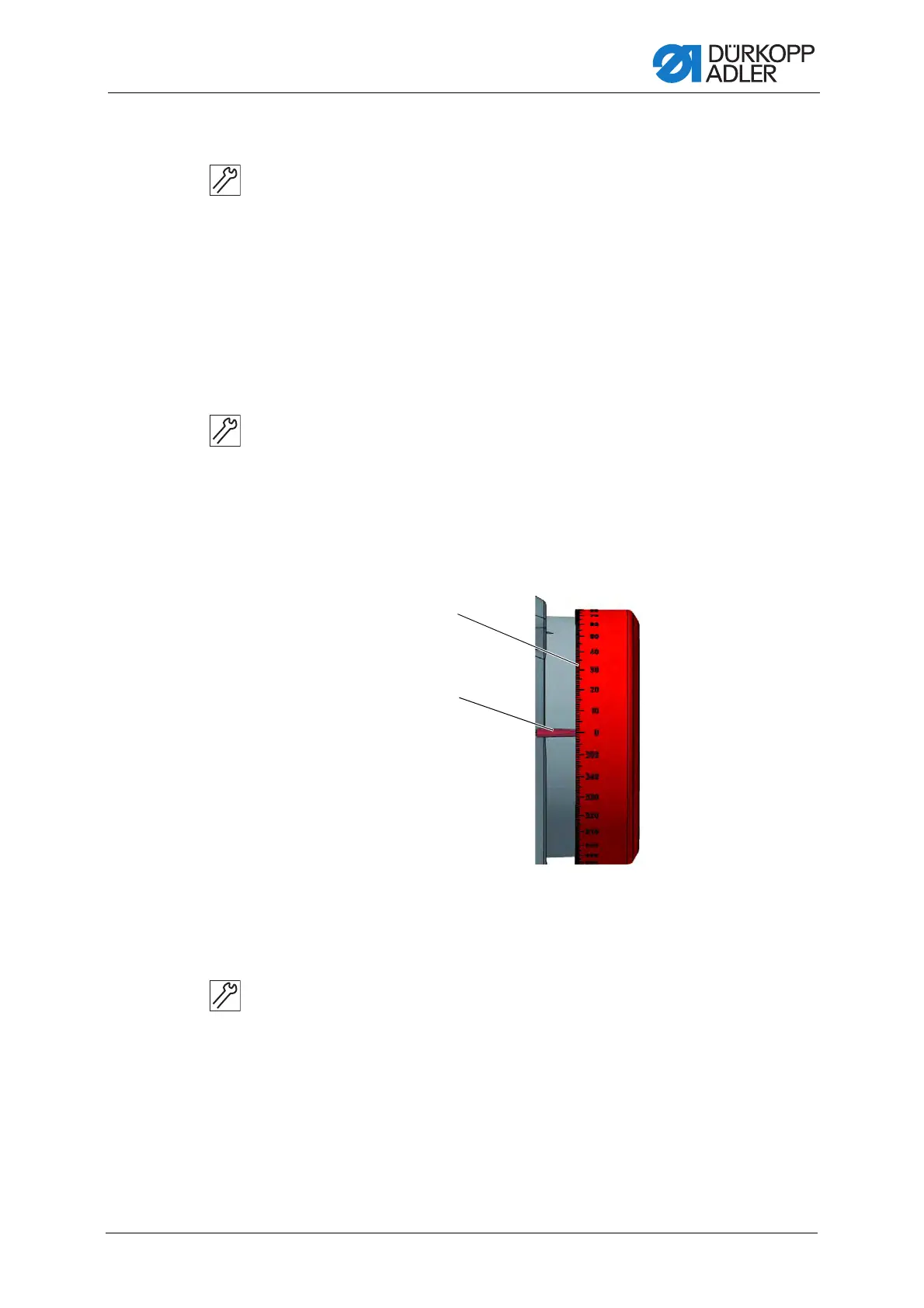

Fig. 15: Setting the handwheel into position
For some settings, the graduated scale on the handwheel has to be
moved to a certain position.
To set the handwheel into position:
1. Turn the handwheel until the specified number on the graduated
scale (1) is next to the marking (2).
(1) - Graduated scale (2) - Marking
