Working basis
24 Service Instructions 867-M PREMIUM - 03.0 - 05/2017
3.6 Locking the machine in place

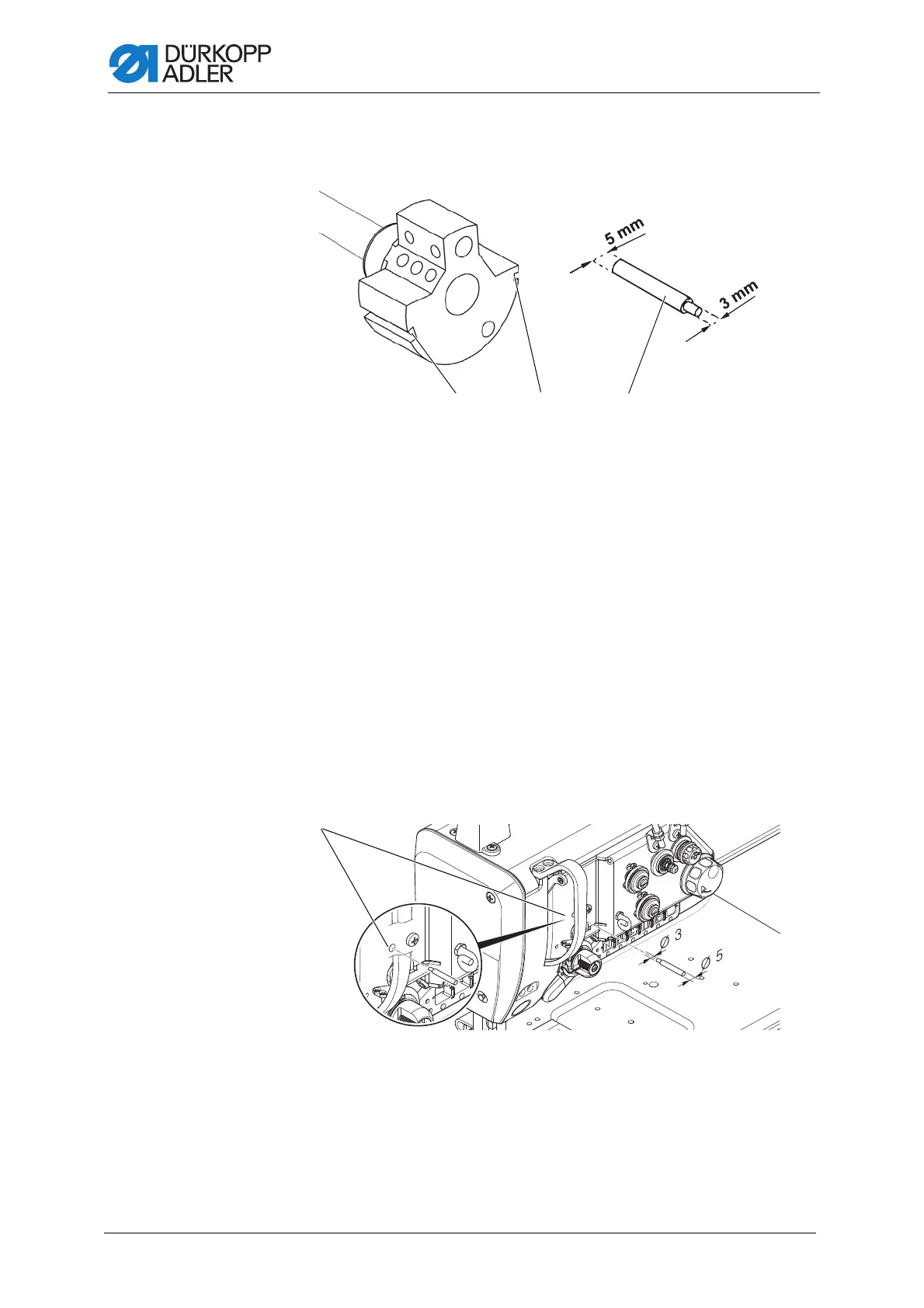

Fig. 13: Locking the machine in place (1)
For some settings, the machine must be locked in place. To do this, the
locking peg from the accessory pack is inserted into a slot on the arm shaft
crank, blocking the arm shaft.
There are 2 securing positions:
• Position 1: Loop stroke position
• 5 mm end in the large arresting groove (1)
• Setting the loop stroke and needle bar height
• Position 2: Handwheel zero position
• 3 mm end in the small arresting groove (2)
• Setting the handwheel position and checking the top dead center
for the needle bar
Fig. 14: Locking the machine in place (2)
(1) - Large arresting groove
(2) - Small arresting groove
(3) - Locking peg
(4) - Locking opening
