Setting the feed dog
Service Instructions 867-M PREMIUM - 03.0 - 05/2017 37
8.2 Moving the feed dog carrier
The feed dog carrier is connected to the stitch regulator gear via the sliding
shaft, and can be moved on this shaft.

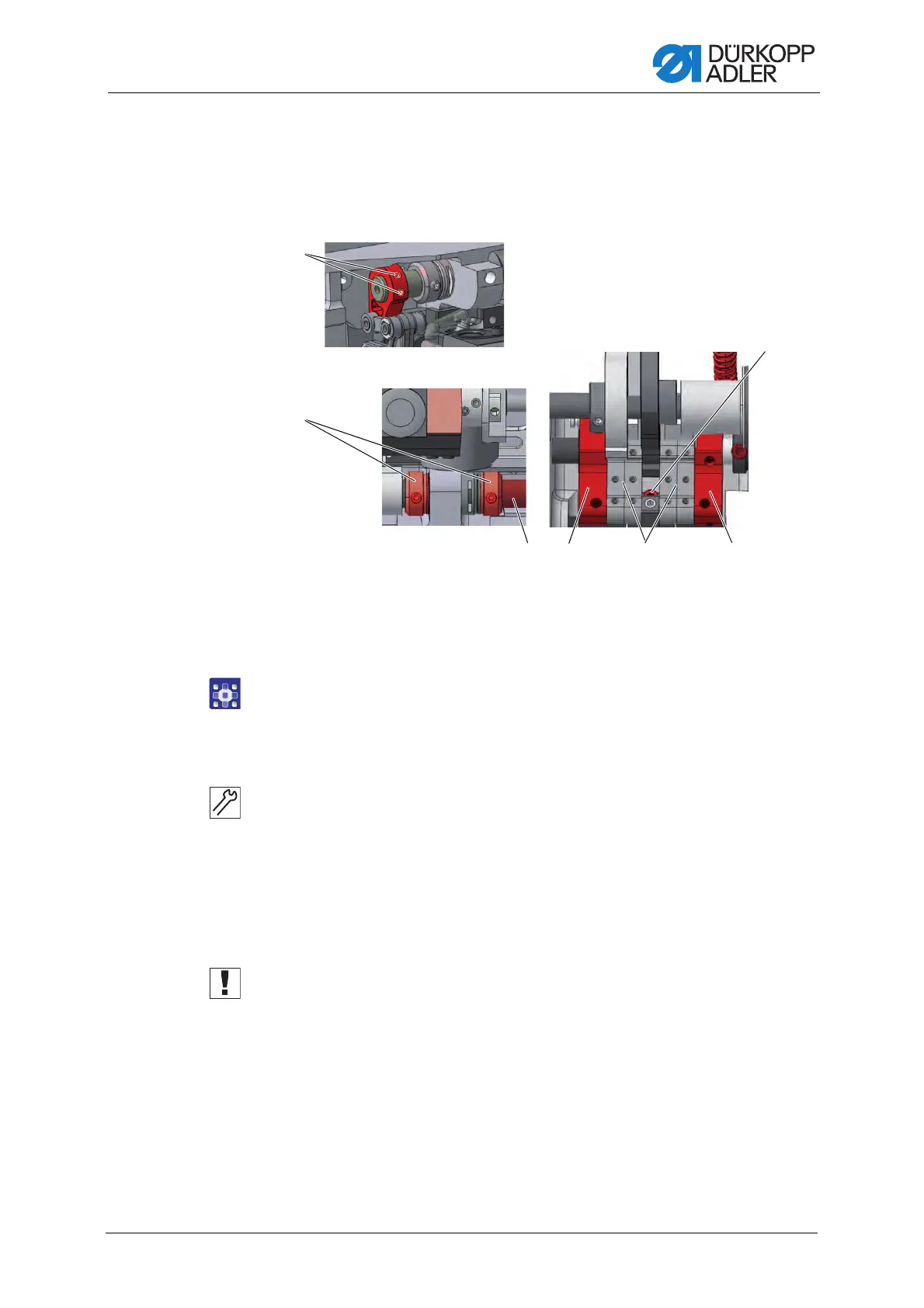

Fig. 25: Moving the feed dog carrier
To move the feed dog carrier:
1. Execute the service routine Feed Dog > Pos To Needle
( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Tilt the machine head ( p. 16).
3. Loosen the connection to the tie rod using the two screws (1).
4. Loosen the rear screw (6).
5. Unscrew the threaded pins for the adjusting rings (2).
6. Move the feed dog carrier perpendicular to the sewing direction so that
the feed dog is exactly in the center of the throat plate cutout.
7. Push the adjusting rings (2) toward each other as far as they will go.
Important
Make sure that the sliding shaft (3) is tightened by the clamping rings and
does not have any axial play.
8. Tighten the threaded pins for the adjusting rings (2).
9. Move the feed dog carrier in the sewing direction such that the feed
dog is exactly in the center of the throat plate cutout.
10. Tighten the rear screw (6).
(1) - Screws
(2) - Adjusting rings
(3) - Sliding shaft
(4) - Adjusting frame
(5) - Clips
(6) - Screw
