Programming

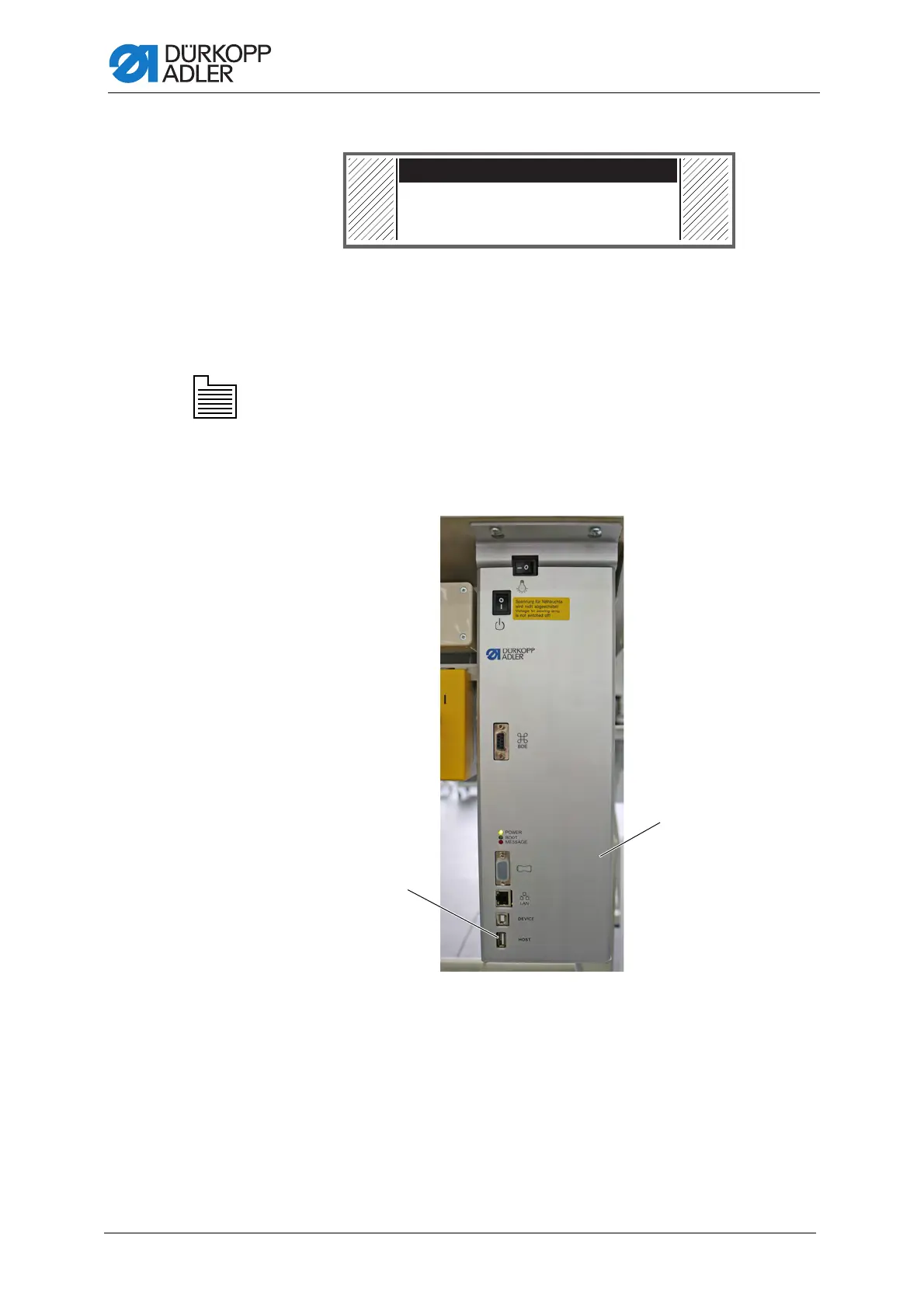

136 Service Instructions 867-M PREMIUM - 03.0 - 05/2017

Fig. 103: USB key warning

 The message disappears after the data transfer.

20.10.2 Setting the Only data (Only Data) parameter

Only the data for parameter settings and calibration values are transfered

to the USB key or the control.

To transfer the parameter settings and calibration values:

1. Plug the USB key into the socket (1) on the control (2).

Fig. 104: Data Transfer submenu

2. Call up the Service > Data Transfer > Only Data menu item.

3. Press the OK button to confirm the selection.

4. Use the

▲/▼ buttons to choose between the options Load from USB

or Store to USB.

5. Press the OK key to confirm your selection.

 The following warning message appears:

Don´t remove USB!

Please Wait!

(1) - Connection (2) - Control

①

②
