Winder
64 Service Instructions 867-M PREMIUM - 03.0 - 05/2017
14 Winder
14.1 Setting the winder wheel and the driver wheel (long arm
machines)

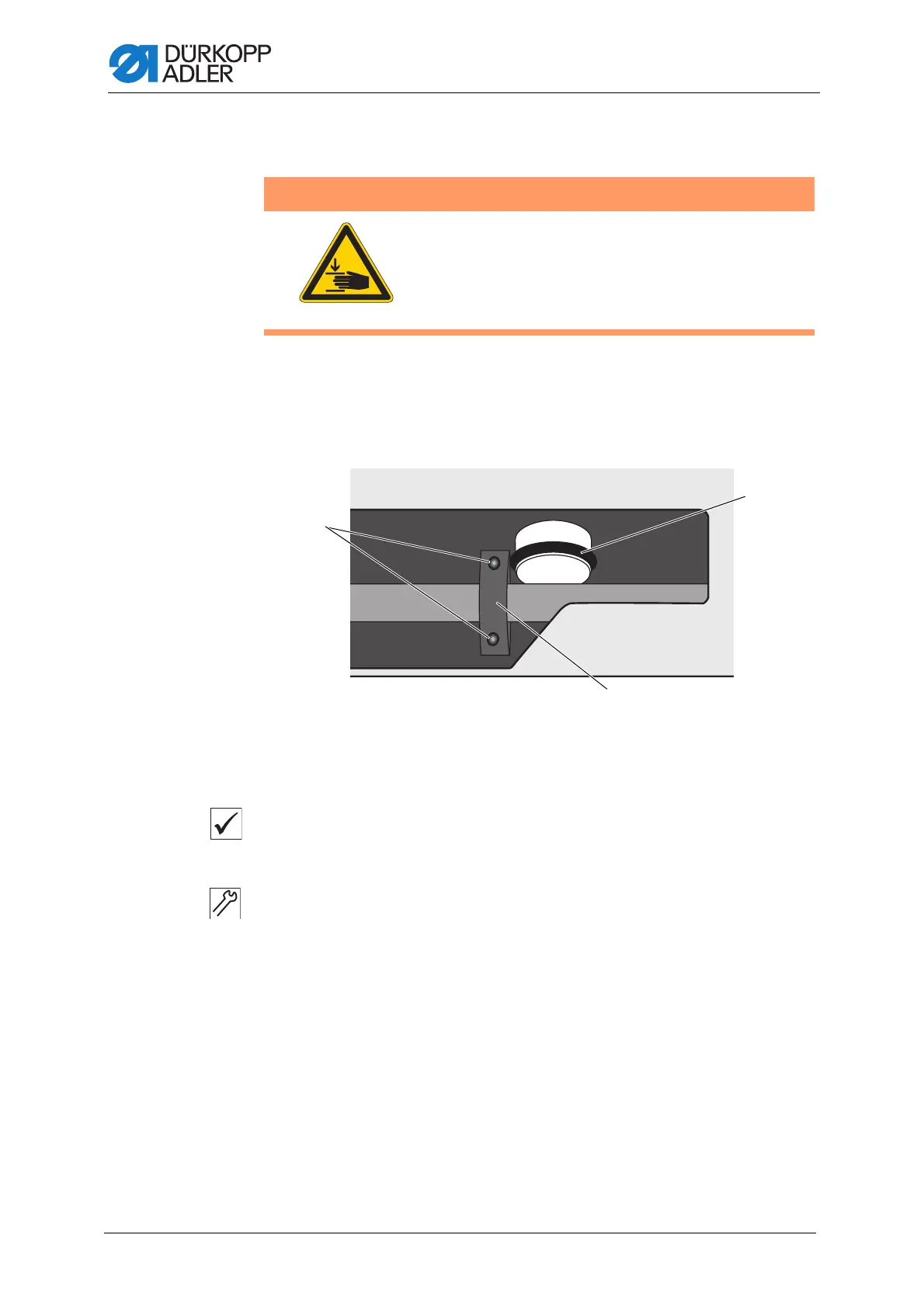

Fig. 51: Setting the winder wheel and the driver wheel
Proper setting
The distance between the winder wheel and the driver wheel is 0.8 mm.
To set the winder wheel and driver wheel:
1. Remove the arm cover ( p. 17).
1. Loosen the threaded pins (1).
2. Move the driver wheel (2) to the right or left so that the distance to the
winder wheel (3) is exactly 0.8 mm.
3. Tighten the threaded pins (1).
WARNING
Risk of injury from moving parts!
Crushing possible.
Switch off the machine before setting the winder.
(1) - Threaded pins
(2) - Driver wheel
(3) - Winder wheel
