Setting the feed dog
36 Service Instructions 867-M PREMIUM - 03.0 - 05/2017
Moving the feed dog

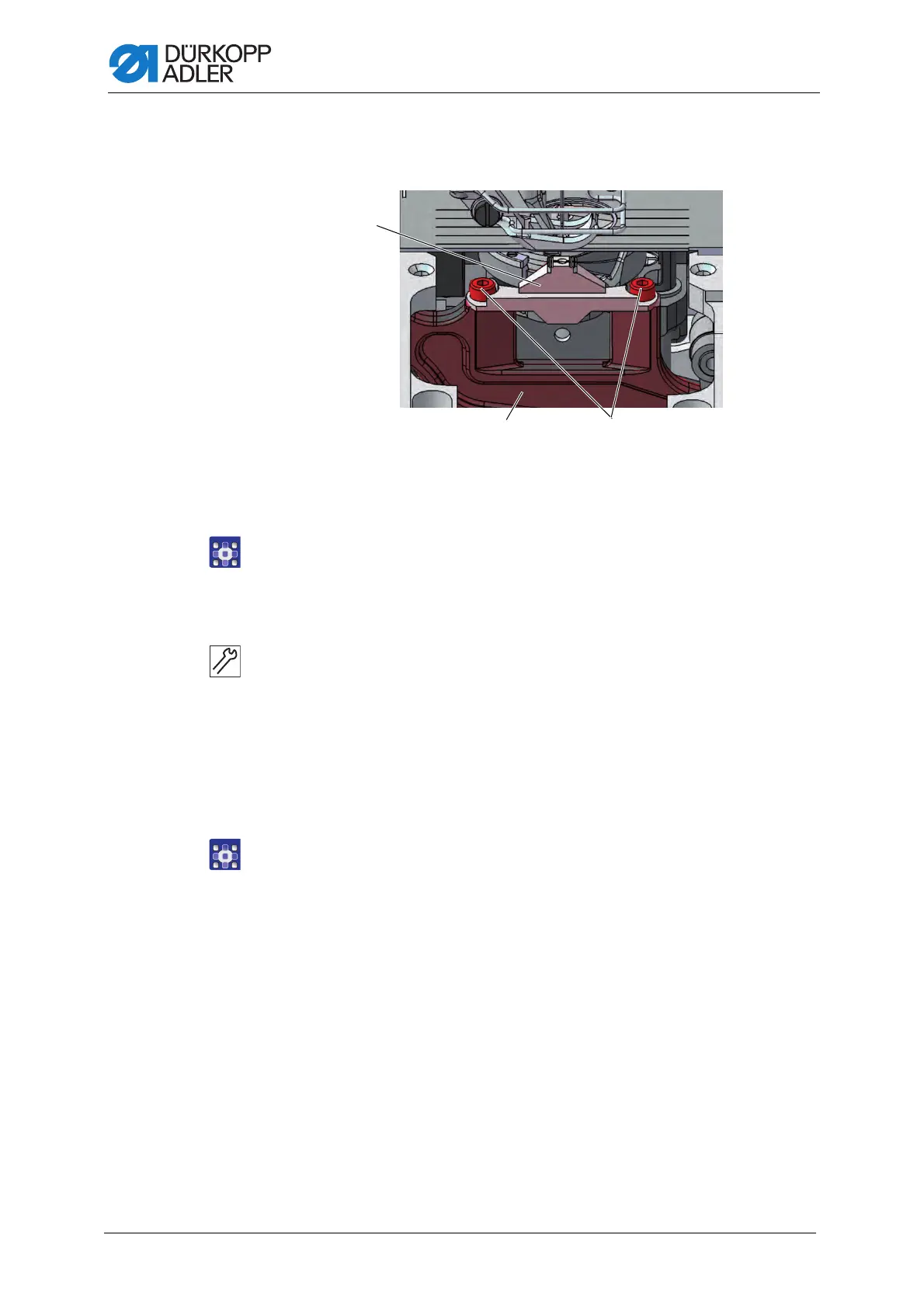

Fig. 24: Moving the feed dog
To move the feed dog:
1. Execute the service routine Feed Dog > Pos To Needle
( p. 14).
The software is used to define the necessary presettings on the
machine.
2. Remove the throat plate ( p. 21).
3. Loosen the screws (3).
4. Move the feed dog (1) on the feed dog carrier (2).
Place the removed throat plate next to it as an aid for orientation so
that the feed dog (1) can be screwed on straight.
5. Tighten the screws (3).
If this is not sufficient, move the entire feed dog carrier on the sliding
shaft ( p. 37).
6. Finish the service routine.
(1) - Feed dog
(2) - Feed dog carrier
(3) - Screws
