Setup
152 Operating Instructions M-TYPE DELTA - 01.0 - 08/2019
7.5 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use the dimen-
sions given in the diagram Appendix ( p. 197) as a template.
7.5.1 Completing the tabletop
The tabletop is optional. Drawings are provided in the appendix
to allow you to independently assemble a tabletop ( p. 197).

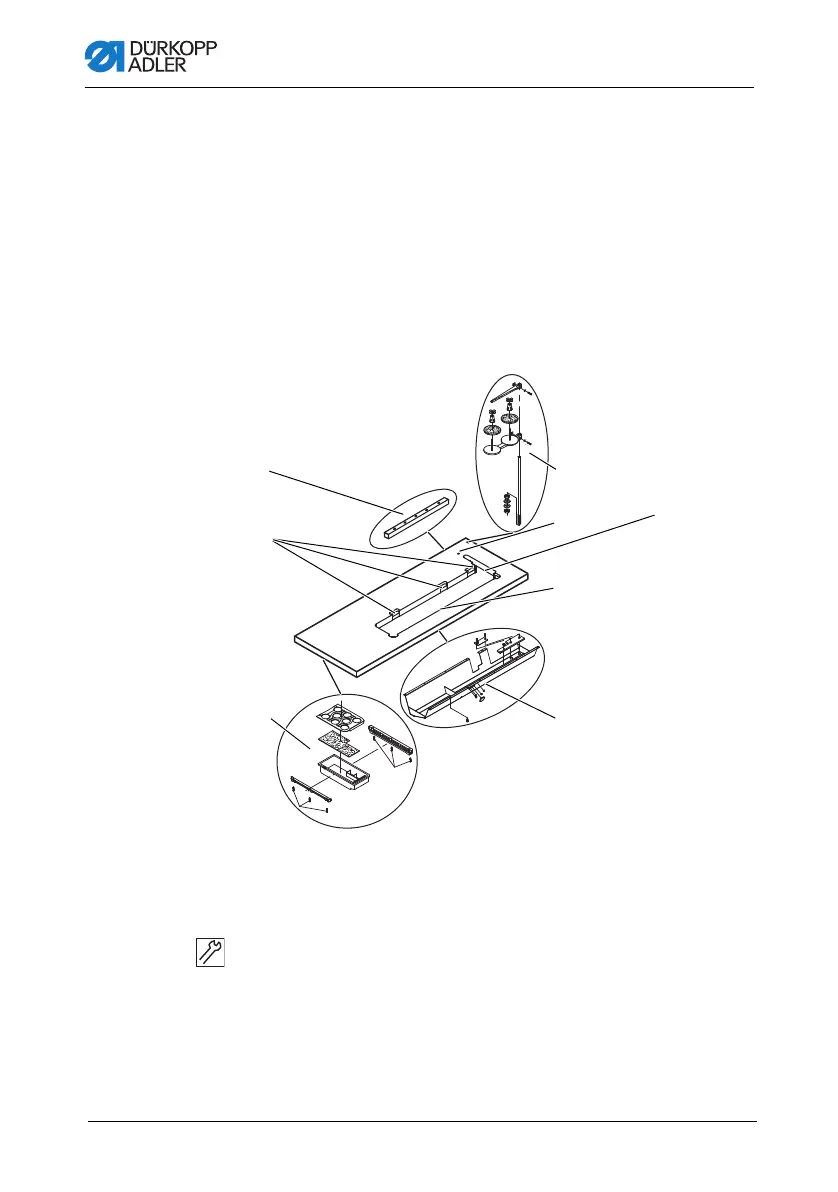

Fig. 70: Completing the tabletop
To complete the tabletop:
1. Screw the drawer (3) with the left-hand bracket to the
underside of the tabletop.
2. Assemble the tilt sensor magnet (8) on the side of the
tabletop cutout.
3. Screw the oil pan (4) in place under the slot for the machine.
(1) - Cable duct
(2) - Slot
(3) - Drawer
(4) - Oil pan
(5) - Rubber strip
(6) - Hole
(7) - Reel stand
(8) - Tilt sensor magnet
