Maintenance measures - 500 h
4812164901_A.pdf 2022-11-14
Forward/Reverse controls and joints - Check
and lubrication

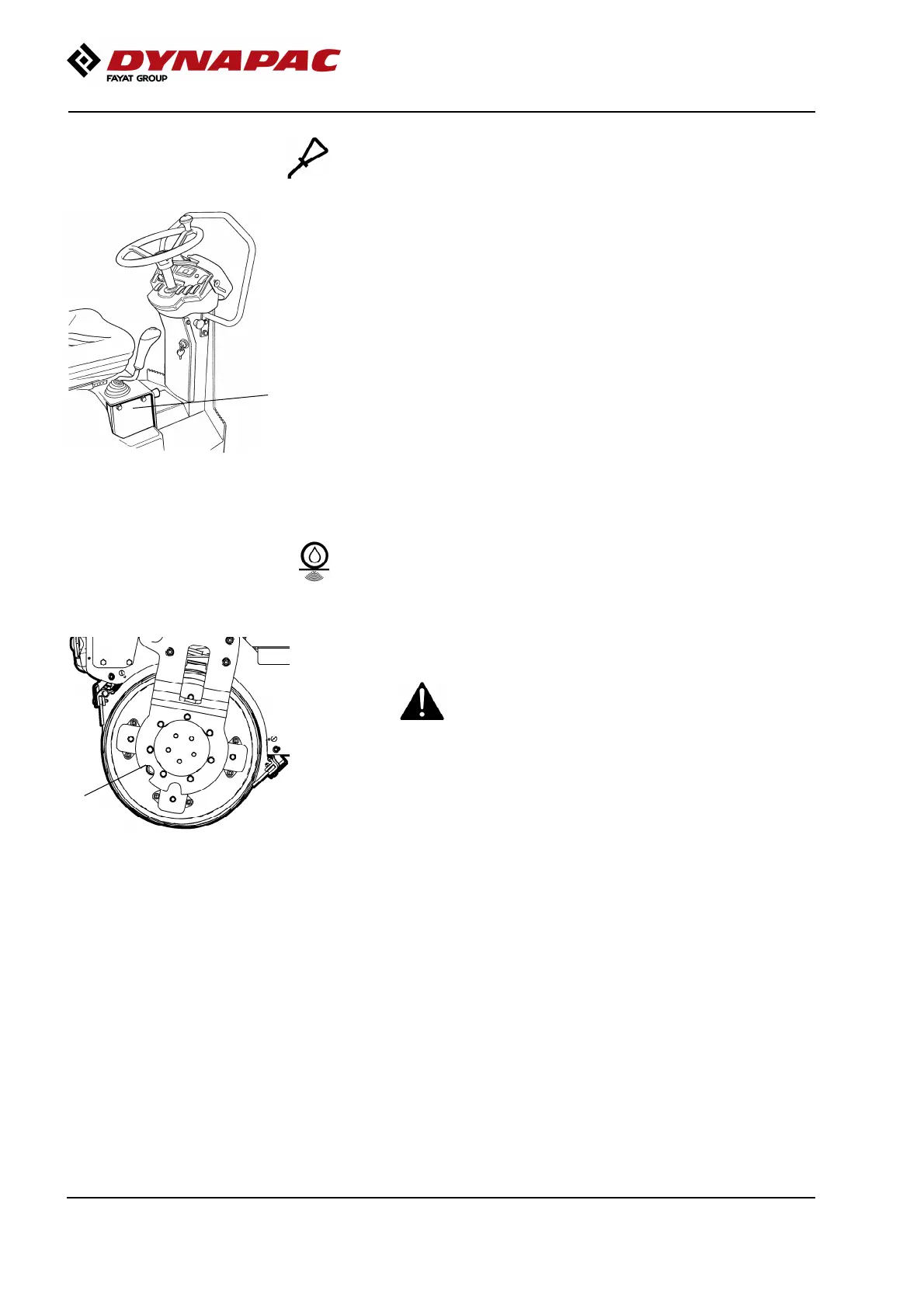

Fig. Forward/Reverse lever
1. Plate
1
Remove the plate (1). Check the friction of the
forward/reverse controls. The friction screws should be
set so that the forward/reverse lever remains in the
position in which it is set whilst the machine is
operated. The control’s ‘0 position’ is determined by a
screw which engages with the groove on the shaft
between the controls.
If the control begins to be stiff after a longer period of
use, lubricate the controls by the bearings and the
control cable with a few drops of oil.
Drum - Checking the oil level
Fig. Drum drive side
1. Oil plug
1
Park the roller on a level surface, and drive the roller
slowly until the oil plug (1) is in the middle of the
semicircle shaped notch in the drum suspension.
Switch off the battery and press down the
emergency stop.
Switch off the battery and press down the
emergency stop.
Unscrew the plug and check that the oil level reaches
the hole’s lower edge. If necessary, top off with fresh
transmission fluid. See under the heading lubricants
for correct fluid grade.
Clean the magnetic oil plug (1) from any metallic
residue, and refit the plug.
106
