Machine description
4812164901_A.pdf2022-11-14

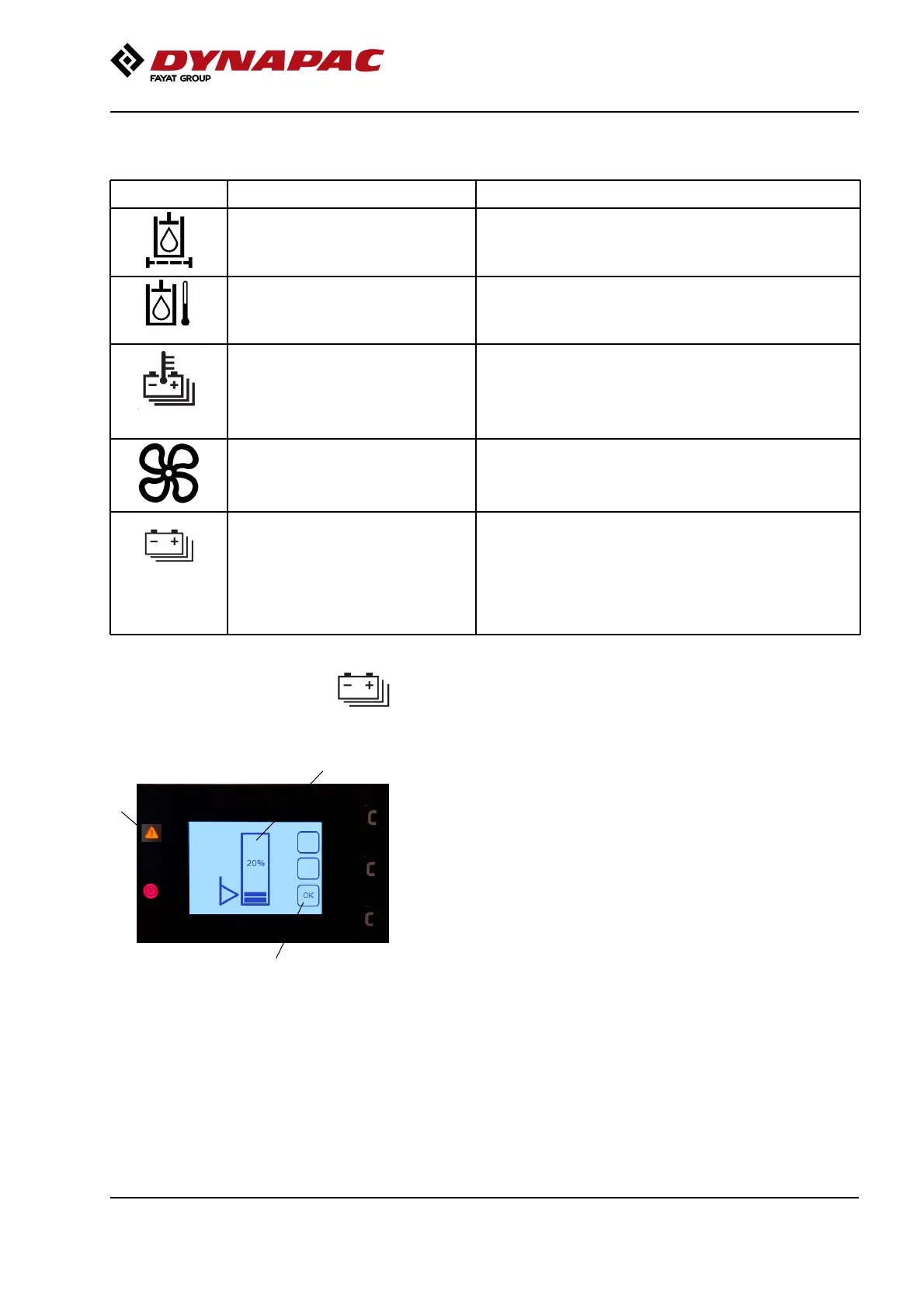

Machine alarm
Symbol Designation FunctionSymbol Designation Function
Warning symbol, hydraulic fluid filter If the symbol is shown the hydraulic fluid filter must be
changed.
Warning symbol, hydraulic fluid filter If the symbol is shown the hydraulic fluid filter must be
changed.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool and then
locate the fault.
Warning symbol, hydraulic fluid
temperature
This symbol is shown when the hydraulic fluid is too hot.
Do not drive the roller; allow the fluid to cool and then
locate the fault.
Warning symbol, battery temperature If the symbol is displayed, the battery temperature is high.
If the warning is yellow, only vibration is permitted on one
drum. If both are active when the warning is received, the
vibration on the front drum is switched off.
If the red warning is on, only the lowest machine speed is
permitted and it's not possible to run with vibration.
Warning symbol, battery temperature If the symbol is displayed, the battery temperature is high.
If the warning is yellow, only vibration is permitted on one
drum. If both are active when the warning is received, the
vibration on the front drum is switched off.
If the red warning is on, only the lowest machine speed is
permitted and it's not possible to run with vibration.
Warning symbol, ventilation fan The ventilation fan must always rotate when the ignition is
on.
The symbol is shown if the fan is not rotating. This means
it is either broken or not connected.
Warning symbol, ventilation fan The ventilation fan must always rotate when the ignition is
on.
The symbol is shown if the fan is not rotating. This means
it is either broken or not connected.
Warning symbol, battery status If the symbol appears, the battery level is getting low. Plan
to charge the machine.
At 20% and 15% battery level, a yellow warning also
comes on. When the level reaches 8%, the yellow warning
comes on, and the machine is only allowed to run at the
lowest speed and it is not possible to run with vibration.
When the level reaches 3%, the red warning comes on
and the machine is switched off.
Warning symbol, battery status If the symbol appears, the battery level is getting low. Plan
to charge the machine.
At 20% and 15% battery level, a yellow warning also
comes on. When the level reaches 8%, the yellow warning
comes on, and the machine is only allowed to run at the
lowest speed and it is not possible to run with vibration.
When the level reaches 3%, the red warning comes on
and the machine is switched off.
Battery status
1. Battery level 20% or 15% display in display image.
Fig. Battery level 20% or 15%
1. % display
2. Yellow warning
3. Acknowledge
3
1
2
If no activity occurs after warning and
acknowledgement, the next level will appear when it is
reached.
2. Battery level 15% display in the same way as for
20% but with the value 15% instead.
33
