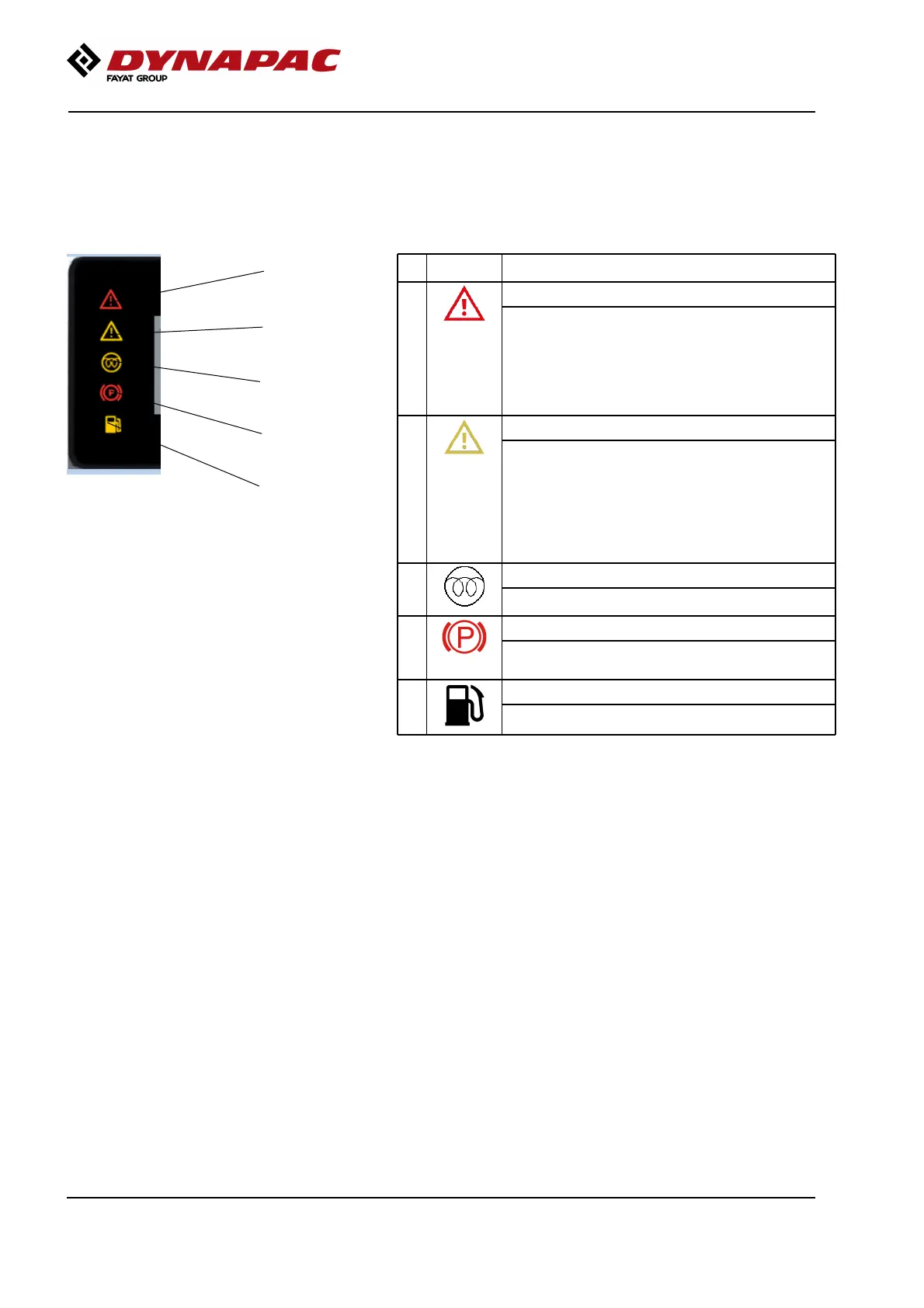

Functional description – Alarm/Warning lamps
When the display is started up, all warning lamps on
the display light up during a short sequence. This is a
self-test of the function of the lamps.
1
2
3
4
5
Symbol Designation and FunctionSymbol Designation and Function
1.
Warning lamp (Red)
1.
Warning lamp (Red)
Serious fault!: Rectify as soon as possible.
Also used for battery charge level.
The warning lamp is usually launched together
with a message in the display.
In the event of a warning that is instead linked to
an error code, this is read out in the display’s
submenu for error codes.
Serious fault!: Rectify as soon as possible.
Also used for battery charge level.
The warning lamp is usually launched together
with a message in the display.
In the event of a warning that is instead linked to
an error code, this is read out in the display’s
submenu for error codes.
2.
Warning lamp (Yellow)
2.
Warning lamp (Yellow)
Less serious fault!: Rectify as soon as
possible.
Also used for battery charge level.
The warning lamp is usually launched together
with a message in the display.
In the event of a warning that is instead linked to
an error code, this is read out in the display’s
submenu for error codes.
Less serious fault!: Rectify as soon as
possible.
Also used for battery charge level.
The warning lamp is usually launched together
with a message in the display.
In the event of a warning that is instead linked to
an error code, this is read out in the display’s
submenu for error codes.
3.
N/A
3.
N/A
4.
Parking brake indicator (Red)
4.
Parking brake indicator (Red)
The symbol lights when the parking brake is
activated.
The symbol lights when the parking brake is
activated.
5.
N/A
5.
N/A
