Dynapac CC900 e - Drum - Changing the Oil; Drum - Checking the Oil Level

Maintenance - 1000h
4812164901_A.pdf 2022-11-14

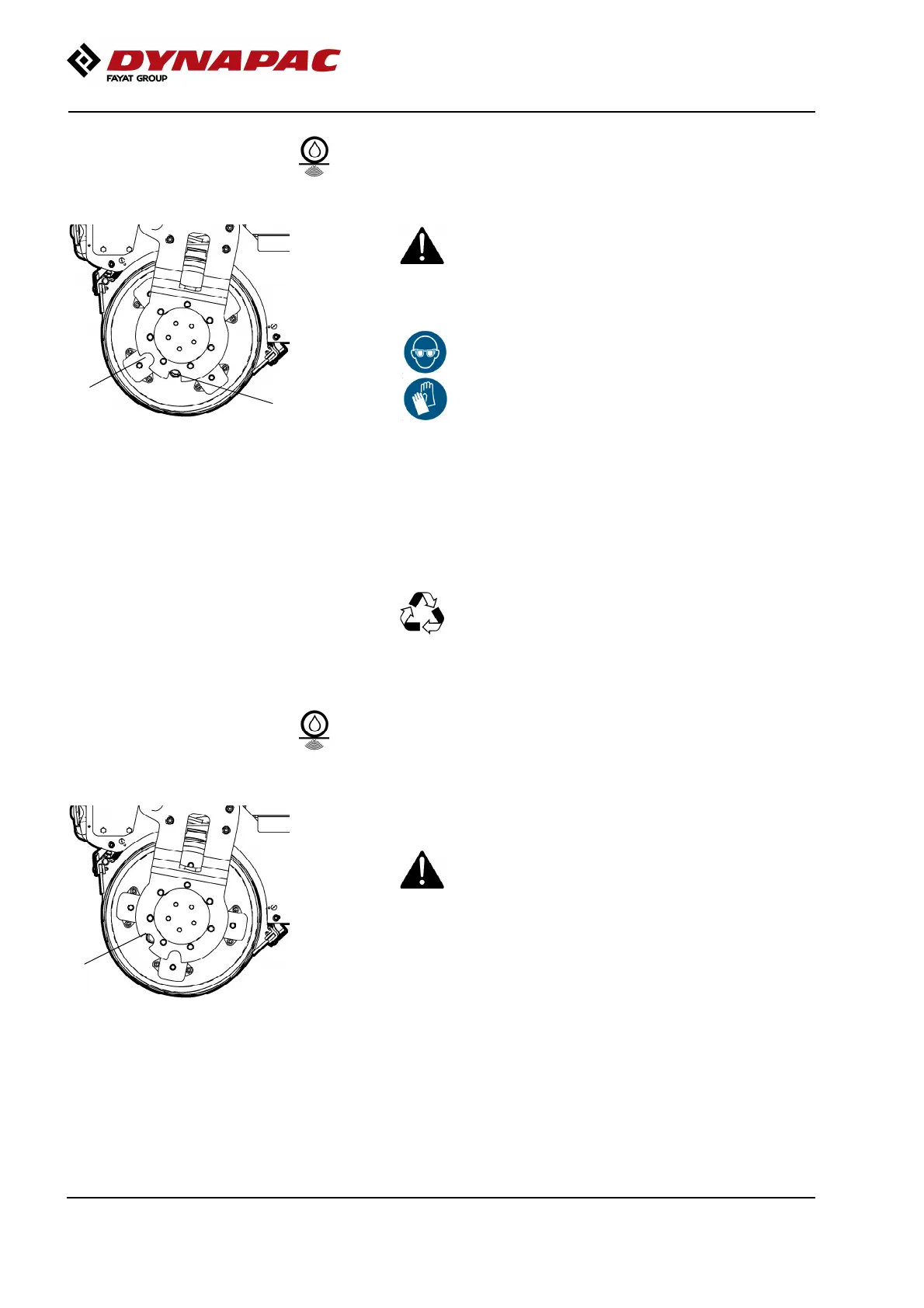

Drum - Changing the oil
Park the roller on a level surface, and drive the roller
slowly until the plug (1) is in the bottom position.
Fig. Drum, vibration side
1. Oil plug (1) in position for draining
the oil.
2. The oil plug position for level check
and filling.
1
2
Switch off the battery and press down the
emergency stop.
Switch off the battery and press down the
emergency stop.
Use the following protective equipment:Use the following protective equipment:
Safety glassesSafety glasses
Ear protectorsEar protectors
Place a receptacle that will hold at least 4 liters (1 gal)
under the plug.
Remove the plug (1) and let the oil run out.
Hand in the drained oil to a waste disposal station.Hand in the drained oil to a waste disposal station.
Refit the plug. Top up with new oil in position 2.
Drum - Checking the oil level
Fig. Drum drive side
1. Oil plug
1
Park the roller on a level surface, and drive the roller
slowly until the oil plug (1) is in the middle of the
semicircle shaped notch in the drum suspension.
Switch off the battery and press down the
emergency stop.
Switch off the battery and press down the
emergency stop.
Unscrew the plug and check that the oil level reaches
the hole’s lower edge. If necessary, top off with fresh
transmission fluid. See under the heading lubricants
for correct fluid grade.
Clean the magnetic oil plug (1) from any metallic
residue, and refit the plug.
112
