Battery power limitations
Discharge limitation is applied at temperatures lower
than -10°C as well above 50°C, at 50% SOC.
Charge limitation is applied at temperatures lower than
10°C as well above 53°C, at 50% SOC.
These numbers are relevant for use of the 3-phase
charger and 50% SOC (State Of Charge), temperature
limits will alter depending on the level of SOC and
which of the Dynapac supplied chargers are being
used.
Installation
Lifting instructions
Use lifting device when handling the battery
system. The battery system weighs 135 kg.
Use lifting device when handling the battery
system. The battery system weighs 135 kg.

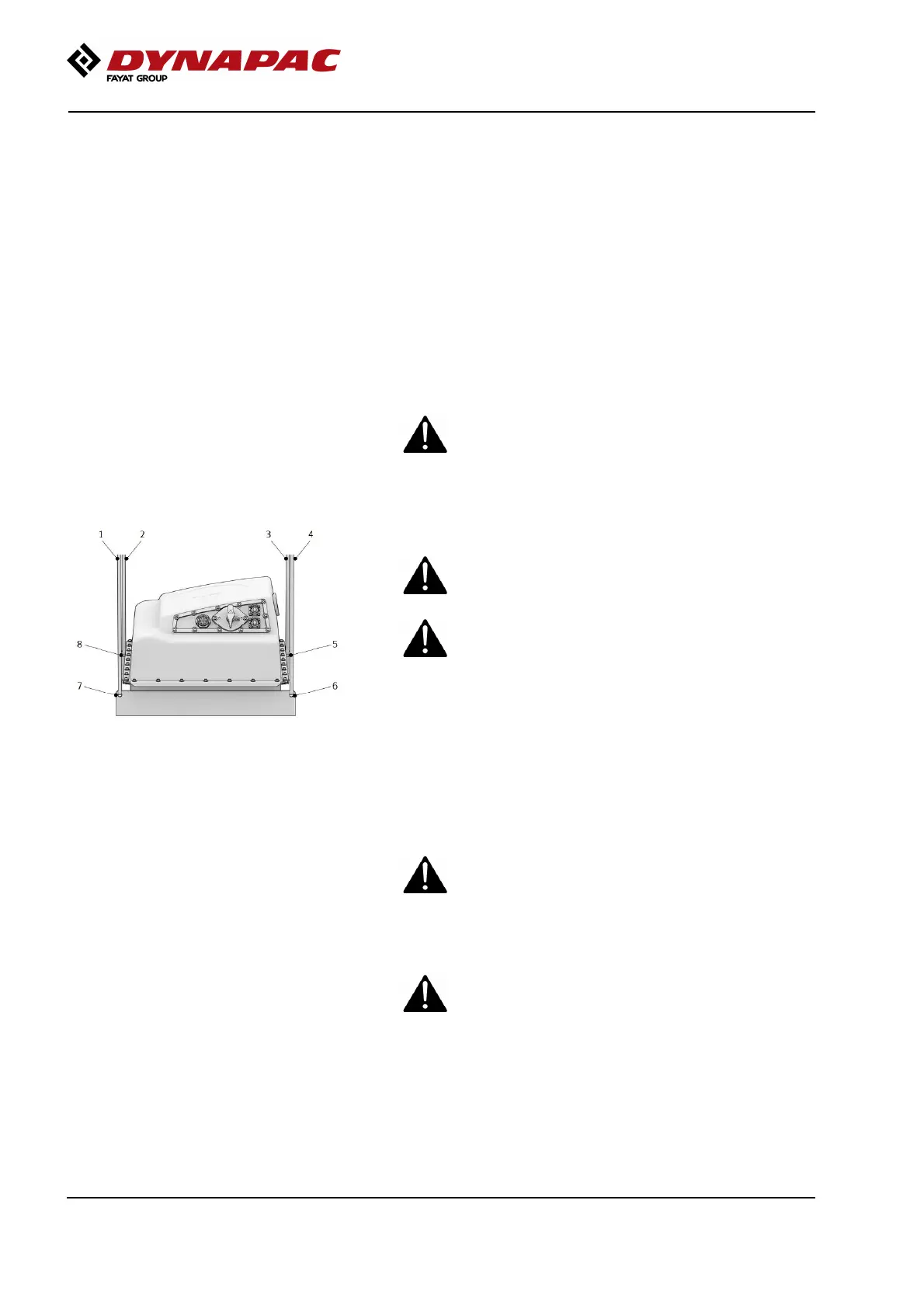

Fig. Lifting points
1. Attach 4 slings (1-4) to the lifting points (5-8).
Use four point lifting device with vertical slings
only.
Use four point lifting device with vertical slings
only.
Falling object hazard - Do not stand under the
hoisted battery system.
Falling object hazard - Do not stand under the
hoisted battery system.
Installing the battery system in a machine
1. Unpack the battery system
2. Check the battery system for damage.
Do not install or use damaged battery system.Do not install or use damaged battery system.
3. Lift the battery system.
Obey safe lifting instructions. See Lifting
instructions.
Obey safe lifting instructions. See Lifting
instructions.
