Miscellaneous
Lifting
2
3
1

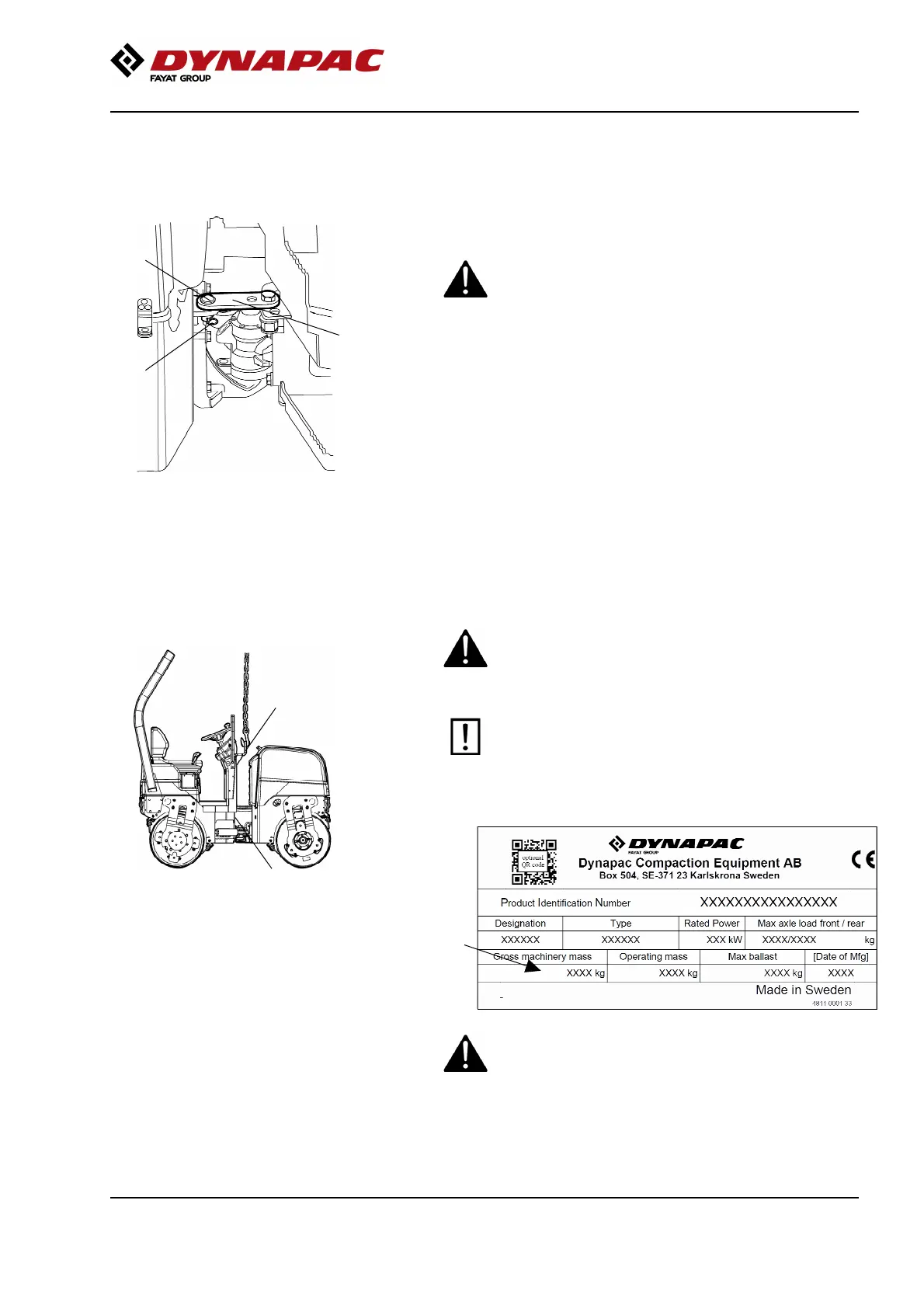

Fig. Steering joint
1. Cotter pin
2. Locking arm
3. Locking bolt
Locking the articulation
Before lifting the roller the steering joint must be
locked to prevent it turning.
Before lifting the roller the steering joint must be
locked to prevent it turning.
Turn the steering wheel to the straight ahead position.
Switch off the machine in accordance with the
shutdown procedure.
Pull out the locking pin (1), turn the locking arm (2) to
the front frame, secure the locking arm to the front
frame half by inserting the locking bolt (3) through the
bracket in the front frame and the locking arm.
Secure the position of the locking arm by refitting the
locking pin (1).
Lifting the roller
2
Weight: refer to the machine plate on
the roller
1
Fig. Roller prepared for lifting
1. Lifting point
2. Machine plate
The machine’s gross weight (3) is specified on the
machine plate (2).
The machine’s gross weight (3) is specified on the
machine plate (2).
Lifting gear such as chains, steel wires, straps,
and lifting hooks must be dimensioned in
accordance with the applicable safety regulations
for lifting devices.
Lifting gear such as chains, steel wires, straps,
and lifting hooks must be dimensioned in
accordance with the applicable safety regulations
for lifting devices.
3
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
75
