Machine description
4812164901_A.pdf2022-11-14
4. Position the battery system.
Make sure that the installation area is clear when
placing the battery system into machine.
Make sure that the installation area is clear when
placing the battery system into machine.
Crushing hazard - Do not place any body part
between installed battery system and machine
frame when lowering the battery system.
Crushing hazard - Do not place any body part
between installed battery system and machine
frame when lowering the battery system.

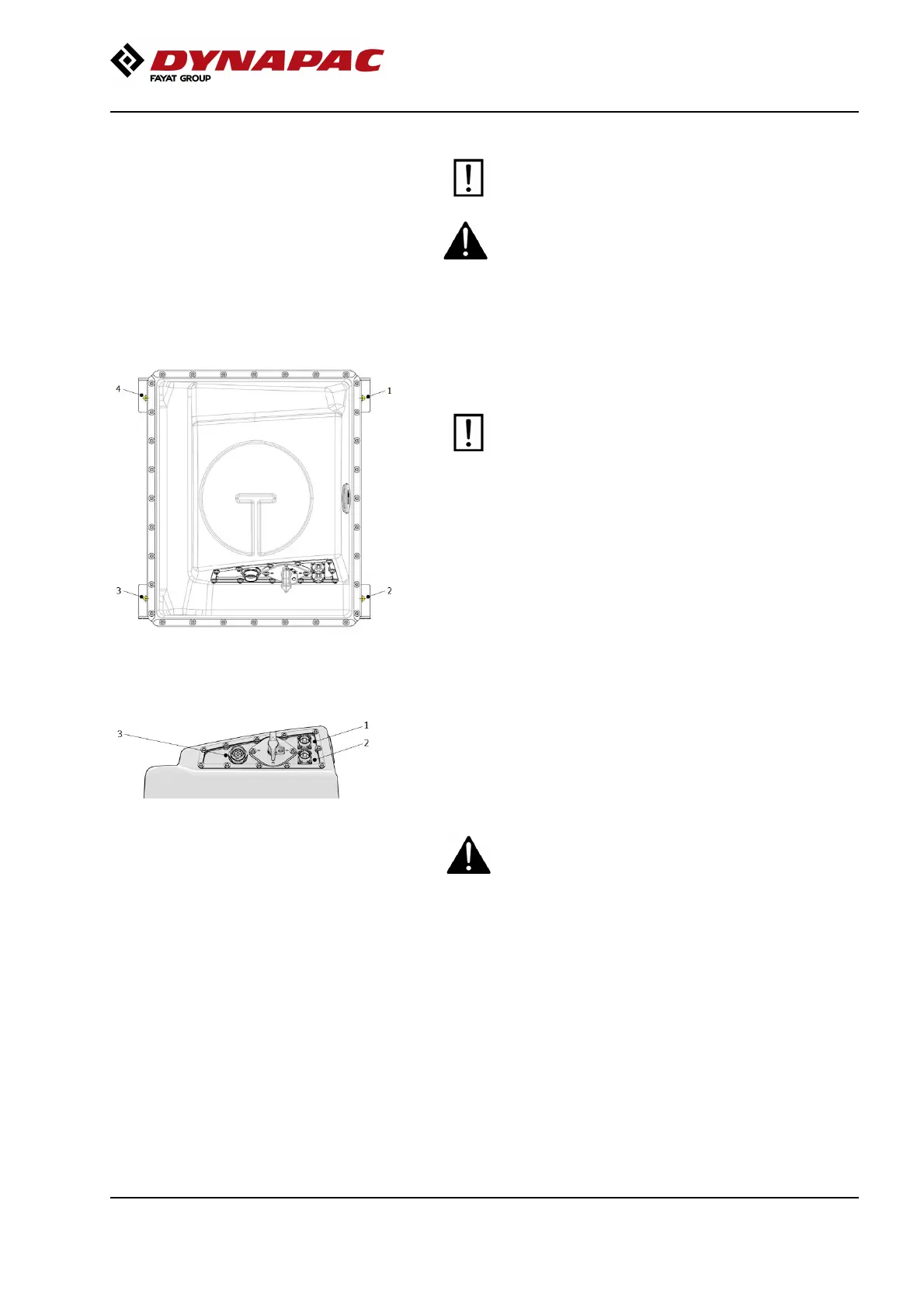

Fig. Installing the battery system
1-4 Ø 11mm for mounting.
5. Attach the battery system to the vehicle using the
four fastening points (1-4).
Attach a vibration damper to every fastening point
below the battery.
Attach a vibration damper to every fastening point
below the battery.
6. Remove protective caps from positive power
terminal (1), negative power terminal (2), and signal
interface terminal (3).
Fig. Connecting cables
7. Connect cables to terminals.
In order to prevent external short circuit, make
sure that external cabling between battery system
and machine frame is not cut or damaged during
installation
In order to prevent external short circuit, make
sure that external cabling between battery system
and machine frame is not cut or damaged during
installation
49
