Maintenance - 2000h
4812164901_A.pdf 2022-11-14
Forward/Reverse controls and joints - Check
and lubrication

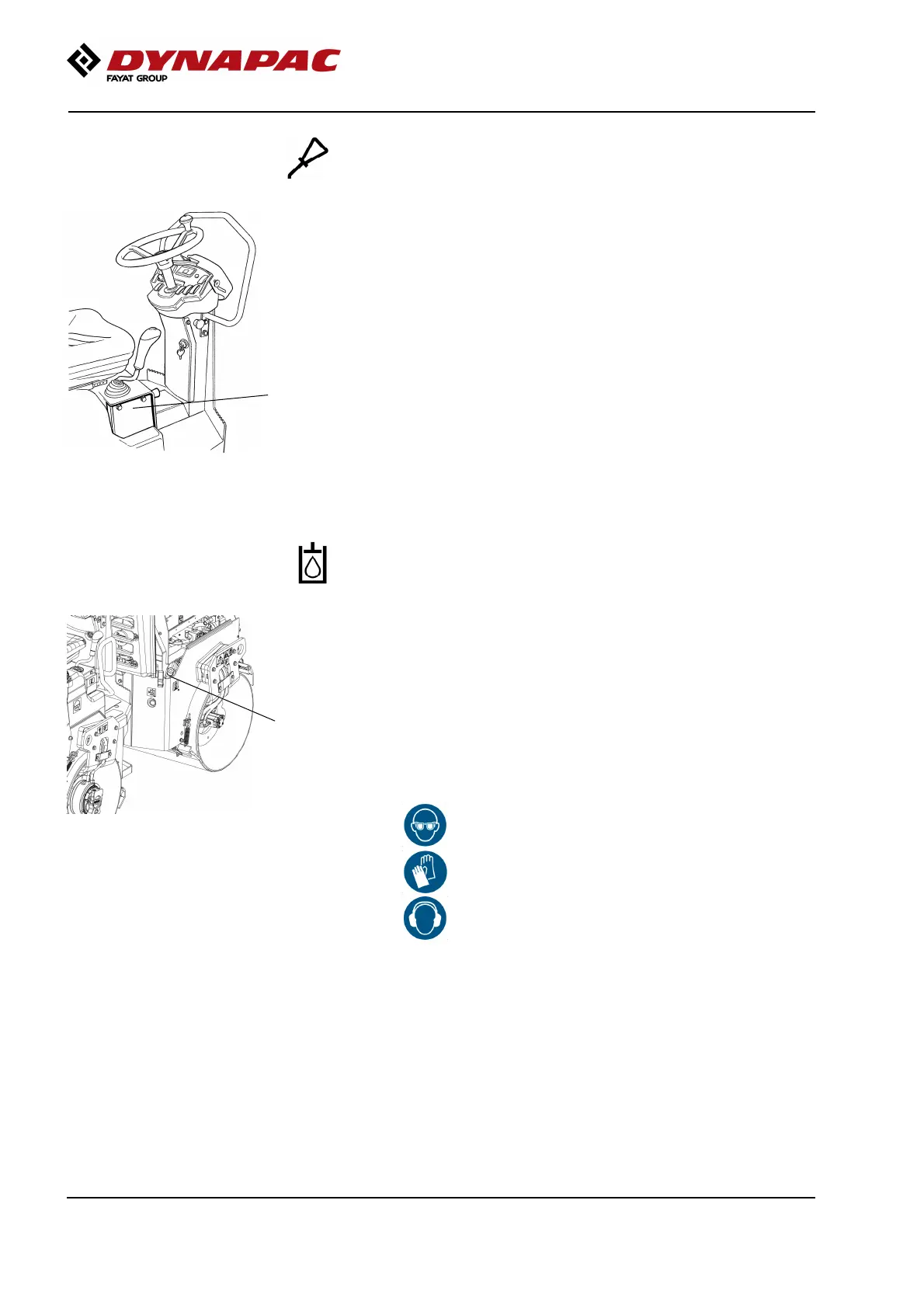

Fig. Forward/Reverse lever
1. Plate
1
Remove the plate (1). Check the friction of the
forward/reverse controls. The friction screws should be
set so that the forward/reverse lever remains in the
position in which it is set whilst the machine is
operated. The control’s ‘0 position’ is determined by a
screw which engages with the groove on the shaft
between the controls.
If the control begins to be stiff after a longer period of
use, lubricate the controls by the bearings and the
control cable with a few drops of oil.
Hydraulic reservoir - Check/venting
Fig. Beneath hood, right-hand side
1. Hydraulic oil tank cap
1
Unscrew and make sure that the reservoir cap is not
blocked. Air must have unobstructed passage through
the cap in both directions.
If blocked in either direction, clean with a little diesel oil
and blow with compressed air until unblocked or
replace the cap with a new one.
When working with compressed air, use the
following protective equipment:
When working with compressed air, use the
following protective equipment:
Safety glassesSafety glasses
Protective glovesProtective gloves
Ear protectorsEar protectors
