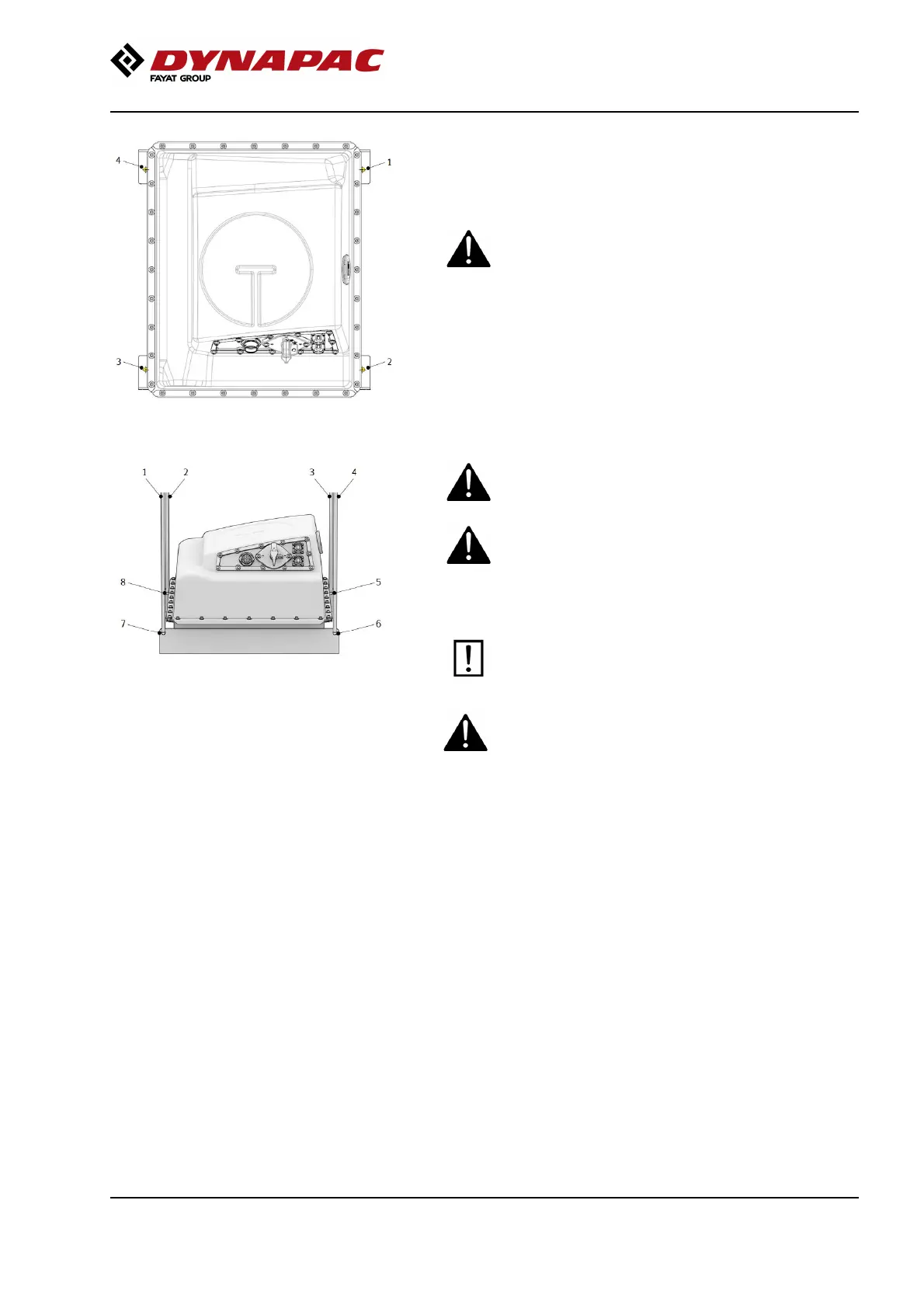

Fig. Uninstalling the battery system
1-4 fastening bolts.
4. Remove fastening bolts.
5.Lift the battery system.
Use lifting device when handling the battery
system. The battery system weighs 135 kg.
Use lifting device when handling the battery
system. The battery system weighs 135 kg.
5.1 Attach 4 slings (1-4) to the lifting points (5-8).
Fig. Lifting points
Use four point lifting device with vertical slings
only.
Use four point lifting device with vertical slings
only.
Falling object hazard - Do not stand under the
hoisted battery system.
Falling object hazard - Do not stand under the
hoisted battery system.
Make sure that the dismounting area is clear
before dismounting the battery system from
machine.
Make sure that the dismounting area is clear
before dismounting the battery system from
machine.
Crushing hazard - Do not place any body part
between the battery system and machine frame
when lifting the battery system.
Crushing hazard - Do not place any body part
between the battery system and machine frame
when lifting the battery system.
Disposing the battery system
The Li-ion battery shall be recycled according to
national regulations. The battery system shall not be
disposed with general waste.
For damaged battery system, see Safety instructions
for handling the damaged battery system.
