EDR-3000 IM02602003E
Slot X1: Power Supply Card with Digital Inputs

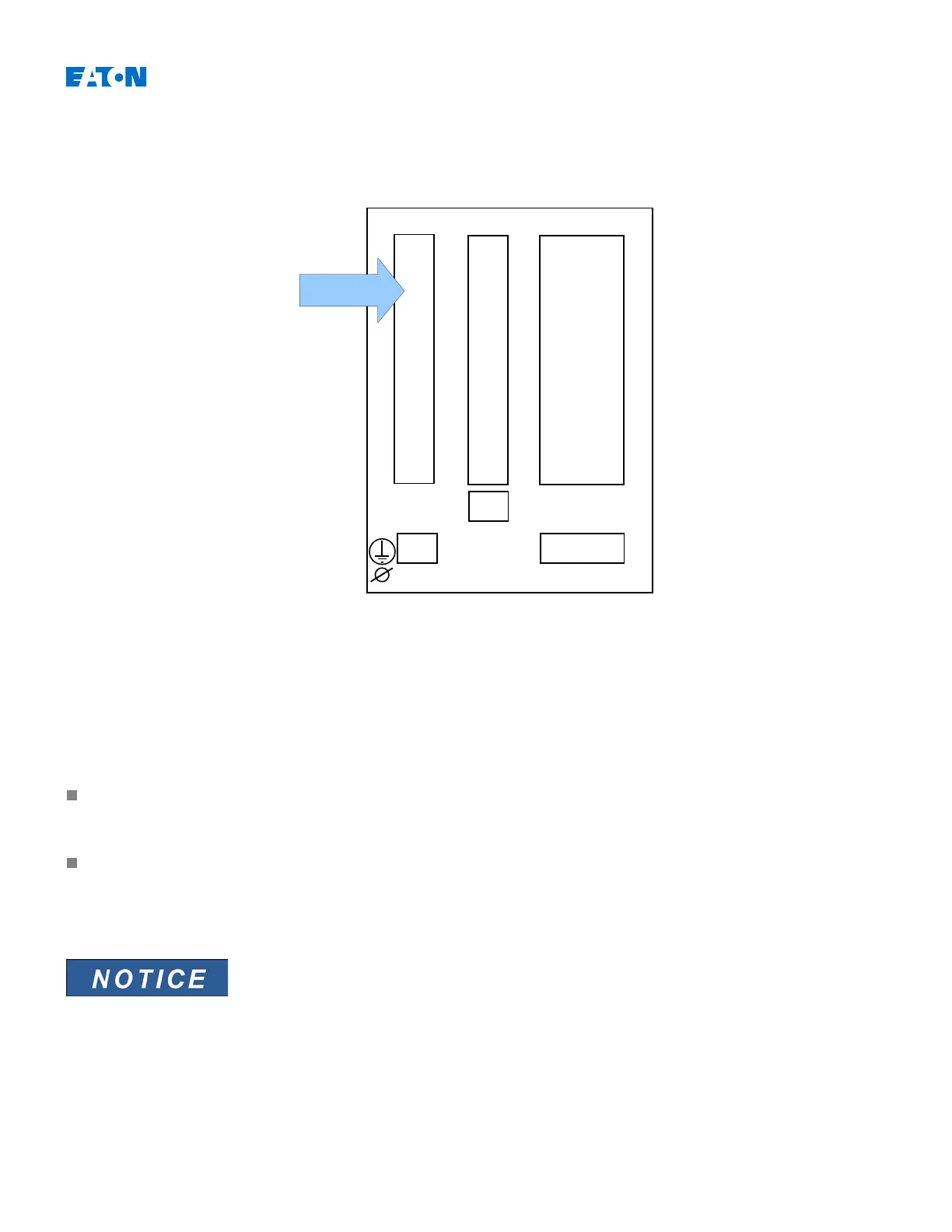

Rear side of the device (Slots)
The type of power supply card and the number of digital inputs on it used in this slot is dependent on the ordered device
type. The different variants have a different scope of functions.
Available assembly groups in this slot:
(DI8-X1): This assembly group comprises a wide-range power supply unit;
and two non-grouped digital inputs and six (6) digital inputs (grouped).
(DI4-X1): This assembly group comprises a wide-range power supply unit;
and four (4) digital inputs (grouped).
The available combinations can be gathered from the ordering code.
