Control - Example: Switching of a Breaker
Ctrl
The following example shows how to switch a breaker via the HMI at the device.

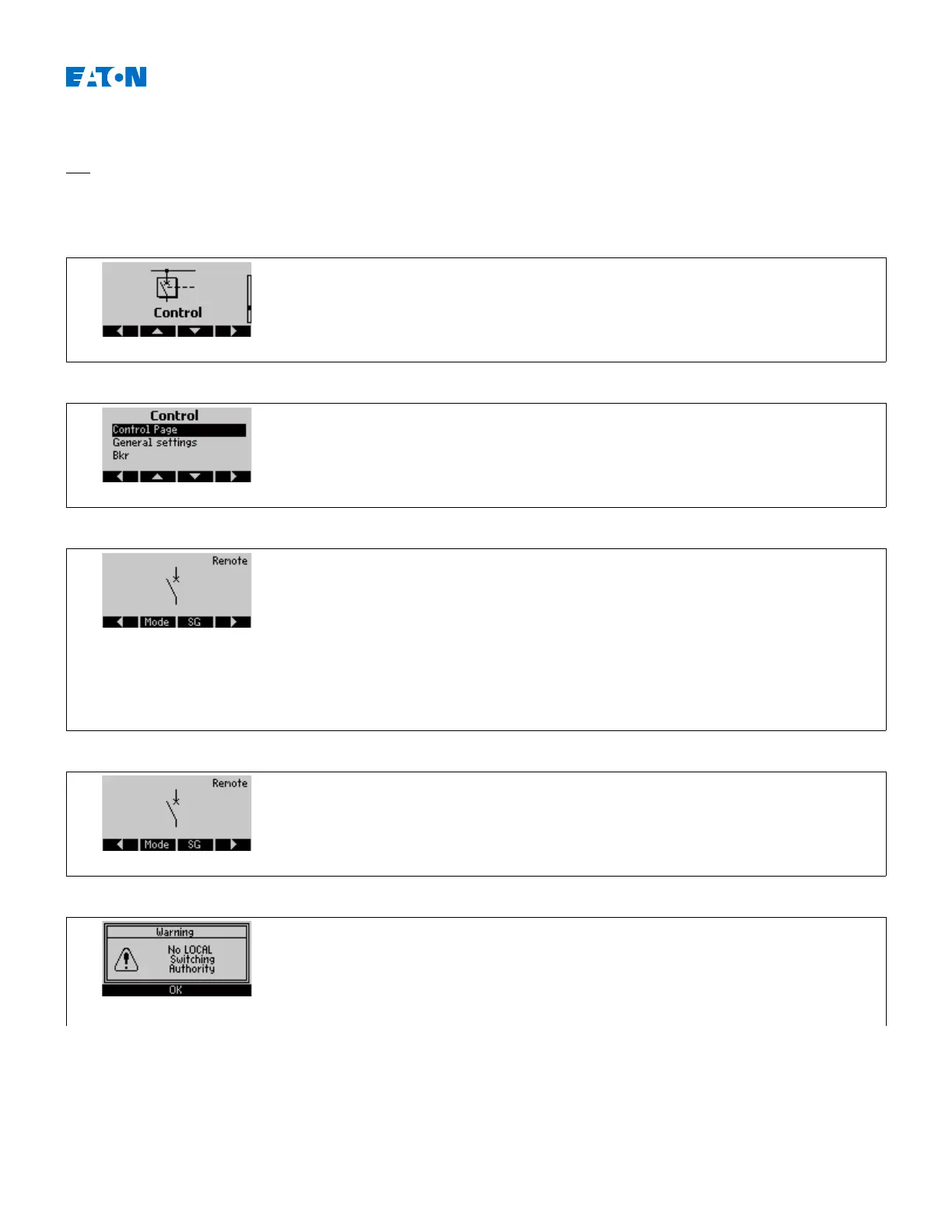

Change into the menu »Control« by pushing the »right arrow« softkey.
Change to the control page by pushing the »right arrow« softkey.
Information only: On the control page the current switchgear positions is displayed.
By means of the softkey »Mode« it can be switched to the menu »General Settings«.
In this menu switching authority and interlockings can be set.
By means of the softkey »SG« it can be switched to the menu »SG«. In this menu
specific settings for the switch gear can be done.
This page can be directly called up via the key “CTRL” at the front panel.
To execute a switching operation, change into the switching menu by pushing the
right arrow softkey button.
Executing a switching command via the devices HMI is only possible when the
switching authority is set to »Local«. If no switching authority is given, this has to be
set first to »Local« or »Local and Remote«.
With the softkey »OK« it can be switched back to the single line diagram page.
