Eaton EDR 3000 User Manual

EDR-3000 IM02602003E
Digital Inputs
Max. Input Voltage: 300 Vdc / 259 Vac
Input Current: DC <4 mA
AC <16 mA
Reaction Time: <20 ms
Fallback Time:
Shorted inputs
Open inputs
<30 ms
<90 ms
(Safe State of the Digital Inputs)
Switching Thresholds: Un = 24 Vdc, 48 Vdc, 60 Vdc,
110 Vac / dc, 230 Vac / dc
Un = 24 Vdc
Switching Threshold 1 ON:
Switching Threshold 1 OFF:
Min. 19.2 Vdc
Max. 9.6 Vdc
Un = 48 V / 60Vdc
Switching Threshold 2 ON:
Switching Threshold 2 OFF:
Min. 42.6 Vdc
Max. 21.3 Vdc
Un = 110 / 120 Vac / dc
Switching Threshold 3 ON:
Switching Threshold 3 OFF:
Min. 88.0 Vdc / 88.0 Vac
Max. 44.0 Vdc / 44.0 Vac
Un = 230 / 240 Vac / dc
Switching Threshold 4 ON:
Switching Threshold 4 OFF:
Min. 184 Vdc / 184 Vac
Max. 92 Vdc / 92 Vac
Terminals: Screw-type terminal
www.eaton.com 648

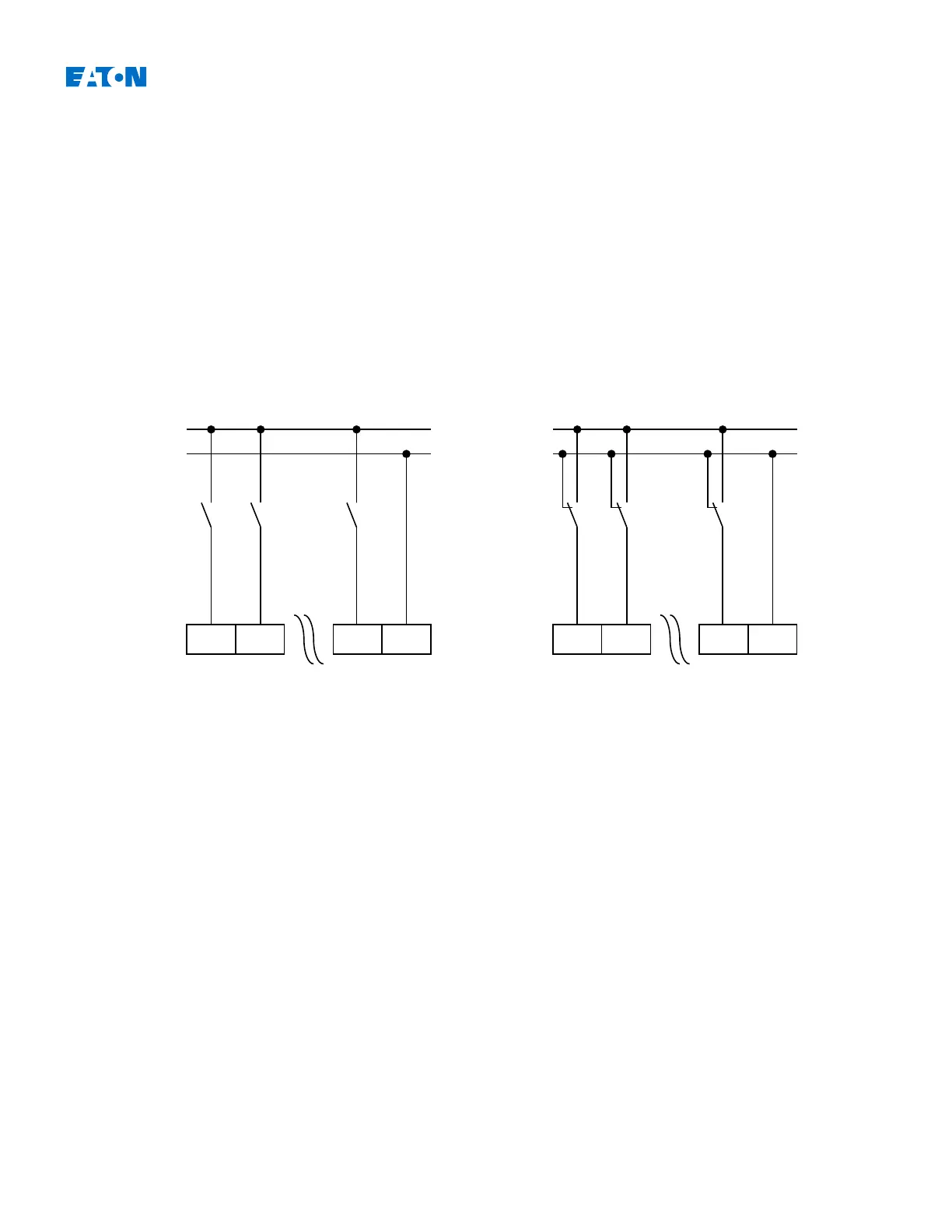

COMDI8DI2DI1 COMDI8DI2DI1
L+
L-
L+
L-
Open inputs Shorted inputs
