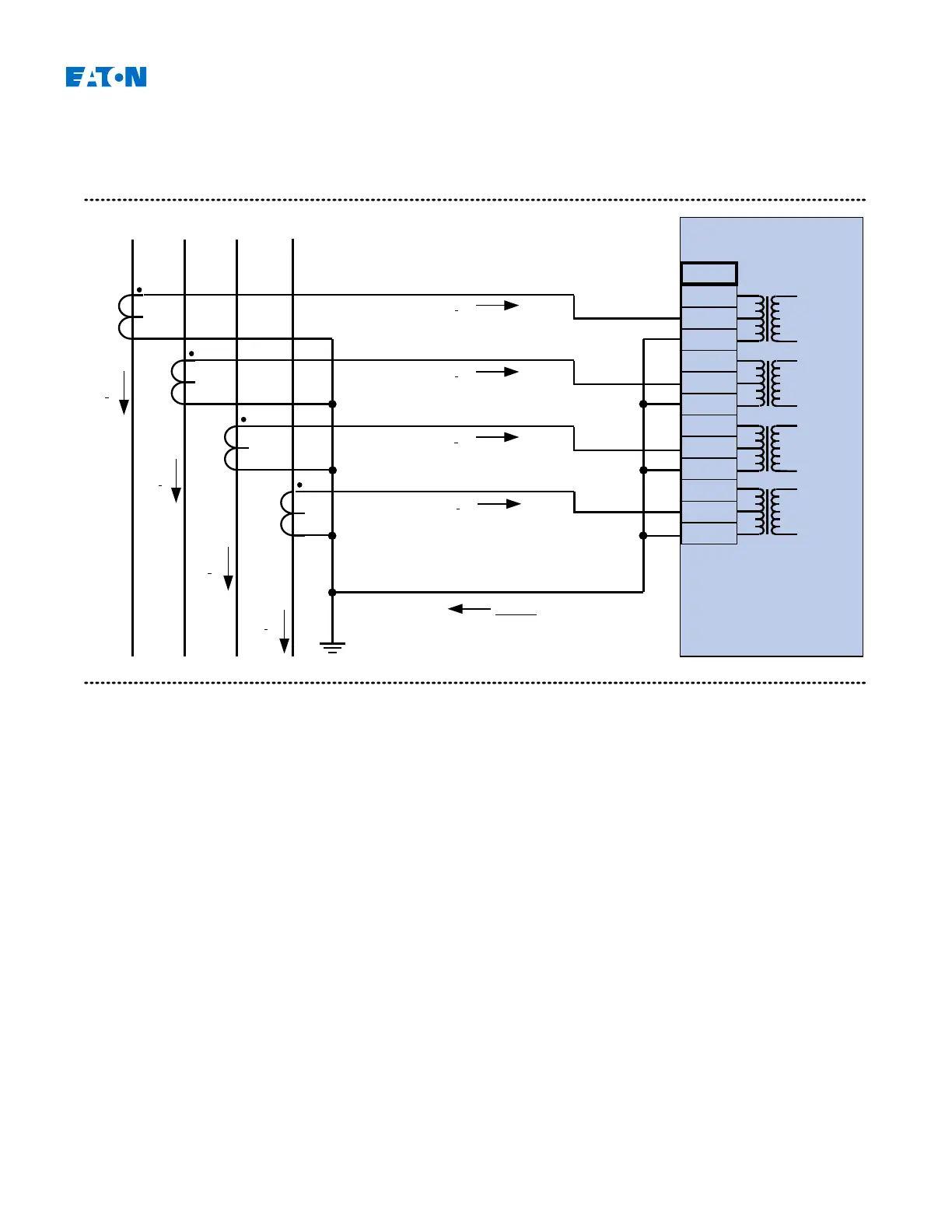

4-wire system, 4th CT on Neutral; In secondary = 5 A.
IA
1A
5A
N
IB
1A
5A
N
IC
1A
5A
N
IX
1A
5A
N
IB'
IC'
IA'
N
IN
IN'
IX meas=IN
IR calc = IG = IA + IB + IC + IN
IR calc´
