Edwards EV1000

2-6
Safety and Symbols
Monitor Display Symbols

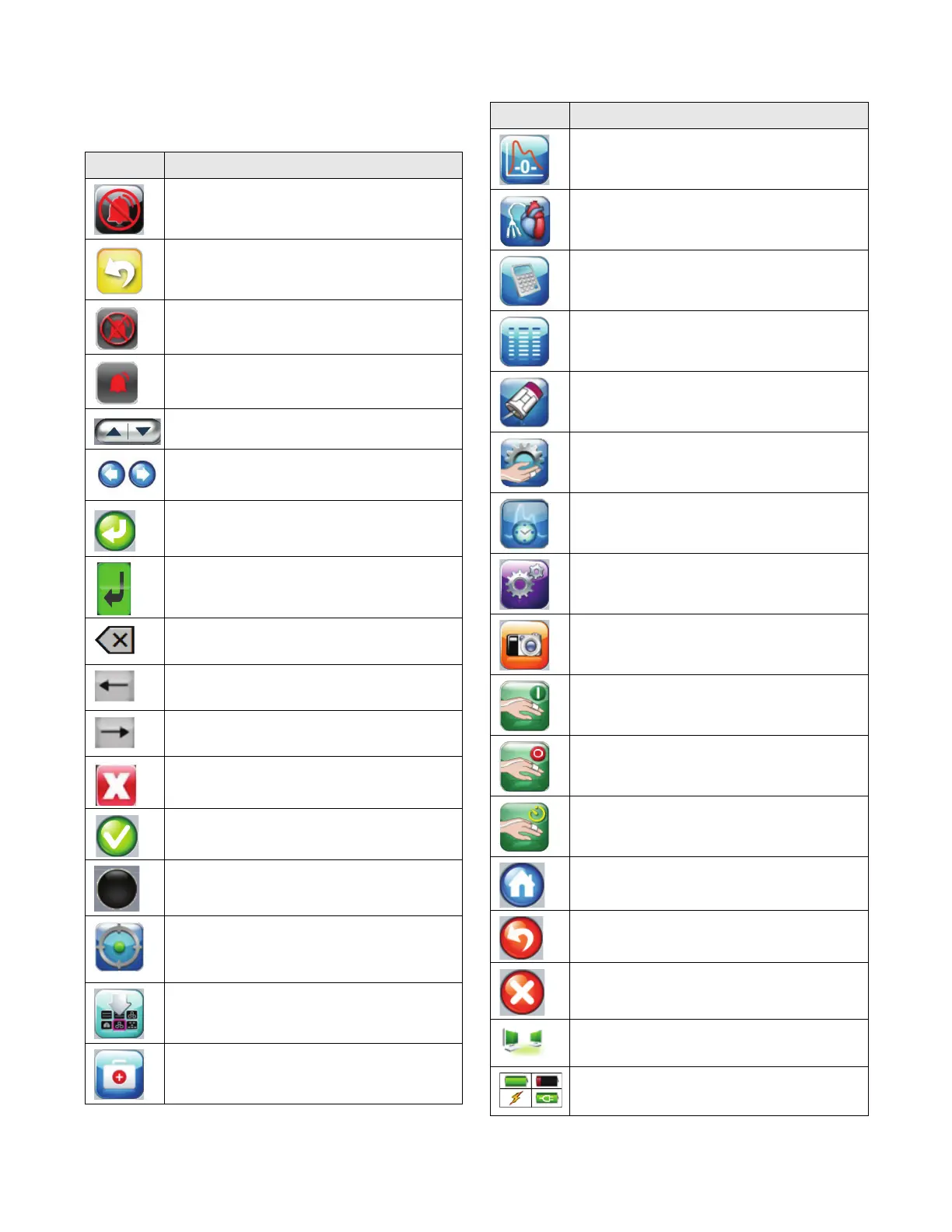

Table 2-1 Monitor Display Symbols
Symbol Description
Audible alarm silence button
Monitoring pause exit button
Symbol used to indicate the audible alarm indicator
for the parameter has been disabled.
Symbol used to indicate the audible alarm indicator
for the parameter has been enabled.
Vertical scroll buttons
Horizontal scroll buttons
Enter button
Keypad enter key
Keypad backspace key
Move cursor left by 1 character
Move cursor right by 1 character
Keypad cancel key
Item enabled
Item not enabled
GDT Tracking button
Monitor screen selection button
Clinical Actions menu button
Zero and waveform icon on Clinical Actions menu
CVP manual entry button on Clinical Actions menu
Derived value calculator button on Clinical Actions
menu
Event review button on Clinical Actions menu
Cuff Options button on Clinical Actions menu
Advanced Options button on Clinical Actions menu
Historical Data button on Clinical Actions menu
Settings menu button
Screen capture button
Start Monitoring button
Stop Monitoring button
Resume Monitoring button
Return to main monitoring screen
Return to previous menu
Cancel
HIS enabled icon on information bar
Battery life indicator icons on information bar
Table 2-1 Monitor Display Symbols (Continued)
Symbol Description
