Chapter 4: EV1000 Clinical Platform NI
Quick Start
his chapter is intended for experienced clinicians. It
provides brief instructions when monitoring with the
EV1000 Clinical Platform NI. Refer to Chapter 7:
"Methodology and Monitoring" for more detailed
information.
 Heart Reference Sensor*
 Pressure Controller*
 ClearSight Finger Cuff(s)*
 EV1000 Monitor
 EV1000 Pump-Unit
 Bedside Patient Monitor
 EV1000 Patient Monitor Adaptor Cable
 Ethernet Connection from Pump-Unit to EV1000
Monitor
 Power to EV1000 Monitor from Pump-Unit
 Component is an APPLIED PART (indicated by *) as
defined in IEC 60601-1 3
rd
Ed. In normal use this
component necessarily comes into physical contact with the
patient for the EV1000 Clinical Platform NI to perform its
function.
ClearSight Technology
Blood Pressure and
Hemodynamic Monitoring
The EV1000 Noninvasive System measures patient blood
pressure and provide continuous calculation of CO, SV and
SVV. SVR is calculated when a CVP value is available. The
ClearSight Finger Cuff measures arterial blood pressure by
sensing volumetric changes in the finger artery. Pressure
changes due to patient hand movement are compensated
using the Heart Reference Sensor (HRS)
1 Connect the system power cable and ethernet cable from
the Pump-Unit to the EV1000 Monitor.
2 Connect the Pressure Controller to the Pump-Unit.
3 Connect the Pump-Unit to AC mains.
4 Turn on power to the EV1000 Clinical Platform NI by
pressing the power button on the EV1000 Monitor.
5 All functions are accessed through the touch screen
6 Enter the patient information on New Patient Data
Screen, by touching each field to enter or select the
patient demographic data.

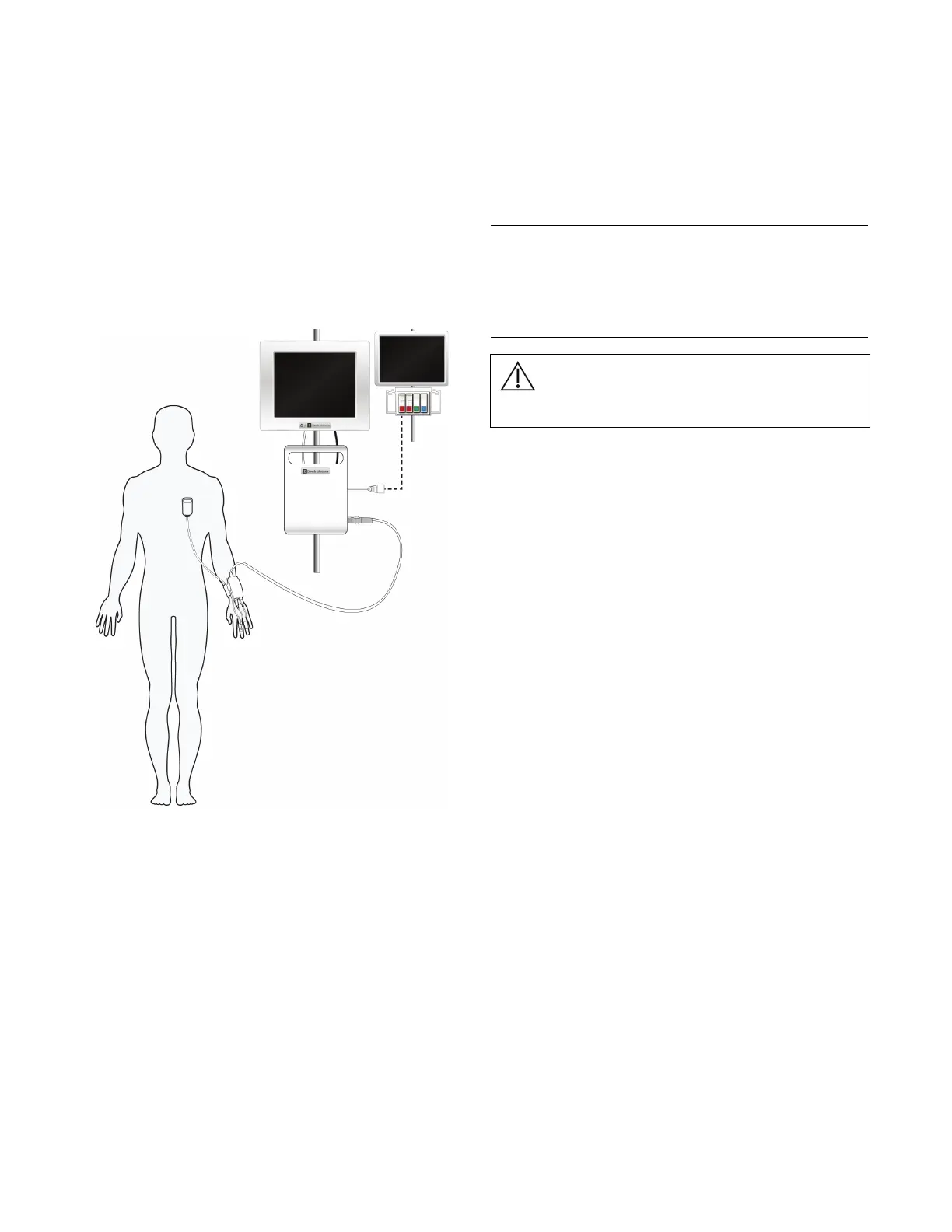

Figure 4-1 EV1000 Noninvasive System Cable
Connection
T








WARNING
Components that are not indicated as APPLIED PARTS
should not be placed in a location where the patient
may come into contact with the component.
