STP-iX457/iXU457 Series Turbomolecular Pump
MT-86E-001-F
Page 7
INTRODUCTION
1

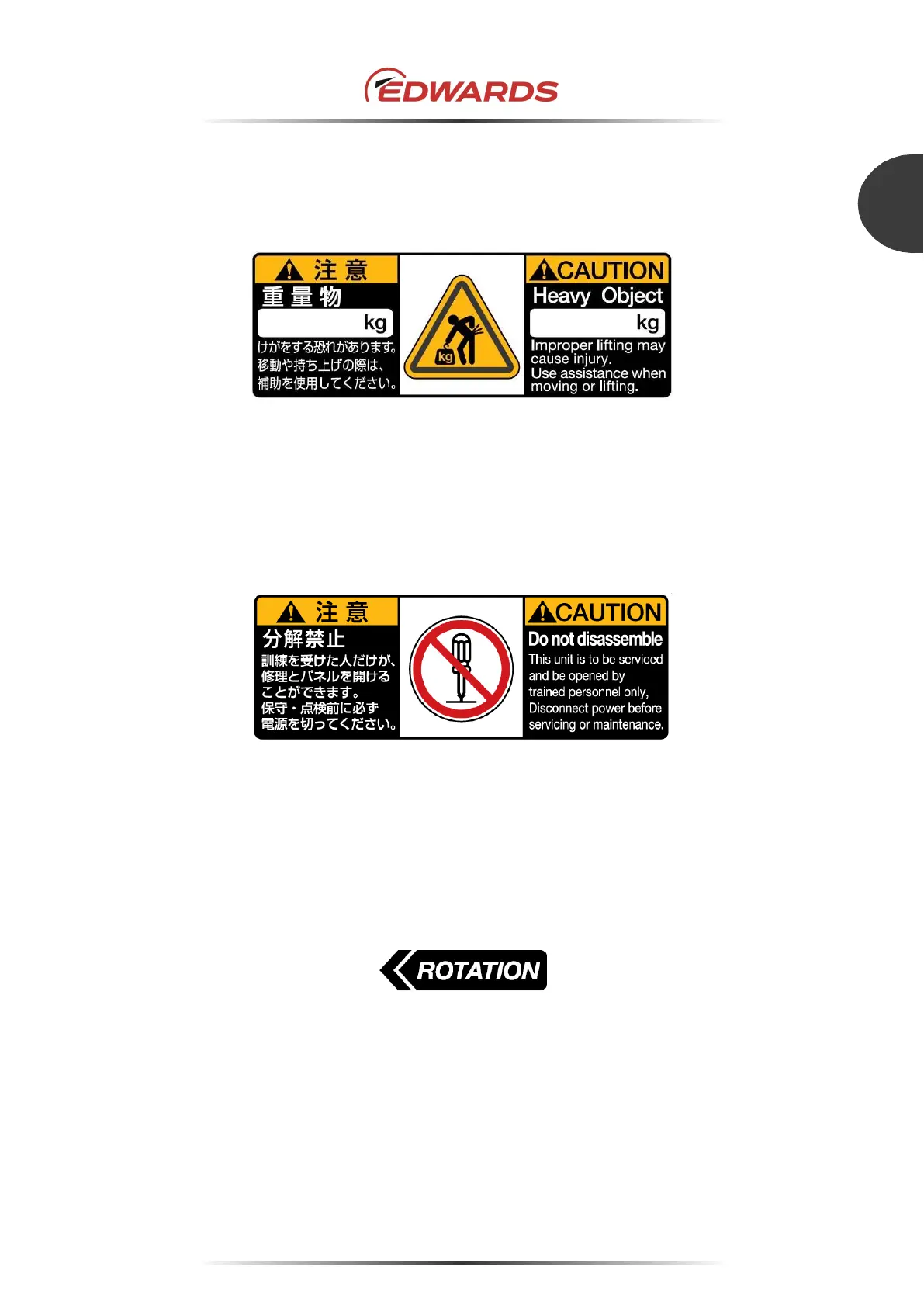

3. Heavy product caution label
This label is affixed to the product with a weight of 18 kg or more. Follow the precautions of
Section 3.2, "Unpacking and installation" so as not to cause any accident during handling.
Figure 3 - Heavy product caution label
4. Prohibition of disassembly label
This label prohibits the decomposition of the control unit. Follow Section 8, “MAINTENANCE
AND INSPECTION” for maintenance and inspection.
Figure 4 - Prohibition of disassembly label
5. Rotational direction instruction label
This label describes the rotational direction of the STP pump. The STP pump rotates in this
direction.
Figure 5 - Rotation instruction label
