Edwards STP-iX457 Series User Manual

STP-iX457/iXU457 Series Turbomolecular Pump
MT-86E-001-F
Page 13
TECHNICAL DATA
2
2.3 External appearance of the STP pump
Inlet
port flange
ISO100 ISO100F ISO160 ISO160F ICF152 ICF203 VG100 VG150
φA
130 165 180 225 152 203 182 235
φB
152 152 152 152 152 152 152 152
C 12 12 12 16 21 22 12 12
D
181 181 146 146 181 146 181 146
E 286 286 256 256 286 256 286 256
φF
- 145 - 200 130.2 181 160 210
G - 22.5
- 22.5 11.25 9 22.5 22.5
φH
- 9 - 11 8.4 8.4 12 12
I 197 197 167 167 197 167 197 167

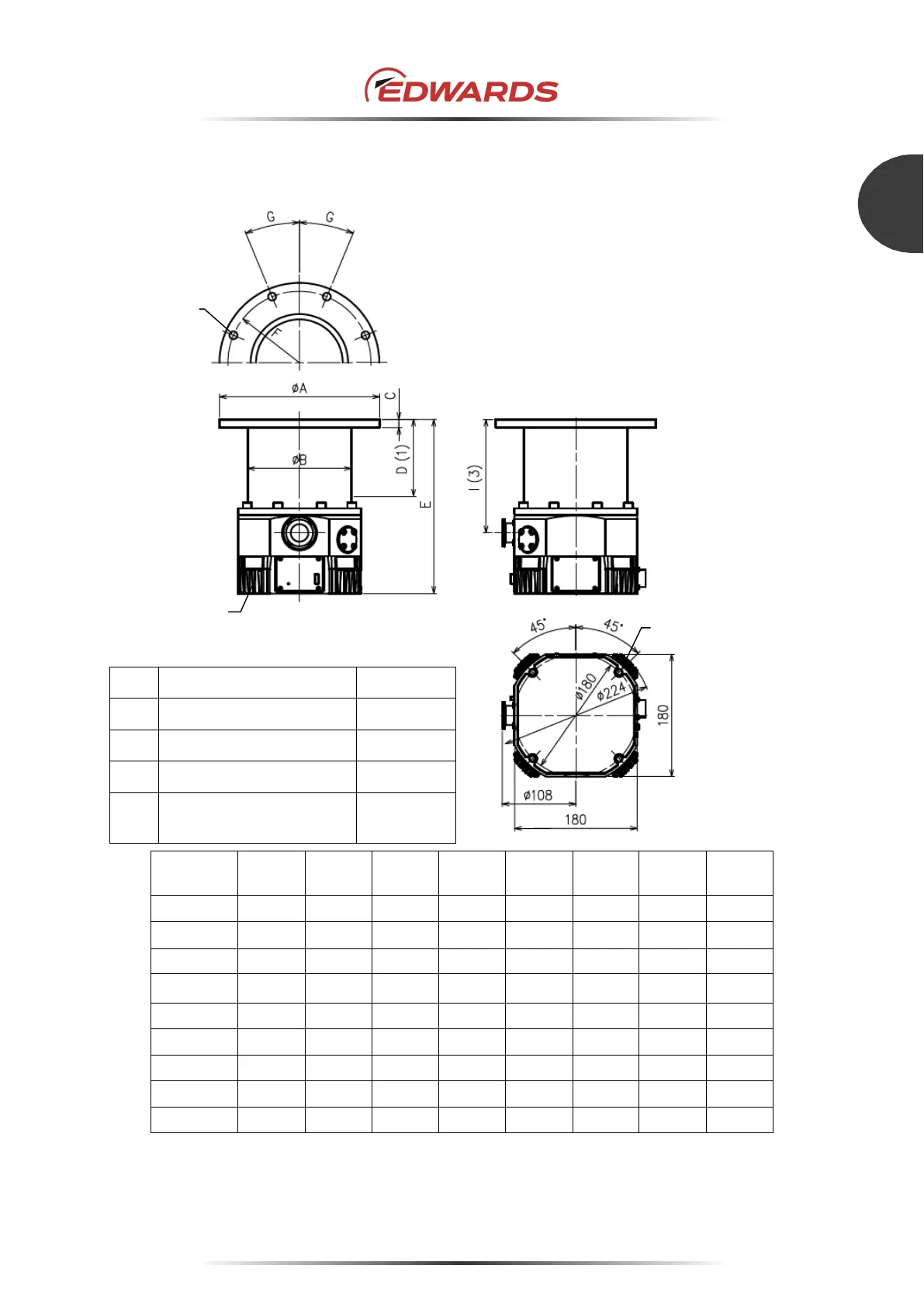

Figure 7 - External appearance of STP-iX457
No. Item Description
1 Center of gravity
2 Control unit
3 Outlet port flange KF25
4 Screw hole for securing the
base
4-M10
Depth 18
H
(2)
(4)
