STP-iX457/iXU457 Series Turbomolecular Pump
MT-86E-001-F
Page 25
INSTALLATION
3

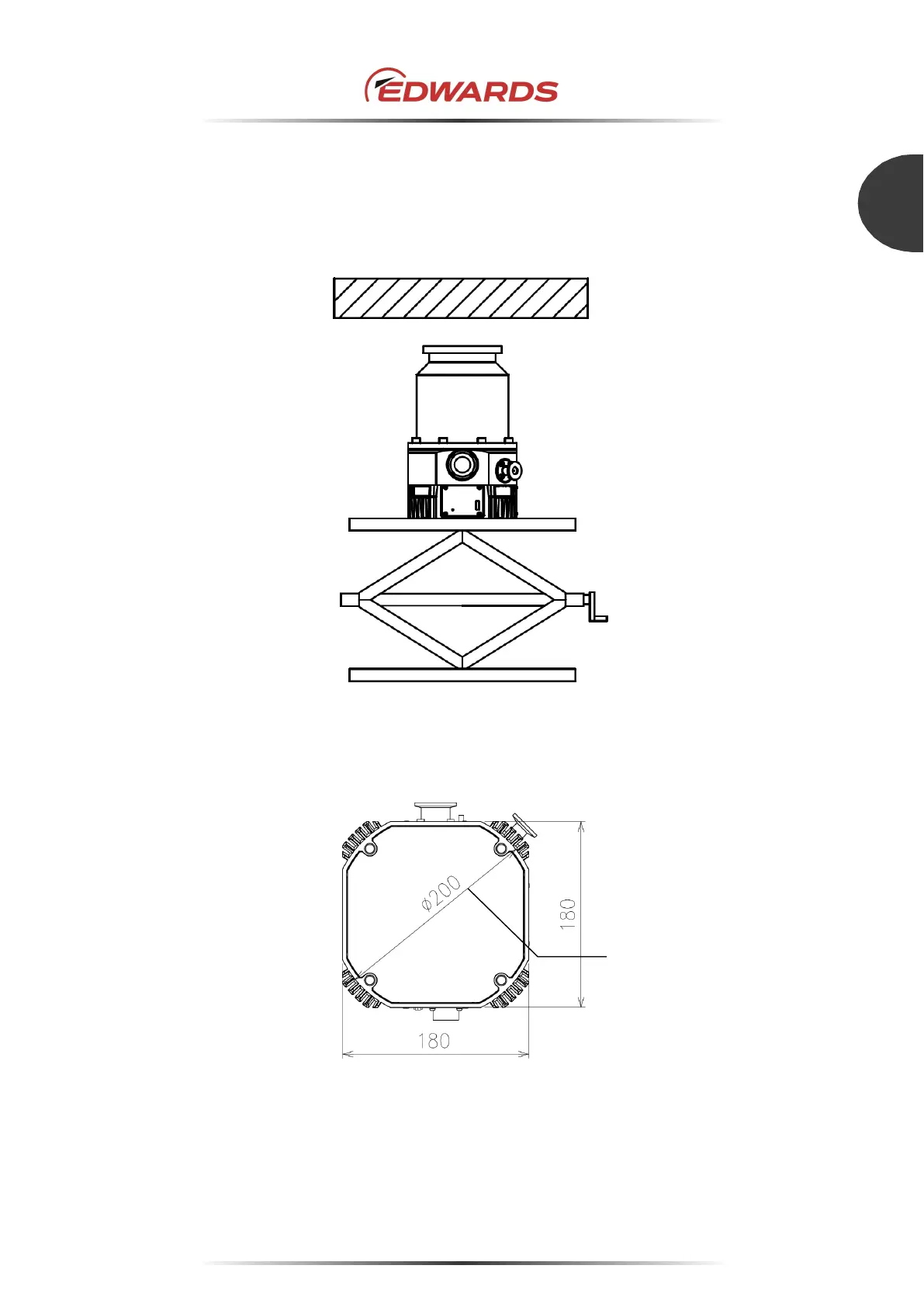

Use lifting devices when installing the STP pump under the equipment (see Figure 16). Moreover,
when jacking up the bottom of the control unit, place the STP pump on the table which is larger than
base size (see Figure 17). A device due to jacking up the STP pump should withstand the load of five
times or more the weight of the STP pump.
Figure 16 - Jack-up the STP pump
Figure 17 - Control unit bottom face
Maximum
diameter φ200
To Next Page
