2.4 Label affixing positions
Refer to Section 1.6, "Labels" for the details of the labels 1 to 4, and 7.
1 STP pump installation warning label
2 Heavy product caution label
3 Prohibition of disassembly label
4 Rotational direction instruction label
5 Name plate
6 Parts number
7 Hot surface warning label
8 Company logo

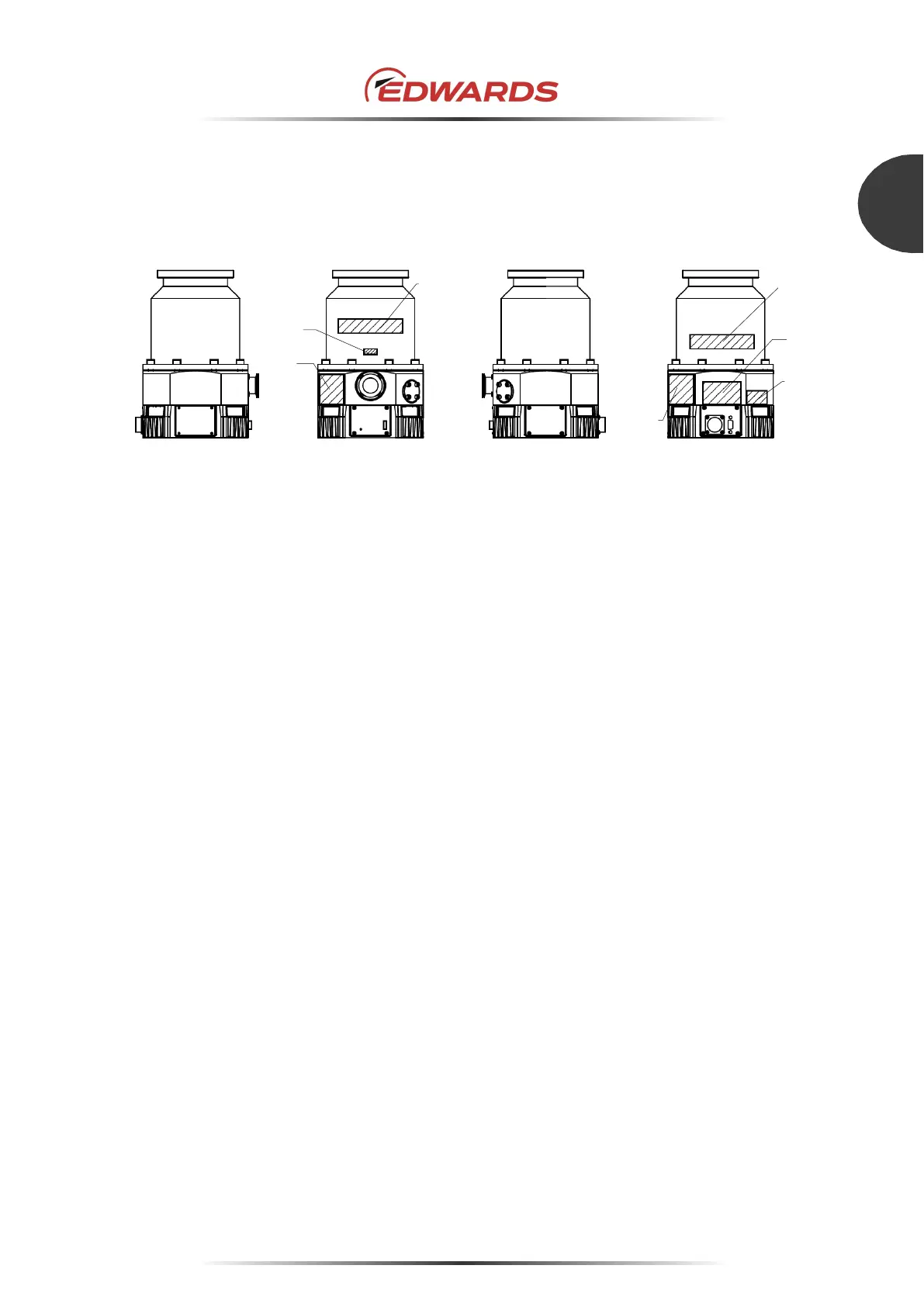

Figure 11 - Label affixing positions
1
3
, 7
7
8
4
6
5
2, 7
