Edwards STP-iX457 Series - X2 REMOTE Input Signal Pins (Contact Input)

STP-iX457/iXU457 Series Turbomolecular Pump
MT-86E-001-F
Page 61
4
OPERATION

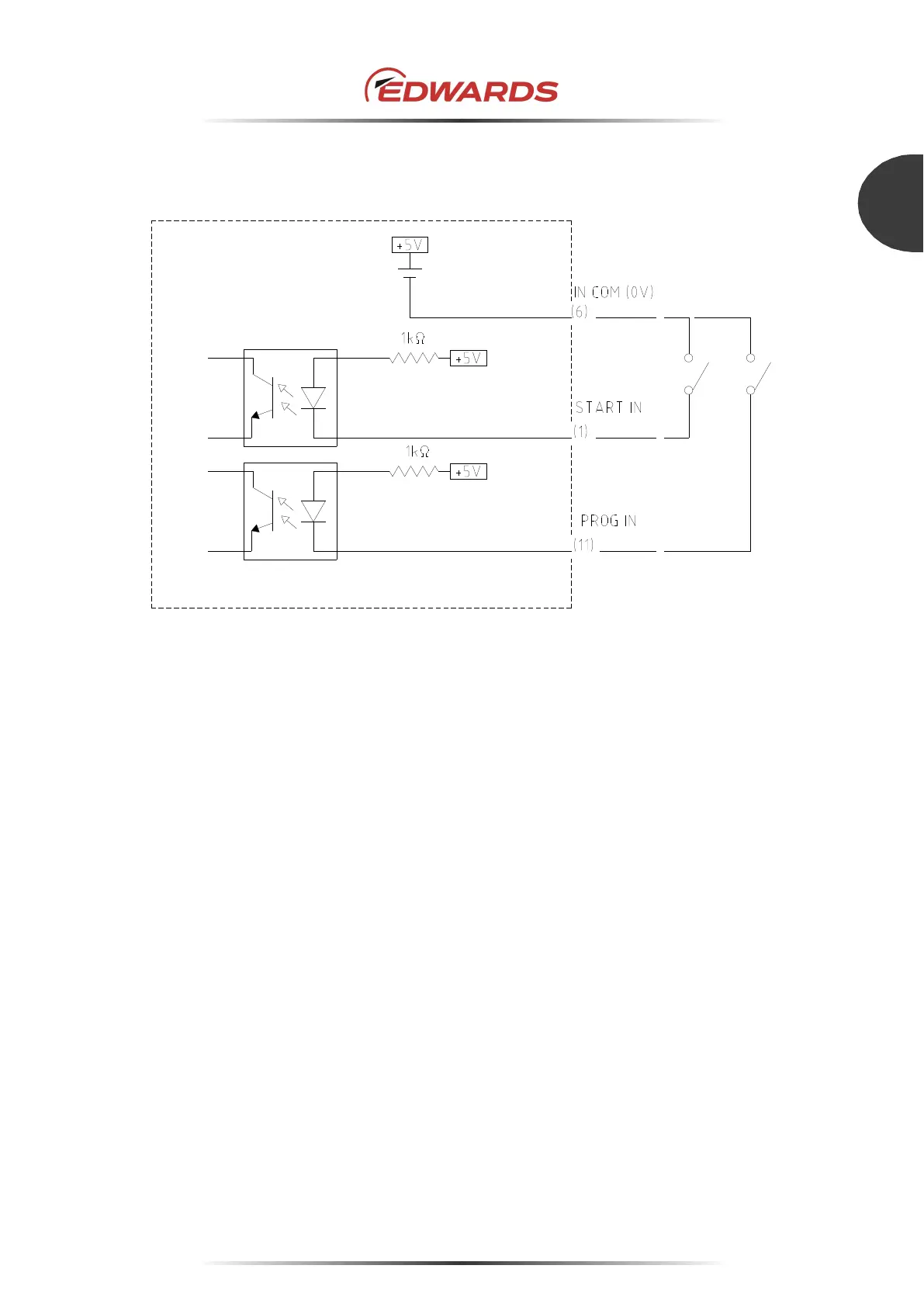

Figure 40 - X2 REMOTE input signal pins (contact input)
Note: 1 pin (0 V) is isolated from the frame ground.
Note: The input current of remote input signal is approx. 3.5 mA. Make sure the minimum applicable
load of the relay contact when the remote operation with the relay.
