Edwards STP-iX457 Series - X2 REMOTE Output Signal Pin Which Changes; According to Abnormality Notification; Warning Notification; X2 REMOTE Output Signal Pin Which Changes According to Rotation Speed

167 pages

To Next Page

To Previous Page

STP-iX457/iXU457 Series Turbomolecular Pump

MT-86E-001-F

Page

OPERATION

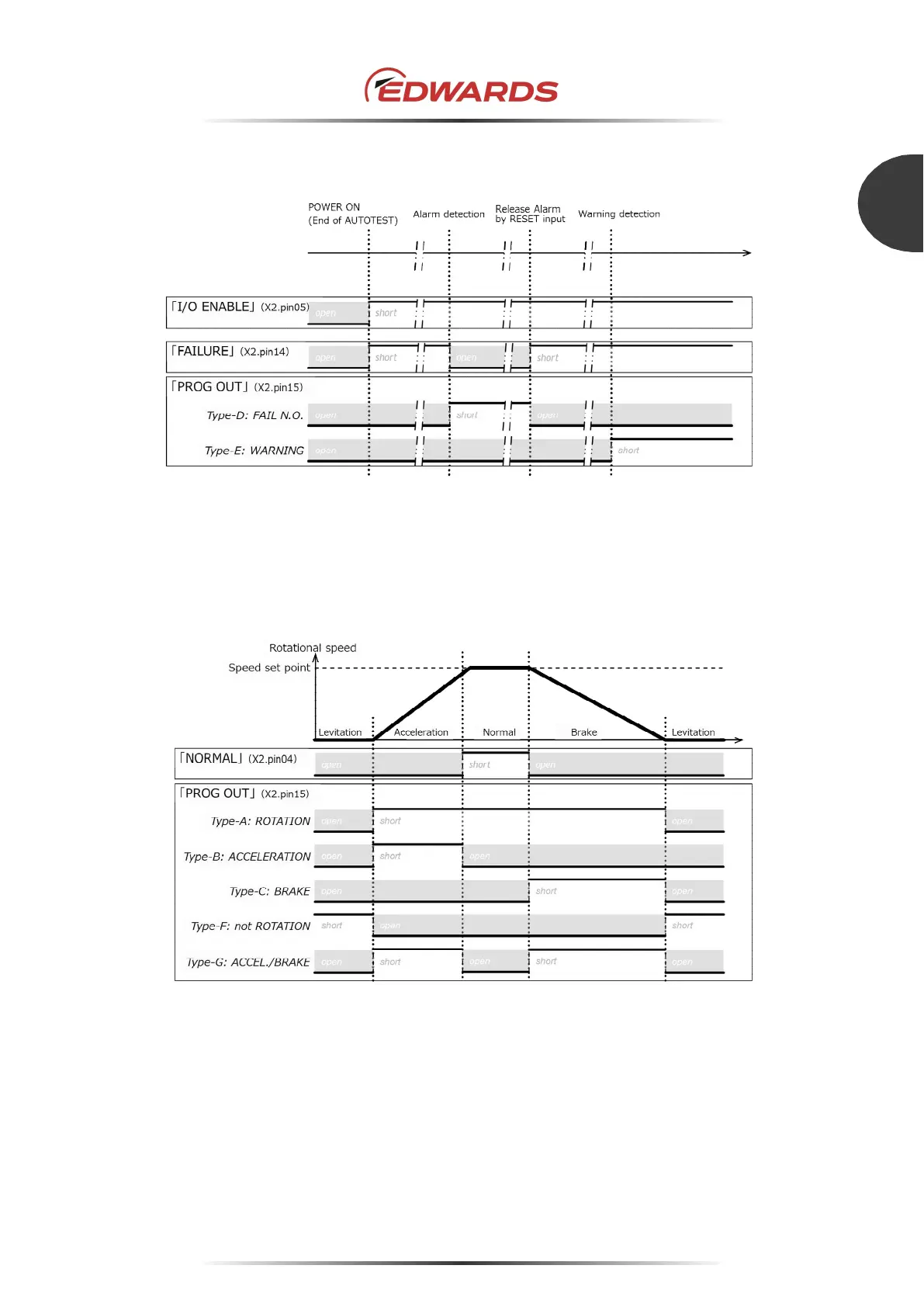

Figure 44 - X2 REMOTE output signal pin which changes according to abnormality notification /

warning notification

Figure 45 - X2 REMOTE output signal pin which changes according to rotation speed
