STP-iX457/iXU457 Series Turbomolecular Pump

MT-86E-001-F

Page 38

INSTALLATION

3.4.5 Rotation stopper

CAUTION

Use stainless steel rotation stopper on the base with a tensile strength class 70.

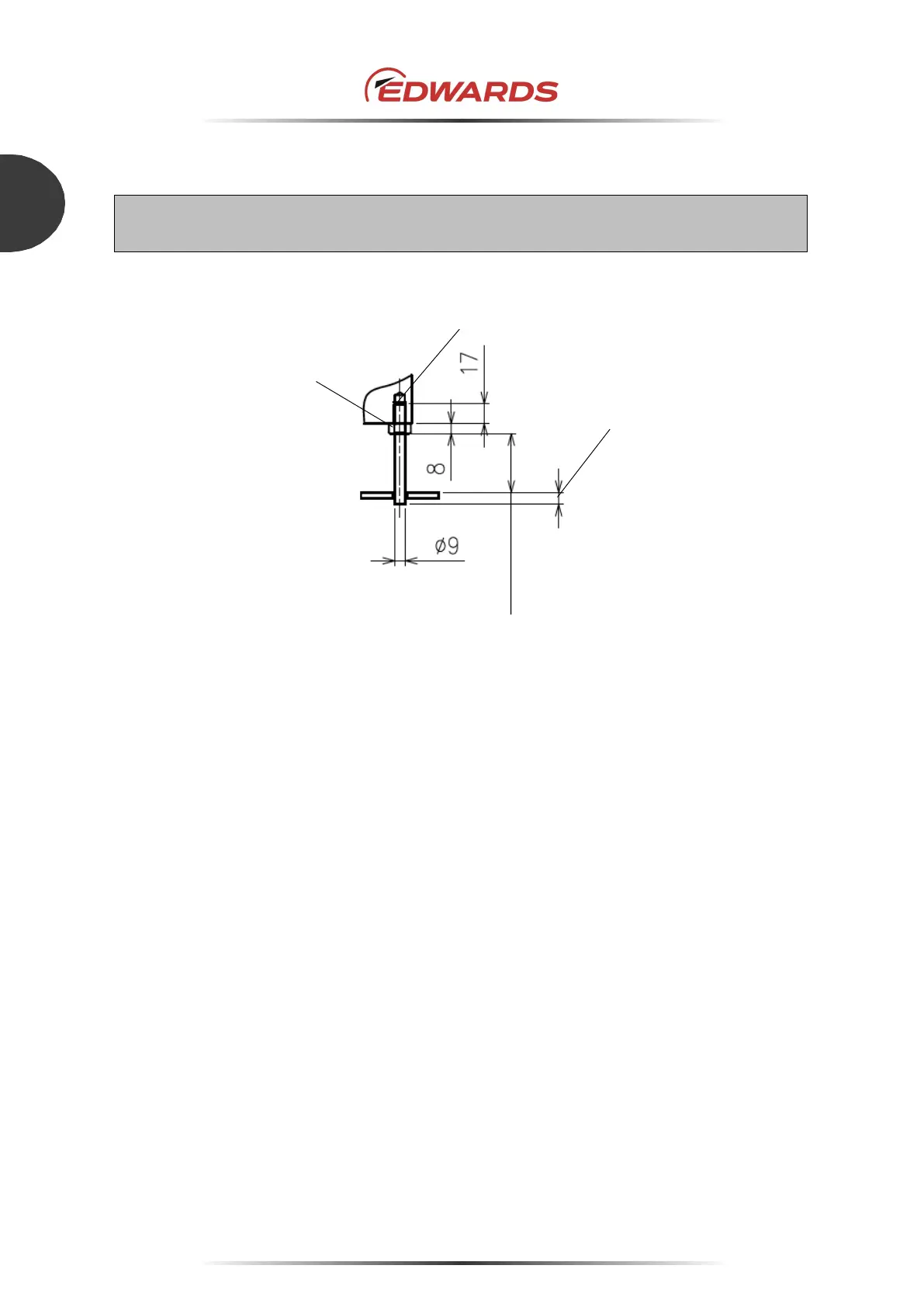

Figure 29 - Rotation stopper

M10 nut

Screw depth 18

More than twice the

plate thickness

50 or more
