Section H - Water System
Water Tanks

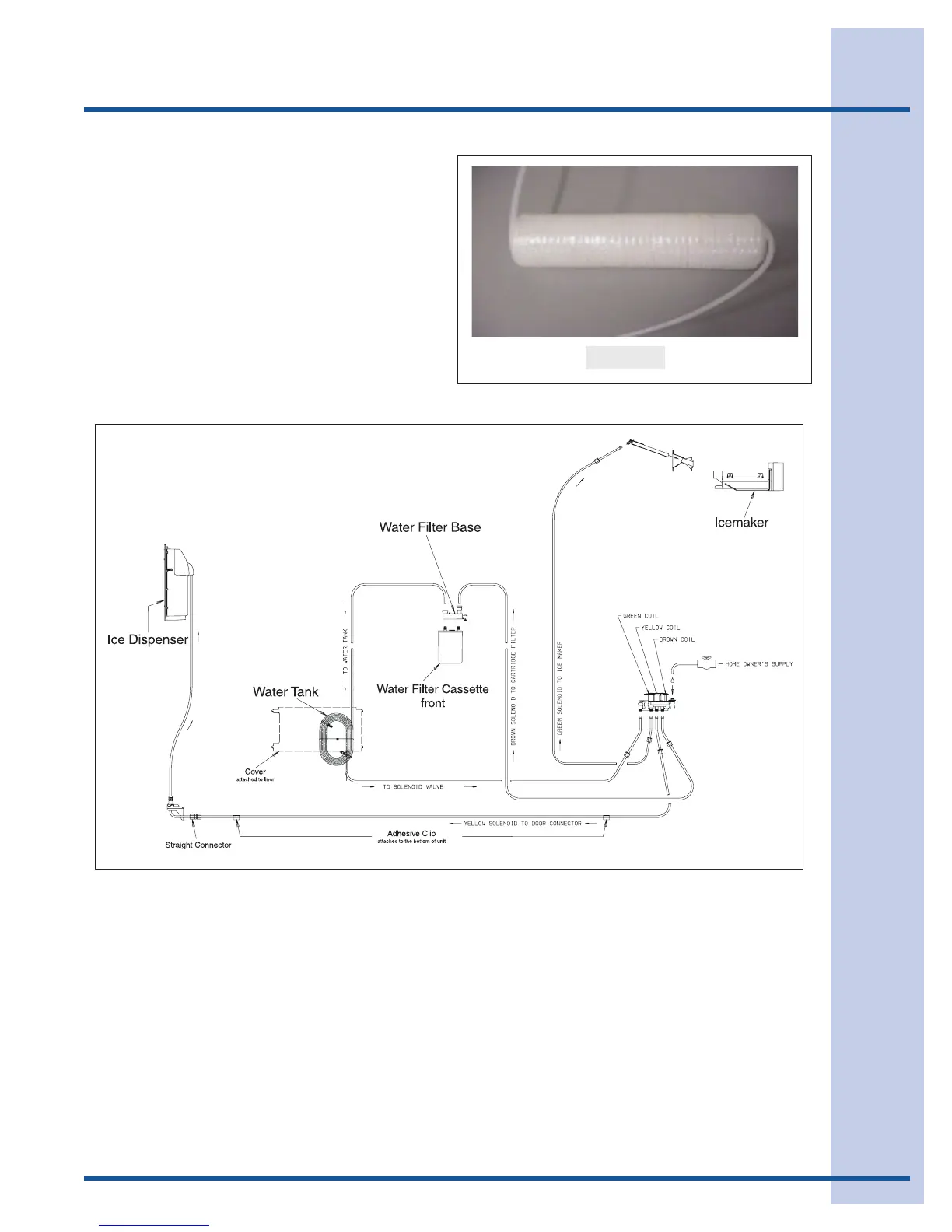

CounterDepthrefrigeratorswillhavearolltube
tankassemblyasshowninFigureH4.
Thewaterlinefromtheprimarywatervalve(single
coilvalve)goesbehindthetrim,locatedontheright
sideoftheinsidefoodcompartmentliner,tothewater
lter.Fromthewaterlter,thelinegoestothewater
tank, then to the secondary water valve (two coil
valve).Thetwocoilvalvedispenseswatertotheice
makerandtothedispenserinthedoor.Byllingthe
icemakerforthewatertank,youwillgetchilledwater
totheicemakerhelpingtoincreaseiceproduction.
SeeFigureH5forwatersystemowdiagrams.
Figure H4
FigureH5
Front Filter System
Figure H5
