Electrolux E23CS75DSS0 - Door Ajar LED (Flashing Green)

42
Section C - Electronic Control System

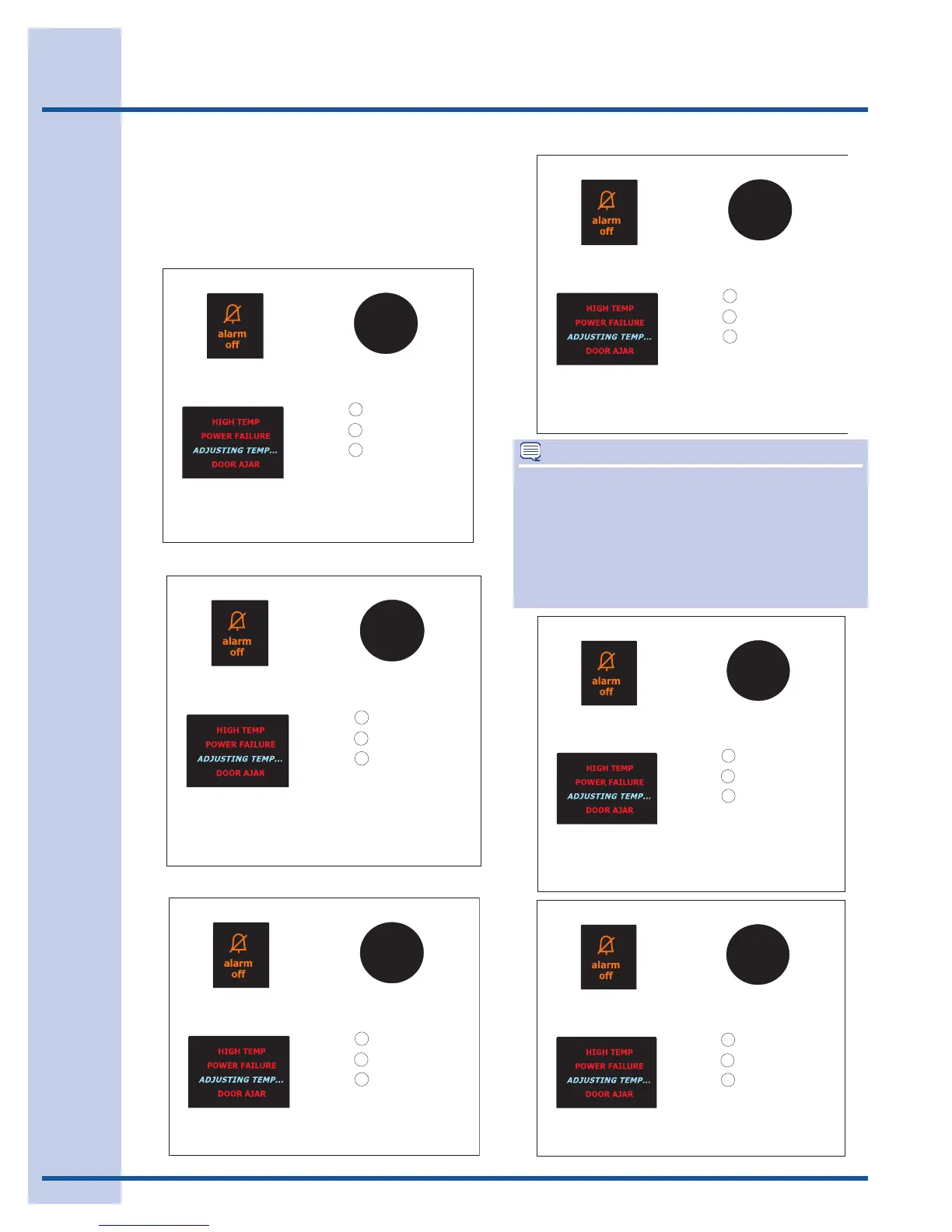

Door Ajar LED (Flashing Green)
Eitherdoorisopenforveminutes.LEDblinksand
thecontrolbeeps.Conditionisresetifthedooris
closedortheResetbuttonispressed.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Fresh Food and/or Freezer doors have been
open for at least five minutes.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Fresh Food and/or Freezer doors have been
open for at least five minutes and temperatures
have exceeded recommended limits.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Power has been off.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Power has been off and temperatures have
exceeded recommended limits.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Te mperatures have exceeded recommended
limits. See Use & Care Guide.
Reset
Top Right Corner
Top Right Corner
Centered between
displays
Power Failure
High
Door
Example 2
Example 1
Alarm has been turned OFF by user.
NOTE
Iftheuserunplugstheunitandthesetpointshave
beenreached,the“PowerOff”indicatorwillbe
ONwhentheunitispluggedbackin(POR).If
theuserhastheunitunpluggedlongenoughto
causeanunsafetemperaturecondition,theHigh
Temp”indicatorwillalsobeONwhentheunitis
pluggedbackin.
