Section C - Electronic Control System
F
L
A
P
P
E
R
S
O
L
E
N
O
I
D
1
2
3
4
5
6
1
2
3
4

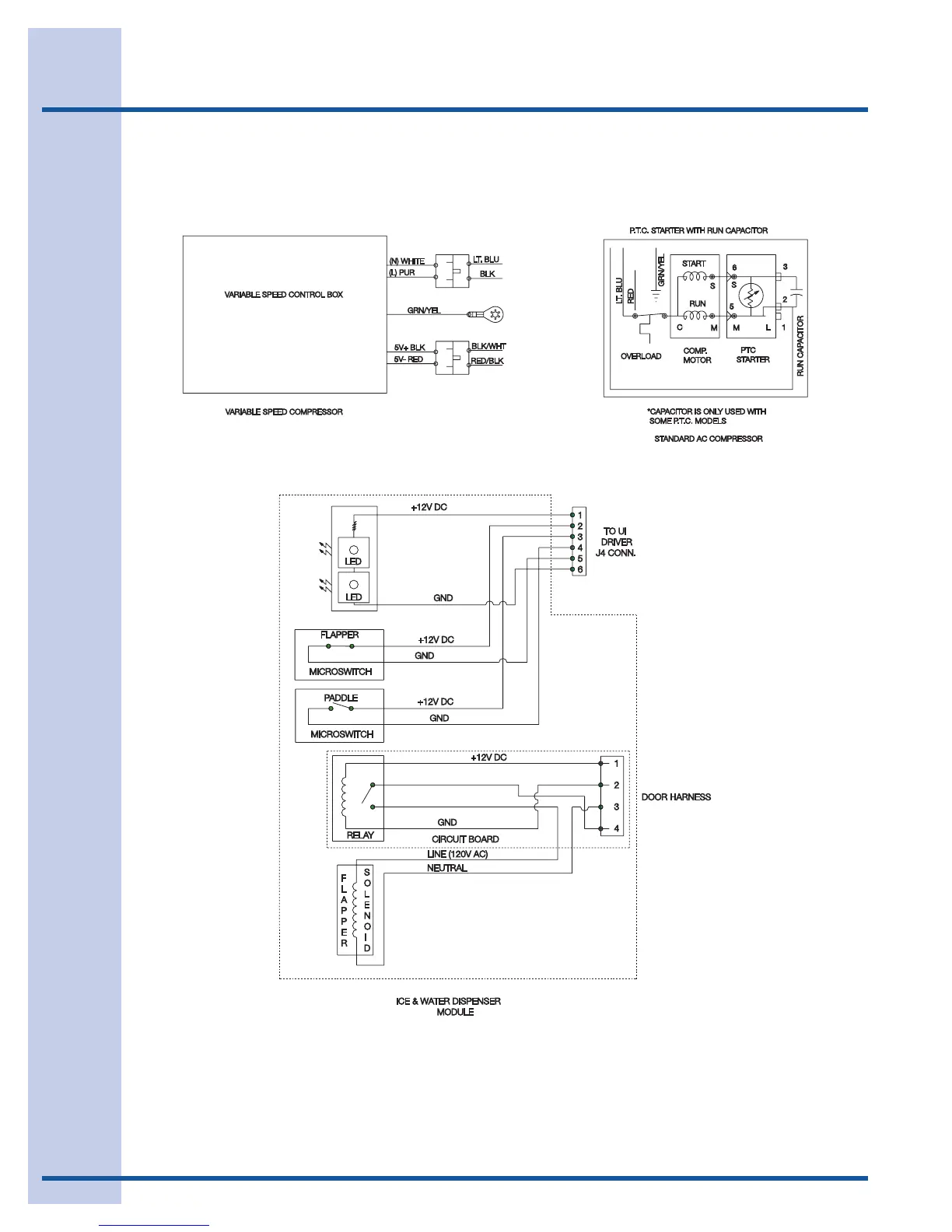

DOOR HARNESS
RELAY
NEUTRAL
LINE (120V AC)
CIRCUIT BOARD
GND
+12V DC
MICROSWITCH
MICROSWITCH
+12V DC
+12V DC
GND
GND
GND
+12V DC
LED
LED
TO UI
DRIVER
J4 CONN.
ICE & WATER DISPENSER
MODULE
PADDLE
FLAPPER
VARIABLE SPEED CONTROL BOX
VARIABLE SPEED COMPRESSOR
(N) WHITE
LT. BLU
(L) PUR
BLK
GRN/YEL
5V+ BLK
5V- RED
BLK/WHT
RED/BLK
P. T.C. STARTER WITH RUN CAPACITOR
STANDARD AC COMPRESSOR
*CAPACITOR IS ONLY USED WITH
SOME P. T.C. MODELS
OVERLOAD
COMP.
MOTOR
PTC
STARTER
START
C
M
RUN
S
M
L 1
5
2
3
S
6
RUN CAPACITOR
GRN/YEL
RED LT. BLU
