Electrolux E23CS75DSS0 - Page 92

92
Section F - Ice Maker

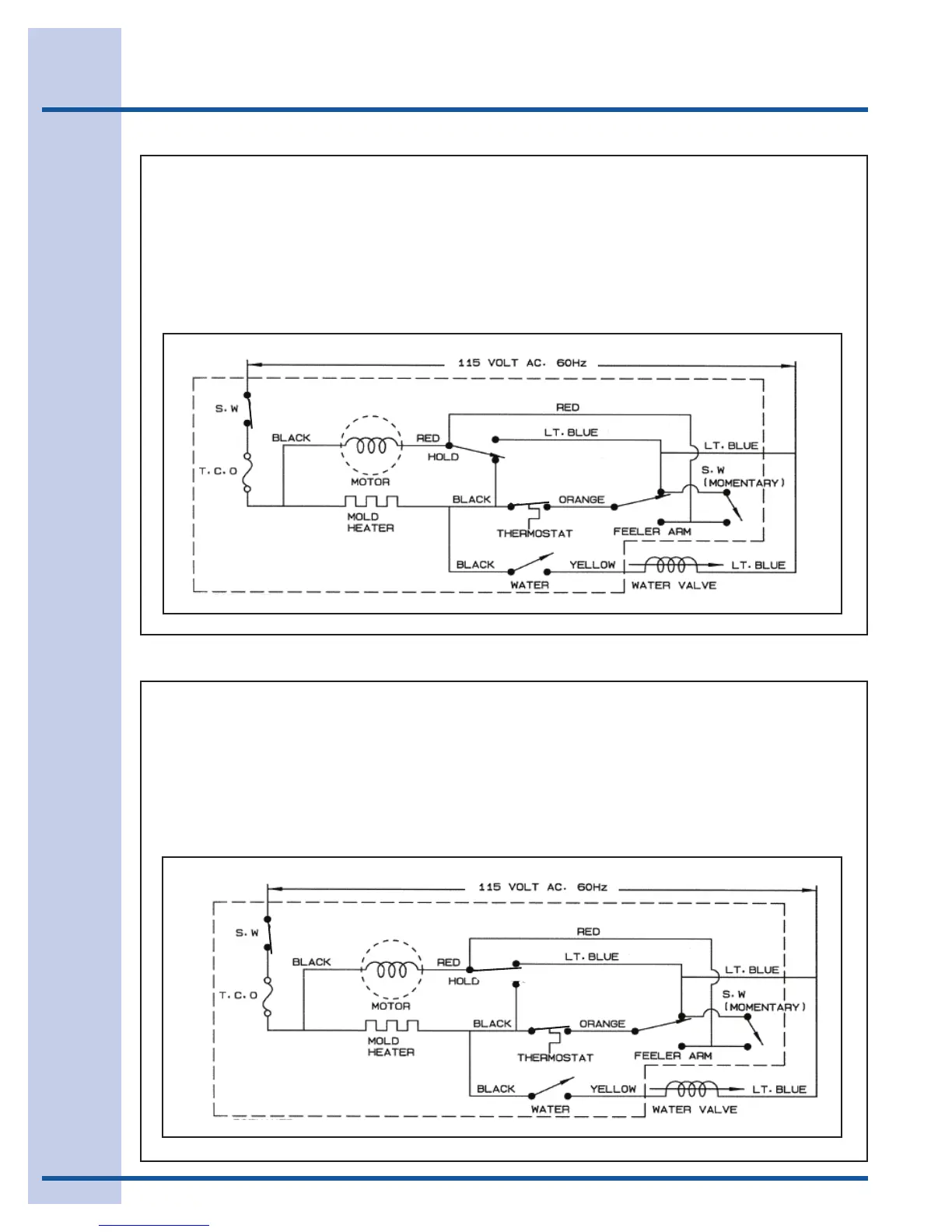

2
•IceMakerconnectedtoelectricity.
•Moldtemperatureabove9°F.
•Thermostatcloses.
•Motorstarting.
•Moldstartingtoheat.
•ControlArminthedownposition.
•FeelerArmSwitchclosedCtoNO.
•HoldSwitchclosedCtoNC.
•WaterFillSwitchopen.
3
•IceMakerconnectedtoelectricity.
•Moldtemperatureabove9°F.
•Thermostatclosed.
•Motorstartingtorotate.
•Moldstartingtoheat.
•ControlArminthedownposition.
•FeelerArmSwitchclosedCtoNO.
•HoldSwitchclosedCtoNC.
•WaterFillSwitchopen.
F 8
599485595 August 2007
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat closes.
Motor starting.
Mold starting to heat.
Control Arm in the dowm position.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NC.
Water Fill Switch open.
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat closed.
Motor starting tp rotate.
Mold starting to heat.
Control Arm in the dowm position.
SFeeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch open.
2
3
F 8
599485595 August 2007
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat closes.
Motor starting.
Mold starting to heat.
Control Arm in the dowm position.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NC.
Water Fill Switch open.
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat closed.
Motor starting tp rotate.
Mold starting to heat.
Control Arm in the dowm position.
SFeeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch open.
2
3
