97
12
•IceMakerconnectedtoelectricity.
•Moldtemperatureabove9°F.
•Thermostatopen.
•Motorisrotating.
•Moldheaterisinserieswithwatervalve.
•ControlArmswingingdown.
•FeelerArmSwitchclosedCtoNO.
•HoldSwitchclosedCtoNO.
•WaterFillSwitchclosed.
F 13
599485595 August 2007

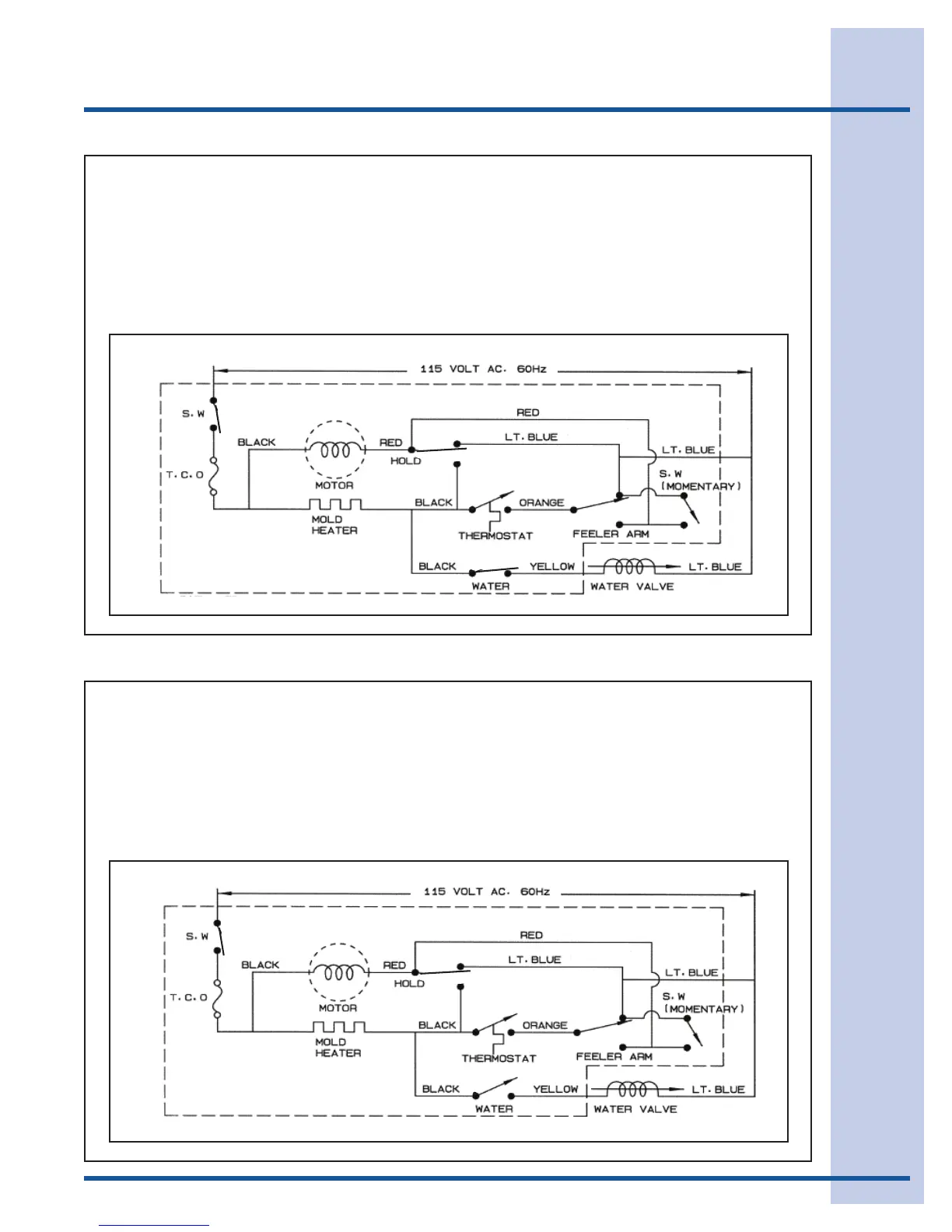

Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat open.
Motor is rotating.
Mold Heater is in series with water valve.
Control Arm swinging down.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch closed.
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat open.
Motor is rotating.
Mold Heater off.
Control Arm swinging down.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch open.
12
13
13
•IceMakerconnectedtoelectricity.
•Moldtemperatureabove9°F.
•Thermostatopen.
•Motorisrotating.
•Moldheateroff.
•ControlArmswingingdown.
•FeelerArmSwitchclosedCtoNO.
•HoldSwitchclosedCtoNO.
•WaterFillSwitchopen.
F 13
599485595 August 2007
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat open.
Motor is rotating.
Mold Heater is in series with water valve.
Control Arm swinging down.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch closed.
Ice Maker connected to electricity.
Mold temperature above 9 F.
Thermostat open.
Motor is rotating.
Mold Heater off.
Control Arm swinging down.
Feeler Arm Switch closed C to NO.
Hold Switch closed C to NO.
Water Fill Switch open.
12
13
Section F - Ice Maker
