Emerson Micro Motion 9739 MVD

Measurementsupport
Tip
ForT-Seriessensorsonly,youhavetheoptiontoperformaD3andD4calibrationtoimprovethe
accuracyofthedensitymeasurementiftheuiddensityisoutsideofthe0.8g/cm
3
to1.2g/cm
3
density
range.IfyouchoosetoperformtheD3andD4calibration,donotperformtheD1andD2calibration.
Procedure
ToperformaD1andD2calibration,seeFigure9-2.

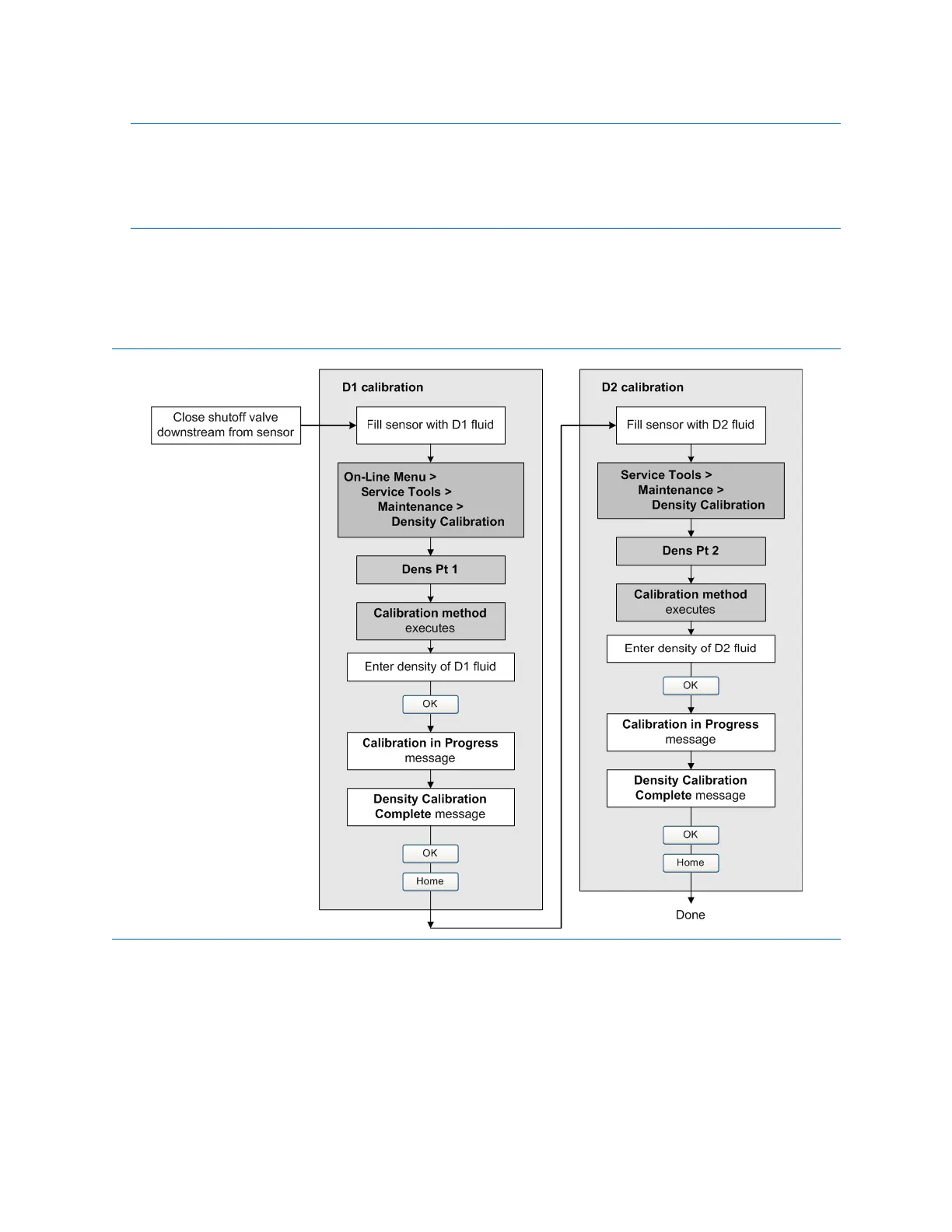

Figure9-2D1andD2densitycalibrationusingFieldCommunicator
9.4PerformaD3andD4densitycalibration(T-Series
sensorsonly)
ForT-Seriessensors,theoptionalD3andD4calibrationcouldimprovetheaccuracyofthedensity
measurementiftheuiddensityisoutsideofthe0.8g/cm
3
to1.2g/cm
3
densityrange.
ConfigurationandUseManual
171
