Configureprocessmeasurement
Procedure
1.SpecifySensorType.
•Straight-tube(T-Series)
•Curved-tube(allsensorsexceptT-Series)
2.Settheowcharacterizationparameters.Besuretoincludealldecimalpoints.
•Forstraight-tubesensors,setFCF(FlowCalorFlowCalibrationFactor),FTG,andFFQ.
•Forcurved-tubesensors,setFlowCal(FlowCalibrationFactor).
3.Setthedensitycharacterizationparameters.
•Forstraight-tubesensors,setD1,D2,DT,DTG,K1,K2,FD,DFQ1,andDFQ2.
•Forcurved-tubesensors,setD1,D2,TC,K1,K2,andFD.(TCissometimesshownasDT.)
5.1.1Sourcesandformatsforcharacterizationparameters
Differentsensortagsdisplaycharacterizationparametersdifferently,andoldersensorsmaynothaveall
therequiredparametersonthetag.
Samplesensortags
Samplesensortagsareshowninthefollowingillustrations:
•Figure5-1:Oldercurved-tubesensors(allsensorsexceptT-Series)
•Figure5-2:Newercurved-tubesensors(allsensorsexceptT-Series)
•Figure5-3:Olderstraight-tubesensors(T-Series)
•Figure5-4:Newerstraight-tubesensors(T-Series)

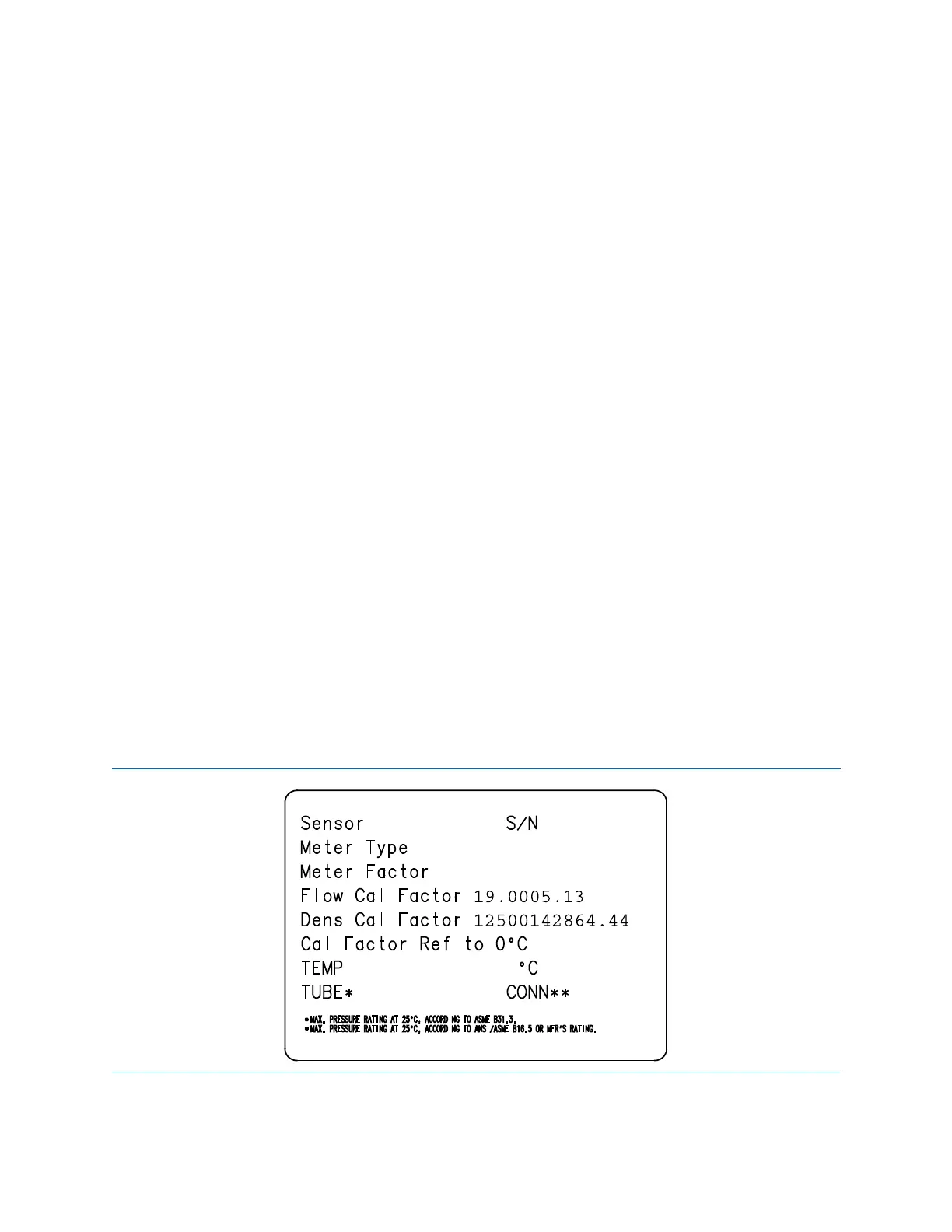

Figure5-1Tagonoldercurved-tubesensors(allsensorsexceptT-Series)
