Configureprocessmeasurement

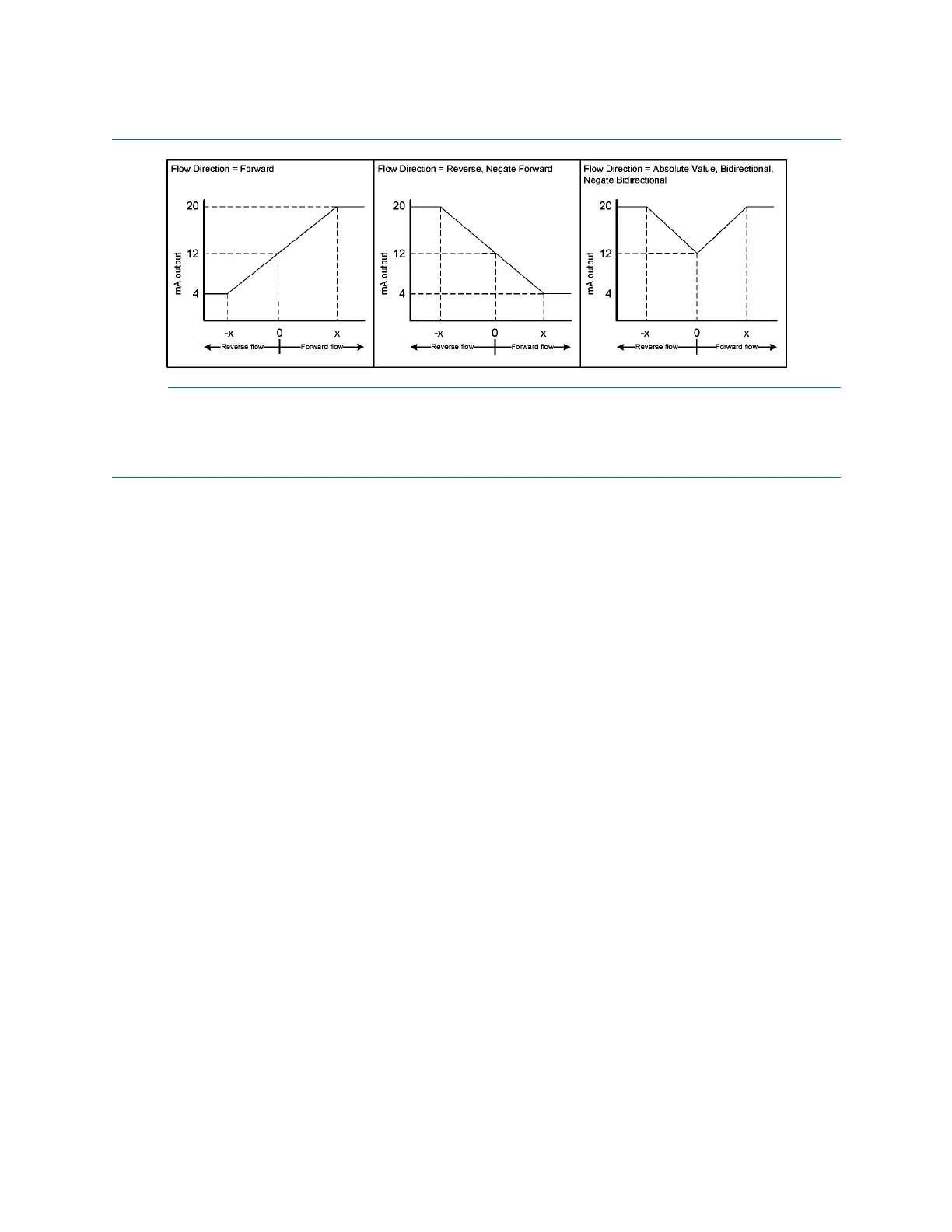

Figure5-6EffectofFlowDirectiononthemAoutput:LowerRangeValue<0
Notes
•LowerRangeValue=−x
•UpperRangeValue=x
tExample:FlowDirection=ForwardandLowerRangeValue=0
Conguration:
•FlowDirection=Forward
•LowerRangeValue=0g/s
•UpperRangeValue=100g/s
Result:
•Underconditionsofreverseoworzeroow,themAoutputis4mA.
•Underconditionsofforwardow,uptoaowrateof100g/s,themAoutputvariesbetween
4mAand20mAinproportiontotheowrate.
•Underconditionsofforwardow,iftheowrateequalsorexceeds100g/s,themAoutputwillbe
proportionaltotheowrateupto20.5mA,andwillbelevelat20.5mAathigherowrates.
tExample:FlowDirection=ForwardandLowerRangeValue<0
Conguration:
•FlowDirection=Forward
•LowerRangeValue=−100g/s
•UpperRangeValue=+100g/s
