150
Reference Manual
00809-0100-2460, Rev DE
Service and Troubleshooting
October 2018
Service and Troubleshooting
6.27.2 Enraf
®
The Enraf modem has a switch (S3) that allows you to set the Baud Rate to 1200, 2400, or 4800. The
proper setting depends on what is supported by the connected field devices. 1200 is the standard
setting.

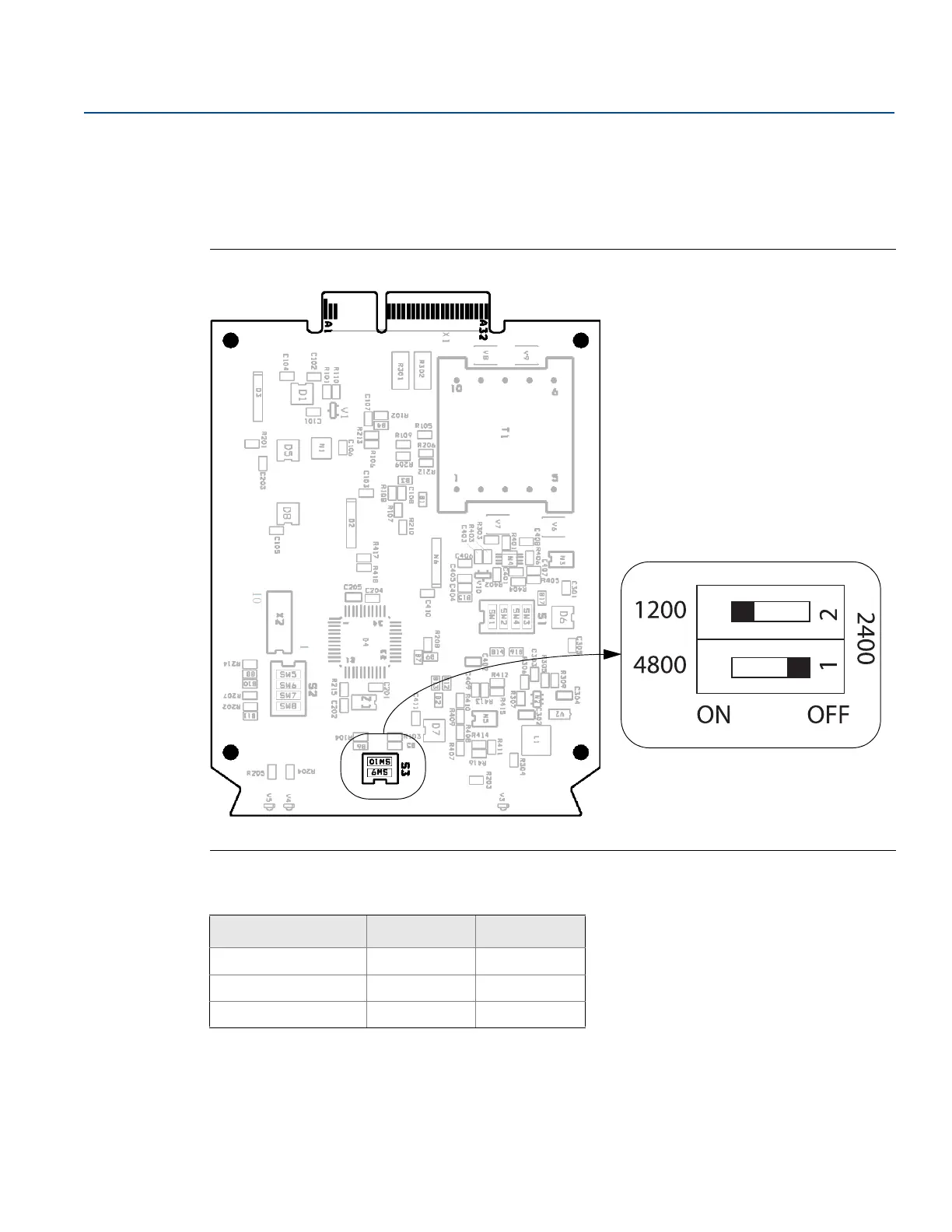

Figure 6-10. Enraf Modem Card
Table 6-9. Configuration of switch S3 for Enraf modem
Baud Rate 1 2
1200
(1)
1. Standard setting
OFF ON
2400 OFF OFF
4800 ON OFF
S3
