Reference Manual
00809-0100-2460, Rev DE
Installation
October 2018
Installation
3.5.11 Wiring diagrams
The communication ports can be configured for various combinations of field device and host
communication (see Table 3-5 on page 31). In the standard configuration Port1 to Port 6 are connected
to field devices and Port 7 and Port 8 are used for host communication. See also Table 3-6 on page 34.

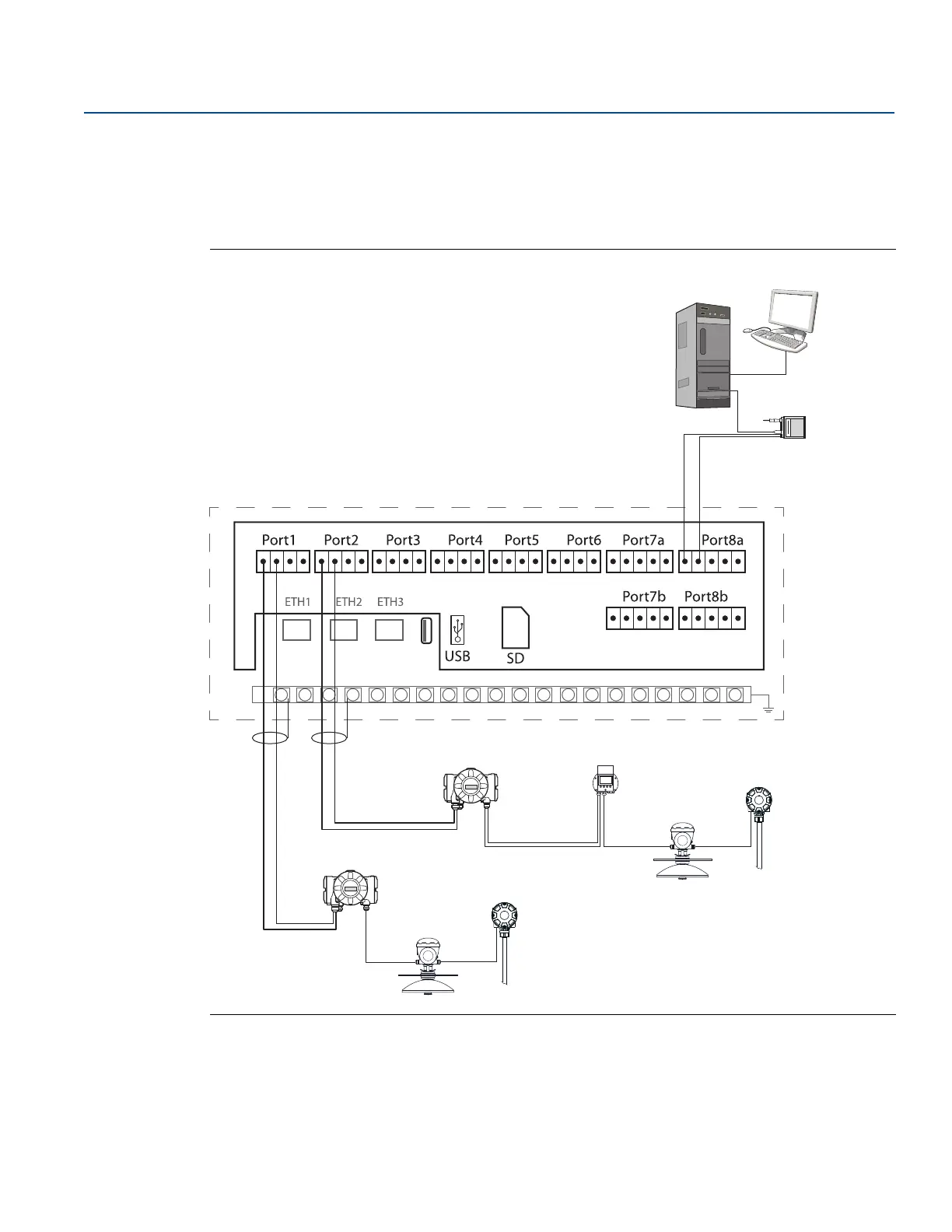

Figure 3-13. Rosemount 2460 System Hub Connected to Field Devices and TankMaster PC.
Note that the actual Port configuration may differ from the example above. See “Connecting to a
Rosemount 2460 System Hub” on page 30 for more information on configuration options for the Field
and Host ports. See also installation drawings for more information (“Drawings” on page 4).
Rosemount TankMaster PC
Rosemount 2410
Tank Hub
Rosemount 2230
Field Display
Rosemount 2240S
Temper atu re
Tran smitter
Rosemount 5900S
Radar Level Gauge
Rosemount 2240S
Temperature Transmitter
Rosemount 2180
Field Bus Modem
Rosemount 2460 terminal board
Rosemount 2410
Tank Hub
Rosemount 5900S
Radar Level Gauge
