Reference Manual
00809-0100-2460, Rev DE
Service and Troubleshooting
October 2018
Service and Troubleshooting
6.18 Configuration recovery
To recover the Rosemount
™
2460 System Hub database by loading a previously saved configuration:
1. Open the Web interface for the Rosemount 2460 System Hub (see “Using the web interface” on
page 114).
2. Ensure that Write Protection is disabled. The current status can be viewed in the Overview tab of the
Web Interface. See “Write protection” on page 143 for further information.

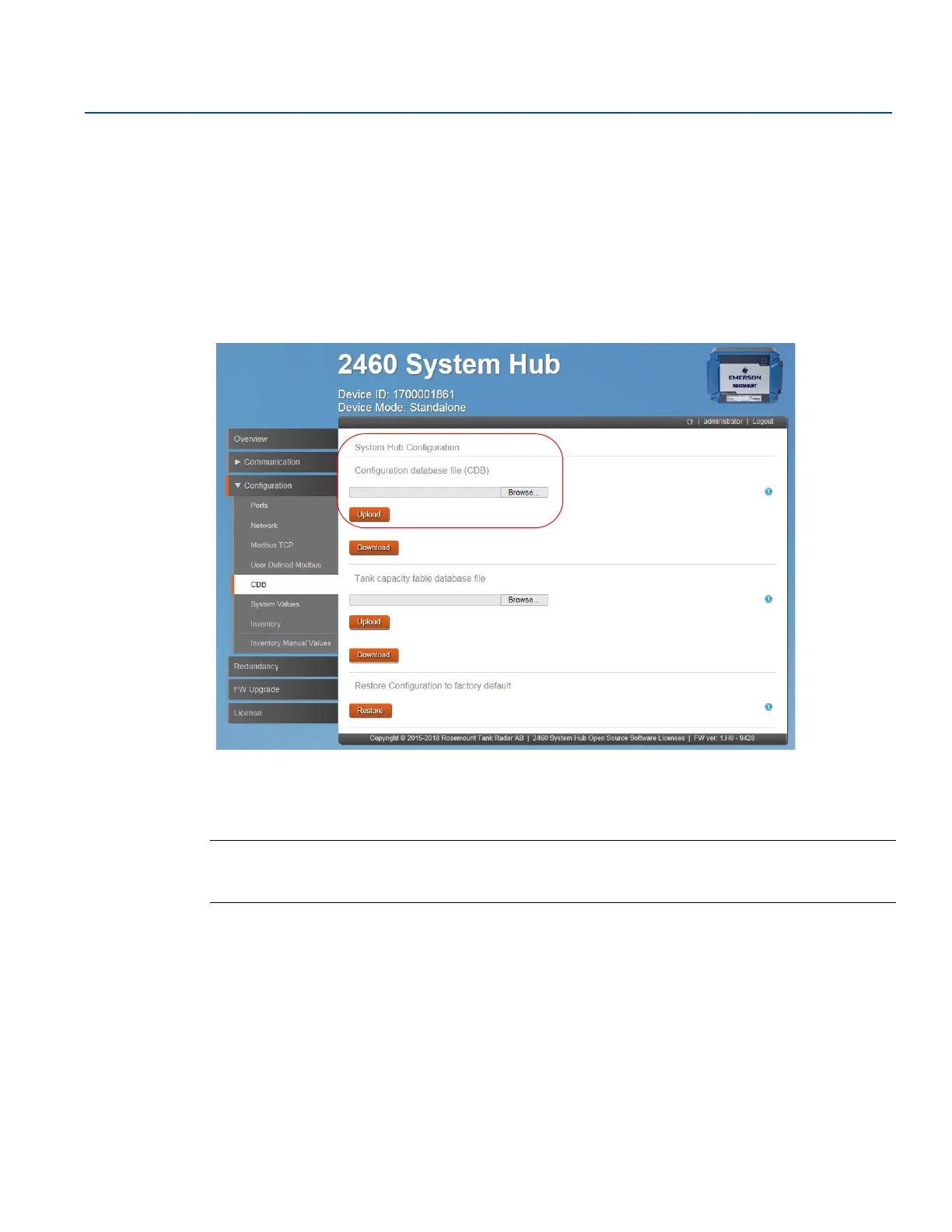

3. Select the Configuration > Configuration Data Base (CDB) option.
4. Click the Browse button and select a configuration database file.
5. Click the Upload button.
Note
CDB files from system hubs with firmware versions later than 1.A2 must not be uploaded to a Rosemount
2460 with firmware version 1.A2.
