39
Reference Manual
00809-0100-2460, Rev DE
Installation
October 2018
Installation
3.5.9 Ground lug

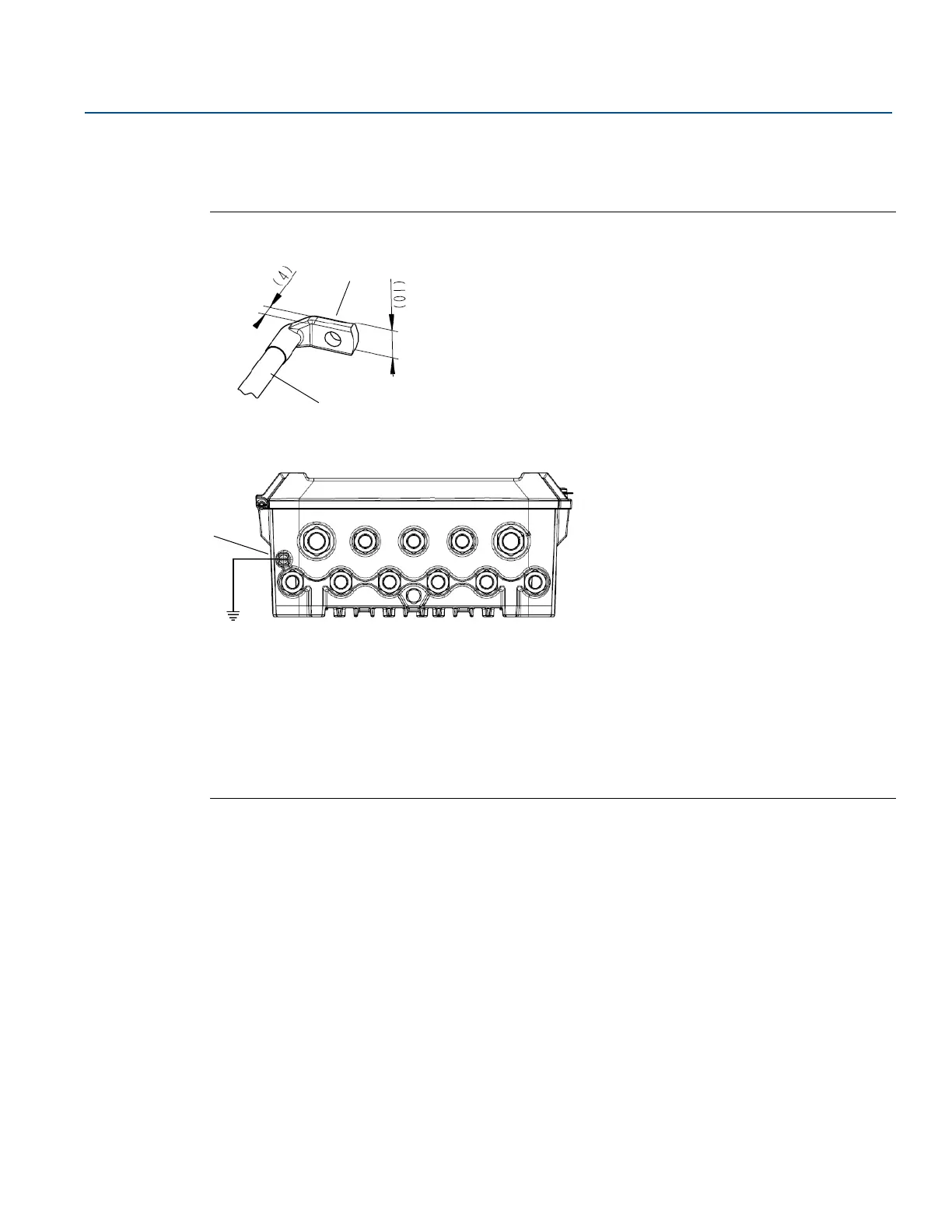

Figure 3-10. Ground Lug Dimensions
A. Ground lug
Cable lug thickness maximum 4 mm
Cable lug height maximum 10 mm
B. Cable size minimum 4 mm
2
or AWG 11
C. External ground screw M5
B
A
C
